VSIG4 ORF clone pFN21AE6331

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE6331

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE6331 Sequence (with vector) Restriction Map

Product ID

FHC09963

ORF Sequence

DNA sequence (1197 bp)
Protein sequence (399 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE6331

Symbol

VSIG4

Alias : CRIg, Z39IG

Description

V-set and immunoglobulin domain containing 4, transcript variant 1

Original Clone ID

oc96331

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1197 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 399 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS14383.1 2.4e-128 100.0 VSIG4 CCDS55435.1 2.6e-102 100.0 VSIG4 CCDS48132.1 8.1e-51 76.4 VSIG4 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

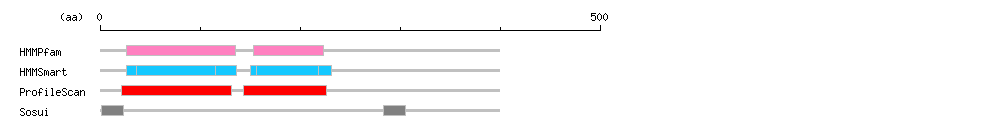

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR013106 26 135 PF07686 Immunoglobulin V-set IPR013098 153 223 PF07679 Immunoglobulin I-set HMMSmart IPR003599 26 136 SM00409 Immunoglobulin subtype IPR003596 36 115 SM00406 Immunoglobulin V-set IPR003599 150 231 SM00409 Immunoglobulin subtype IPR003598 156 218 SM00408 Immunoglobulin subtype 2 ProfileScan IPR007110 21 131 PS50835 Immunoglobulin-like IPR007110 143 226 PS50835 Immunoglobulin-like
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 1 MGILLGLLLLGHLTVDTYGRPIL 23 SECONDARY 23 2 283 PVFAIILIISLCCMVVFTMAYIM 305 PRIMARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_009199 399 300353 100.0 100.0 NP_001171759 321 300353 100.0 80.5 NP_001244332 347 300353 100.0 80.2 NP_001093901 305 300353 76.4 100.0 NP_001171760 227 300353 70.7 80.5 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE6331 Download

>KIEE6331  1197 bp
ATGGGGATCTTACTGGGCCTGCTACTCCTGGGGCACCTAACAGTGGACACTTATGGCCGT
CCCATCCTGGAAGTGCCAGAGAGTGTAACAGGACCTTGGAAAGGGGATGTGAATCTTCCC
TGCACCTATGACCCCCTGCAAGGCTACACCCAAGTCTTGGTGAAGTGGCTGGTACAACGT
GGCTCAGACCCTGTCACCATCTTTCTACGTGACTCTTCTGGAGACCATATCCAGCAGGCA
AAGTACCAGGGCCGCCTGCATGTGAGCCACAAGGTTCCAGGAGATGTATCCCTCCAATTG
AGCACCCTGGAGATGGATGACCGGAGCCACTACACGTGTGAAGTCACCTGGCAGACTCCT
GATGGCAACCAAGTCGTGAGAGATAAGATTACTGAGCTCCGTGTCCAGAAACTCTCTGTC
TCCAAGCCCACAGTGACAACTGGCAGCGGTTATGGCTTCACGGTGCCCCAGGGAATGAGG
ATTAGCCTTCAATGCCAGGCTCGGGGTTCTCCTCCCATCAGTTATATTTGGTATAAGCAA
CAGACTAATAACCAGGAACCCATCAAAGTAGCAACCCTAAGTACCTTACTCTTCAAGCCT
GCGGTGATAGCCGACTCAGGCTCCTATTTCTGCACTGCCAAGGGCCAGGTTGGCTCTGAG
CAGCACAGCGACATTGTGAAGTTTGTGGTCAAAGACTCCTCAAAGCTACTCAAGACCAAG
ACTGAGGCACCTACAACCATGACATACCCCTTGAAAGCAACATCTACAGTGAAGCAGTCC
TGGGACTGGACCACTGACATGGATGGCTACCTTGGAGAGACCAGTGCTGGGCCAGGAAAG
AGCCTGCCTGTCTTTGCCATCATCCTCATCATCTCCTTGTGCTGTATGGTGGTTTTTACC
ATGGCCTATATCATGCTCTGTCGGAAGACATCCCAACAAGAGCATGTCTACGAAGCAGCC
AGGGCACATGCCAGAGAGGCCAACGACTCTGGAGAAACCATGAGGGTGGCCATCTTCGCA
AGTGGCTGCTCCAGTGATGAGCCAACTTCCCAGAATCTGGGCAACAACTACTCTGATGAG
CCCTGCATAGGACAGGAGTACCAGATCATCGCCCAGATCAATGGCAACTACGCCCGCCTG
CTGGACACAGTTCCTCTGGATTATGAGTTTCTGGCCACTGAGGGCAAAAGTGTCTGT

ORF Protein

Cloned ORF protein sequence for pFN21AE6331 Download

>KIEE6331  399 aa
MGILLGLLLLGHLTVDTYGRPILEVPESVTGPWKGDVNLPCTYDPLQGYTQVLVKWLVQR
GSDPVTIFLRDSSGDHIQQAKYQGRLHVSHKVPGDVSLQLSTLEMDDRSHYTCEVTWQTP
DGNQVVRDKITELRVQKLSVSKPTVTTGSGYGFTVPQGMRISLQCQARGSPPISYIWYKQ
QTNNQEPIKVATLSTLLFKPAVIADSGSYFCTAKGQVGSEQHSDIVKFVVKDSSKLLKTK
TEAPTTMTYPLKATSTVKQSWDWTTDMDGYLGETSAGPGKSLPVFAIILIISLCCMVVFT
MAYIMLCRKTSQQEHVYEAARAHAREANDSGETMRVAIFASGCSSDEPTSQNLGNNYSDE
PCIGQEYQIIAQINGNYARLLDTVPLDYEFLATEGKSVC

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE6331 Download

>pFN21AE6331  5902 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGGGATCTTACTGGGCCTGCTACTCCTGGGGCA
CCTAACAGTGGACACTTATGGCCGTCCCATCCTGGAAGTGCCAGAGAGTGTAACAGGACC
TTGGAAAGGGGATGTGAATCTTCCCTGCACCTATGACCCCCTGCAAGGCTACACCCAAGT
CTTGGTGAAGTGGCTGGTACAACGTGGCTCAGACCCTGTCACCATCTTTCTACGTGACTC
TTCTGGAGACCATATCCAGCAGGCAAAGTACCAGGGCCGCCTGCATGTGAGCCACAAGGT
TCCAGGAGATGTATCCCTCCAATTGAGCACCCTGGAGATGGATGACCGGAGCCACTACAC
GTGTGAAGTCACCTGGCAGACTCCTGATGGCAACCAAGTCGTGAGAGATAAGATTACTGA
GCTCCGTGTCCAGAAACTCTCTGTCTCCAAGCCCACAGTGACAACTGGCAGCGGTTATGG
CTTCACGGTGCCCCAGGGAATGAGGATTAGCCTTCAATGCCAGGCTCGGGGTTCTCCTCC
CATCAGTTATATTTGGTATAAGCAACAGACTAATAACCAGGAACCCATCAAAGTAGCAAC
CCTAAGTACCTTACTCTTCAAGCCTGCGGTGATAGCCGACTCAGGCTCCTATTTCTGCAC
TGCCAAGGGCCAGGTTGGCTCTGAGCAGCACAGCGACATTGTGAAGTTTGTGGTCAAAGA
CTCCTCAAAGCTACTCAAGACCAAGACTGAGGCACCTACAACCATGACATACCCCTTGAA
AGCAACATCTACAGTGAAGCAGTCCTGGGACTGGACCACTGACATGGATGGCTACCTTGG
AGAGACCAGTGCTGGGCCAGGAAAGAGCCTGCCTGTCTTTGCCATCATCCTCATCATCTC
CTTGTGCTGTATGGTGGTTTTTACCATGGCCTATATCATGCTCTGTCGGAAGACATCCCA
ACAAGAGCATGTCTACGAAGCAGCCAGGGCACATGCCAGAGAGGCCAACGACTCTGGAGA
AACCATGAGGGTGGCCATCTTCGCAAGTGGCTGCTCCAGTGATGAGCCAACTTCCCAGAA
TCTGGGCAACAACTACTCTGATGAGCCCTGCATAGGACAGGAGTACCAGATCATCGCCCA
GATCAATGGCAACTACGCCCGCCTGCTGGACACAGTTCCTCTGGATTATGAGTTTCTGGC
CACTGAGGGCAAAAGTGTCTGTGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCT
AGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTG
AGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGA
GCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAA
AAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGC
AATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATG
TGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGG
ATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGG
GGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGC
ACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAAT
ATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAG
AGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTT
CCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGT
GCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGC
CCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTA
TCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGAC
TTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAA
TTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACT
ATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGC
CTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACG
ATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTA
GCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTG
CGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGG
TCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATC
TACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGT
GCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTAT
CAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGA
ACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGT
TTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGT
GGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGC
GCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAA
GCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCT
CCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTA
ACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTG
GTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGC
CTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTA
CCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTG
GTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTT
TGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGG
TCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAA
CGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGG
ATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAA
TTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGC
TGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATC
CACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGT
CCGGCGTAGAGGATCGAGATCT
