FBXL20 ORF clone pFN21AE3972

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE3972

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE3972 Sequence (with vector) Restriction Map

Product ID

FHC28464

ORF Sequence

DNA sequence (1308 bp)
Protein sequence (436 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE3972

Symbol

FBXL20

Alias : Fbl2, Fbl20

Description

F-box and leucine-rich repeat protein 20, transcript variant 1

Original Clone ID

cp93972

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1308 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 436 aa

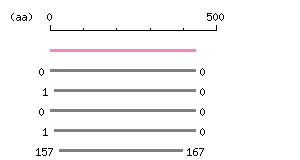

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS32640.1 9e-180 100.0 FBXL20 CCDS2658.1 3.7e-142 78.2 FBXL2 CCDS54116.1 7.5e-115 92.7 FBXL20 CCDS54560.1 6.8e-70 65.6 FBXL2 CCDS47678.1 1e-29 29.8 FBXL13 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR001810 28 66 PF00646 F-box domain HMMSmart IPR001810 28 68 SM00256 F-box domain IPR006553 90 115 SM00367 Leucine-rich repeat IPR006553 116 141 SM00367 Leucine-rich repeat IPR006553 142 167 SM00367 Leucine-rich repeat IPR006553 168 193 SM00367 Leucine-rich repeat IPR006553 194 219 SM00367 Leucine-rich repeat IPR006553 220 245 SM00367 Leucine-rich repeat IPR006553 246 271 SM00367 Leucine-rich repeat IPR006553 272 297 SM00367 Leucine-rich repeat IPR006553 298 323 SM00367 Leucine-rich repeat IPR006553 324 349 SM00367 Leucine-rich repeat IPR006553 353 377 SM00367 Leucine-rich repeat IPR006553 378 403 SM00367 Leucine-rich repeat ProfileScan IPR001810 22 68 PS50181 F-box domain
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_116264 436 609086 100.0 100.0 XP_005257803 473 609086 100.0 96.8 NP_036289 423 605652 78.2 96.8 NP_001171835 404 609086 92.7 100.0 XP_005257804 441 609086 92.4 96.8 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE3972 Download

>KIEE3972  1308 bp
ATGAGGAGGGACGTGAACGGAGTGACCAAGAGCAGGTTTGAGATGTTCTCAAATAGTGAT
GAAGCTGTAATCAATAAAAAACTTCCCAAAGAACTCCTGTTACGGATATTTTCTTTTCTA
GATGTTGTTACCCTGTGCCGCTGTGCTCAGGTCTCCAGGGCCTGGAATGTTCTGGCTCTG
GATGGCAGTAACTGGCAGCGAATTGACCTATTTGATTTCCAGAGGGATATTGAGGGCCGA
GTAGTGGAGAATATTTCAAAACGATGTGGGGGCTTTTTACGAAAGTTAAGTCTTCGTGGA
TGTCTTGGAGTGGGAGACAATGCATTAAGAACCTTTGCACAAAACTGCAGGAACATTGAA
GTACTGAATCTAAATGGGTGTACAAAGACAACAGACGCTACATGTACTAGCCTTAGCAAG
TTCTGTTCCAAACTCAGGCACCTTGACTTGGCTTCCTGTACATCAATAACAAACATGTCT
CTAAAAGCTCTGAGTGAGGGATGTCCACTGTTGGAGCAGTTGAACATTTCCTGGTGTGAC
CAAGTAACCAAGGATGGCATTCAAGCACTAGTGAGGGGCTGTGGGGGTCTCAAGGCCTTA
TTCTTAAAAGGCTGCACGCAGCTAGAAGATGAAGCTCTCAAGTACATAGGTGCACACTGC
CCTGAACTGGTGACTTTGAACTTGCAGACTTGCTTGCAAATCACAGATGAAGGTCTCATT
ACTATATGCAGAGGGTGCCATAAGTTACAATCCCTTTGTGCCTCTGGCTGCTCCAACATC
ACAGATGCCATCCTGAATGCTCTAGGTCAGAACTGCCCACGGCTTAGAATATTGGAAGTG
GCAAGATGTTCTCAATTAACAGATGTGGGCTTTACCACTCTAGCCAGGAATTGCCATGAA
CTTGAAAAGATGGACCTGGAAGAGTGTGTTCAGATAACAGATAGCACATTAATCCAACTT
TCTATACACTGTCCTCGACTTCAAGTATTGAGTCTGTCTCACTGTGAGCTGATCACAGAT
GATGGAATTCGTCACCTGGGGAATGGGGCCTGCGCCCATGACCAGCTGGAGGTGATTGAG
CTGGACAACTGCCCACTAATCACAGATGCATCCCTGGAGCACTTGAAGAGCTGTCATAGC
CTTGAGCGGATAGAACTCTATGACTGCCAGCAAATCACACGGGCTGGAATCAAGAGACTC
AGGACCCATTTACCCAATATTAAAGTCCACGCCTACTTCGCACCTGTCACTCCACCCCCA
TCAGTAGGGGGCAGCAGACAGCGCTTCTGCAGATGCTGCATCATCCTA

ORF Protein

Cloned ORF protein sequence for pFN21AE3972 Download

>KIEE3972  436 aa
MRRDVNGVTKSRFEMFSNSDEAVINKKLPKELLLRIFSFLDVVTLCRCAQVSRAWNVLAL
DGSNWQRIDLFDFQRDIEGRVVENISKRCGGFLRKLSLRGCLGVGDNALRTFAQNCRNIE
VLNLNGCTKTTDATCTSLSKFCSKLRHLDLASCTSITNMSLKALSEGCPLLEQLNISWCD
QVTKDGIQALVRGCGGLKALFLKGCTQLEDEALKYIGAHCPELVTLNLQTCLQITDEGLI
TICRGCHKLQSLCASGCSNITDAILNALGQNCPRLRILEVARCSQLTDVGFTTLARNCHE
LEKMDLEECVQITDSTLIQLSIHCPRLQVLSLSHCELITDDGIRHLGNGACAHDQLEVIE
LDNCPLITDASLEHLKSCHSLERIELYDCQQITRAGIKRLRTHLPNIKVHAYFAPVTPPP
SVGGSRQRFCRCCIIL

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE3972 Download

>pFN21AE3972  6013 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGGAGGGACGTGAACGGAGTGACCAAGAGCAG
GTTTGAGATGTTCTCAAATAGTGATGAAGCTGTAATCAATAAAAAACTTCCCAAAGAACT
CCTGTTACGGATATTTTCTTTTCTAGATGTTGTTACCCTGTGCCGCTGTGCTCAGGTCTC
CAGGGCCTGGAATGTTCTGGCTCTGGATGGCAGTAACTGGCAGCGAATTGACCTATTTGA
TTTCCAGAGGGATATTGAGGGCCGAGTAGTGGAGAATATTTCAAAACGATGTGGGGGCTT
TTTACGAAAGTTAAGTCTTCGTGGATGTCTTGGAGTGGGAGACAATGCATTAAGAACCTT
TGCACAAAACTGCAGGAACATTGAAGTACTGAATCTAAATGGGTGTACAAAGACAACAGA
CGCTACATGTACTAGCCTTAGCAAGTTCTGTTCCAAACTCAGGCACCTTGACTTGGCTTC
CTGTACATCAATAACAAACATGTCTCTAAAAGCTCTGAGTGAGGGATGTCCACTGTTGGA
GCAGTTGAACATTTCCTGGTGTGACCAAGTAACCAAGGATGGCATTCAAGCACTAGTGAG
GGGCTGTGGGGGTCTCAAGGCCTTATTCTTAAAAGGCTGCACGCAGCTAGAAGATGAAGC
TCTCAAGTACATAGGTGCACACTGCCCTGAACTGGTGACTTTGAACTTGCAGACTTGCTT
GCAAATCACAGATGAAGGTCTCATTACTATATGCAGAGGGTGCCATAAGTTACAATCCCT
TTGTGCCTCTGGCTGCTCCAACATCACAGATGCCATCCTGAATGCTCTAGGTCAGAACTG
CCCACGGCTTAGAATATTGGAAGTGGCAAGATGTTCTCAATTAACAGATGTGGGCTTTAC
CACTCTAGCCAGGAATTGCCATGAACTTGAAAAGATGGACCTGGAAGAGTGTGTTCAGAT
AACAGATAGCACATTAATCCAACTTTCTATACACTGTCCTCGACTTCAAGTATTGAGTCT
GTCTCACTGTGAGCTGATCACAGATGATGGAATTCGTCACCTGGGGAATGGGGCCTGCGC
CCATGACCAGCTGGAGGTGATTGAGCTGGACAACTGCCCACTAATCACAGATGCATCCCT
GGAGCACTTGAAGAGCTGTCATAGCCTTGAGCGGATAGAACTCTATGACTGCCAGCAAAT
CACACGGGCTGGAATCAAGAGACTCAGGACCCATTTACCCAATATTAAAGTCCACGCCTA
CTTCGCACCTGTCACTCCACCCCCATCAGTAGGGGGCAGCAGACAGCGCTTCTGCAGATG
CTGCATCATCCTAGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCTAGAGTCGAC
CTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTG
CTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGAGCAGACATG
ATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTT
ATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAA
GTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTT
TTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGGATCCTCTTT
GCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGGGGTCAGCAC
CGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGG
GGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCG
CTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGT
ATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTT
GCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTG
GGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAA
CGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATT
GACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAG
TACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGT
GCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACTATCGGAGGA
CCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGT
TGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTA
GCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGG
CAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCC
CTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGT
ATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACG
GGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTG
ATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTATCAGCTCACT
CAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAG
CAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATA
GGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACC
CGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTG
TTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGC
TTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGG
GCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTC
TTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGA
TTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACG
GCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAA
AAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTG
TTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTTTGATCTTTT
CTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGAT
TATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAACGCACGCTG
GATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGGATTAAGTGG
GGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAATTTATCAGG
CGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGCTGCCGTGAT
CGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATCCACTTACTG
TCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGTCCGGCGTAG
AGGATCGAGATCT
