EFEMP2 ORF clone pFN21AB6642

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AB6642

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB6642 Sequence (with vector) Restriction Map

Product ID

FHC08500

Flexi Clone PID

FXC08500

ORF Sequence

DNA sequence (1329 bp)
Protein sequence (443 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB528373]

Gene

KIBB6642

Symbol

EFEMP2

Alias : ARCL1B, FBLN4, MBP1, UPH1

Description

EGF containing fibulin-like extracellular matrix protein 2, transcript variant 1

Original Clone ID

cs01242

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1329 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 443 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS8116.1 8.1e-118 99.8 EFEMP2 CCDS1857.1 8.2e-53 50.4 EFEMP1 CCDS9898.1 2e-52 50.1 FBLN5 CCDS8103.1 2.7e-19 38.3 LTBP3 CCDS44647.1 2.7e-19 38.3 LTBP3 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

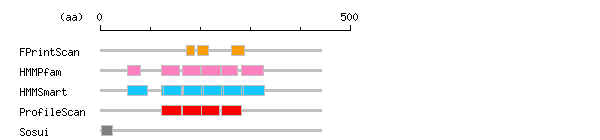

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR001491 173 189 PR00907 Thrombomodulin IPR001491 194 217 PR00907 Thrombomodulin IPR001491 263 288 PR00907 Thrombomodulin HMMPfam IPR013091 54 81 PF07645 EGF calcium-binding IPR013091 123 159 PF07645 EGF calcium-binding IPR013091 164 201 PF07645 EGF calcium-binding IPR013091 203 241 PF07645 EGF calcium-binding IPR013091 243 274 PF07645 EGF calcium-binding IPR013091 283 327 PF07645 EGF calcium-binding HMMSmart IPR001881 54 94 SM00179 EGF-like calcium-binding IPR001881 123 163 SM00179 EGF-like calcium-binding IPR006210 126 163 SM00181 Epidermal growth factor-like IPR001881 164 202 SM00179 EGF-like calcium-binding IPR006210 167 202 SM00181 Epidermal growth factor-like IPR001881 203 242 SM00179 EGF-like calcium-binding IPR006210 206 242 SM00181 Epidermal growth factor-like IPR001881 243 282 SM00179 EGF-like calcium-binding IPR006210 246 282 SM00181 Epidermal growth factor-like IPR001881 283 328 SM00179 EGF-like calcium-binding IPR006210 286 328 SM00181 Epidermal growth factor-like ProfileScan IPR000742 123 163 PS50026 Epidermal growth factor-like IPR000742 164 202 PS50026 Epidermal growth factor-like IPR000742 203 238 PS50026 Epidermal growth factor-like IPR000742 243 282 PS50026 Epidermal growth factor-like
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 3 PCASCLPGSLLLWALLLLLLGS 24 PRIMARY 22
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_058634 443 604633,614437 99.8 100.0 NP_001034438 493 126600,601548 50.4 93.7 NP_001034437 493 126600,601548 50.4 93.7 NP_006320 448 219100,604580,608895,614434 50.1 98.4 XP_005267324 465 219100,604580,608895,614434 50.2 97.3 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB6642 Download

>KIBB6642  1329 bp
ATGCTCCCCTGCGCCTCCTGCCTACCCGGGTCTCTACTGCTCTGGGCGCTGCTACTGTTG
CTCTTGGGATCAGCTTCTCCTCAGGATTCTGAAGAGCCCGACAGCTACACGGAATGCACA
GATGGCTATGAGTGGGACCCAGACAGCCAGCACTGCCGGGATGTCAACGAGTGTCTGACC
ATCCCTGAGGCCTGCAAGGGGGAAATGAAGTGCATCAACCACTACGGGGGCTACTTGTGC
CTGCCCCGCTCCGCTGCCGTCATCAACGACCTACACGGCGAGGGACCCCCGCCACCAGTG
CCTCCCGCTCAACACCCCAACCCCTGCCCACCAGGCTATGAGCCCGACGATCAGGACAGC
TGTGTGGATGTGGACGAGTGTGCCCAGGCCCTGCACGACTGTCGCCCCAGCCAGGACTGC
CATAACTTGCCTGGCTCCTATCAGTGCACCTGCCCTGATGGTTACCGCAAGATCGGGCCC
GAGTGTGTGGACATAGACGAGTGCCGCTACCGCTACTGCCAGCACCGCTGCGTGAACCTG
CCTGGCTCCTTCCGCTGCCAGTGCGAGCCGGGCTTCCAGCTGGGGCCTAACAACCGCTCC
TGTGTTGATGTGAACGAGTGTGACATGGGGGCCCCATGCGAGCAGCGCTGCTTCAACTCC
TATGGGACCTTCCTGTGTCGCTGCCACCAGGGCTATGAGCTGCATCGGGATGGCTTCTCC
TGCAGTGATATTGATGAGTGTAGCTACTCCAGCTACCTCTGTCAGTACCGCTGCGTCAAC
GAGCCAGGCCGTTTCTCCTGCCACTGCCCACAGGGTTACCAGCTGCTGGCCACACGCCTC
TGCCAAGACATTGATGAGTGTGAGTCTGGTGCGCACCAGTGCTCCGAGGCCCAAACCTGT
GTCAACTTCCATGGGGGCTACCGCTGCGTGGACACCAACCGCTGCGTGGAGCCCTACATC
CAGGTCTCTGAGAACCGCTGTCTCTGCCCGGCCTCCAACCCTCTATGTCGAGAGCAGCCT
TCATCCATTGTGCACCGCTACATGACCATCACCTCGGAGCGGAGCGTGCCCGCTGACGTG
TTCCAGATCCAGGCGACCTCCGTCTACCCCGGTGCCTACAATGCCTTTCAGATCCGTGCT
GGAAACTCGCAGGGGGACTTTTACATTAGGCAAATCAACAACGTCAGCGCCATGCTGGTC
CTCGCCCGGCCGGTGACGGGCCCCCGGGAGTACGTGCTGGACCTGGAGATGGTCACCATG
AATTCCCTCATGAGCTACCGGGCCAGCTCTGTACTGAGGCTCACCGTCTTTGTAGGGGCC
TACACCTTC

ORF Protein

Cloned ORF protein sequence for pFN21AB6642 Download

>KIBB6642  443 aa
MLPCASCLPGSLLLWALLLLLLGSASPQDSEEPDSYTECTDGYEWDPDSQHCRDVNECLT
IPEACKGEMKCINHYGGYLCLPRSAAVINDLHGEGPPPPVPPAQHPNPCPPGYEPDDQDS
CVDVDECAQALHDCRPSQDCHNLPGSYQCTCPDGYRKIGPECVDIDECRYRYCQHRCVNL
PGSFRCQCEPGFQLGPNNRSCVDVNECDMGAPCEQRCFNSYGTFLCRCHQGYELHRDGFS
CSDIDECSYSSYLCQYRCVNEPGRFSCHCPQGYQLLATRLCQDIDECESGAHQCSEAQTC
VNFHGGYRCVDTNRCVEPYIQVSENRCLCPASNPLCREQPSSIVHRYMTITSERSVPADV
FQIQATSVYPGAYNAFQIRAGNSQGDFYIRQINNVSAMLVLARPVTGPREYVLDLEMVTM
NSLMSYRASSVLRLTVFVGAYTF

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB6642 Download

>pFN21AB6642  6034 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGCTCCCCTGCGCCTCCTGCCTACCCGGGTCTCT
ACTGCTCTGGGCGCTGCTACTGTTGCTCTTGGGATCAGCTTCTCCTCAGGATTCTGAAGA
GCCCGACAGCTACACGGAATGCACAGATGGCTATGAGTGGGACCCAGACAGCCAGCACTG
CCGGGATGTCAACGAGTGTCTGACCATCCCTGAGGCCTGCAAGGGGGAAATGAAGTGCAT
CAACCACTACGGGGGCTACTTGTGCCTGCCCCGCTCCGCTGCCGTCATCAACGACCTACA
CGGCGAGGGACCCCCGCCACCAGTGCCTCCCGCTCAACACCCCAACCCCTGCCCACCAGG
CTATGAGCCCGACGATCAGGACAGCTGTGTGGATGTGGACGAGTGTGCCCAGGCCCTGCA
CGACTGTCGCCCCAGCCAGGACTGCCATAACTTGCCTGGCTCCTATCAGTGCACCTGCCC
TGATGGTTACCGCAAGATCGGGCCCGAGTGTGTGGACATAGACGAGTGCCGCTACCGCTA
CTGCCAGCACCGCTGCGTGAACCTGCCTGGCTCCTTCCGCTGCCAGTGCGAGCCGGGCTT
CCAGCTGGGGCCTAACAACCGCTCCTGTGTTGATGTGAACGAGTGTGACATGGGGGCCCC
ATGCGAGCAGCGCTGCTTCAACTCCTATGGGACCTTCCTGTGTCGCTGCCACCAGGGCTA
TGAGCTGCATCGGGATGGCTTCTCCTGCAGTGATATTGATGAGTGTAGCTACTCCAGCTA
CCTCTGTCAGTACCGCTGCGTCAACGAGCCAGGCCGTTTCTCCTGCCACTGCCCACAGGG
TTACCAGCTGCTGGCCACACGCCTCTGCCAAGACATTGATGAGTGTGAGTCTGGTGCGCA
CCAGTGCTCCGAGGCCCAAACCTGTGTCAACTTCCATGGGGGCTACCGCTGCGTGGACAC
CAACCGCTGCGTGGAGCCCTACATCCAGGTCTCTGAGAACCGCTGTCTCTGCCCGGCCTC
CAACCCTCTATGTCGAGAGCAGCCTTCATCCATTGTGCACCGCTACATGACCATCACCTC
GGAGCGGAGCGTGCCCGCTGACGTGTTCCAGATCCAGGCGACCTCCGTCTACCCCGGTGC
CTACAATGCCTTTCAGATCCGTGCTGGAAACTCGCAGGGGGACTTTTACATTAGGCAAAT
CAACAACGTCAGCGCCATGCTGGTCCTCGCCCGGCCGGTGACGGGCCCCCGGGAGTACGT
GCTGGACCTGGAGATGGTCACCATGAATTCCCTCATGAGCTACCGGGCCAGCTCTGTACT
GAGGCTCACCGTCTTTGTAGGGGCCTACACCTTCGTTTAAACGAATTCGGGCTCGGTACC
CGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCC
GAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGG
CGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGA
ATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACC
ATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTT
CAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATC
GAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTG
ACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAG
ACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAA
ATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATAT
TGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCG
GCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAA
GATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTT
GAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGT
GGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTAT
TCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATG
ACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTA
CTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGAT
CATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAG
CGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAA
CTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCA
GGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCC
GGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGT
ATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATC
GCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACG
CCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATA
ACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCG
CGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCT
CAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAA
GCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTC
TCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGT
AGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCG
CCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGG
CAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCT
TGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGC
TGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCG
CTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTC
AAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTT
AAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCG
GAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGG
CAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTC
ATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTT
TTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGA
TTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCG
GCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
