MEF2B ORF clone pFN21AE1199

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE1199

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE1199 Sequence (with vector) Restriction Map

Product ID

FHC10992

ORF Sequence

DNA sequence (1104 bp)
Protein sequence (368 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB590548]

Gene

KIEE1199

Symbol

MEF2B

Alias : RSRFR2

Description

myocyte enhancer factor 2B

Original Clone ID

cs99023

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1104 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 368 aa

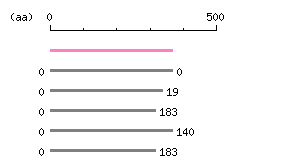

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS46024.1 2.1e-58 100.0 MEF2B CCDS12394.1 5e-39 80.1 MEF2B CCDS53978.1 4.6e-11 41.0 MEF2A CCDS81920.1 5.8e-11 38.6 MEF2A CCDS45362.1 6.5e-11 41.1 MEF2A The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR002100 3 23 PR00404 Transcription factor IPR002100 23 38 PR00404 Transcription factor IPR002100 38 59 PR00404 Transcription factor HMMPfam IPR002100 10 59 PF00319 Transcription factor HMMSmart IPR002100 1 60 SM00432 Transcription factor ProfileScan IPR002100 1 61 PS50066 Transcription factor
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001139257 368 600661 100.0 100.0 NP_001124398 497 600660,608320 41.0 85.6 XP_005254972 497 600660,608320 41.0 85.6 NP_001165365 497 600660,608320 41.0 85.6 XP_011519885 505 600660,608320 38.6 99.5 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE1199 Download

>KIEE1199  1104 bp
ATGGGGAGGAAAAAAATCCAGATCTCCCGCATCCTGGACCAAAGGAATCGGCAGGTGACG
TTCACCAAGCGGAAGTTCGGGCTGATGAAGAAGGCCTATGAGCTGAGCGTGCTCTGTGAC
TGTGAGATAGCCCTCATCATCTTCAACAGCGCCAACCGCCTCTTCCAGTATGCCAGCACG
GACATGGACCGTGTGCTGCTGAAGTACACAGAGTACAGCGAGCCCCACGAGAGCCGCACC
AACACTGACATCCTCGAGACGCTGAAGCGGAGGGGCATTGGCCTCGATGGGCCAGAGCTG
GAGCCGGATGAAGGGCCTGAGGAGCCAGGAGAGAAGTTTCGGAGGCTGGCAGGCGAAGGG
GGTGATCCGGCCTTGCCCCGACCCCGGCTGTATCCTGCAGCTCCTGCTATGCCCAGCCCA
GATGTGGTATACGGGGCCTTACCGCCACCAGGCTGTGACCCCAGTGGGCTTGGGGAAGCA
CTGCCCGCCCAGAGCCGCCCATCTCCCTTCCGACCAGCAGCCCCCAAAGCCGGGCCCCCA
GGCCTGGTGCACCCTCTCTTCTCACCAAGCCACCTCACCAGCAAGACACCACCCCCACTG
TACCTGCCGACGGAAGGGCGGAGGTCAGACCTGCCTGGTGGCCTGGCTGGGCCCCGAGGG
GGACTAAACACCTCCAGAAGCCTCTACAGTGGCCTGCAGAACCCCTGCTCCACTGCAACT
CCCGGACCCCCACTGGGGAGCTTCCCCTTCCTCCCCGGAGGCCCCCCAGAATATGGCCTG
GGAGACCCTCCACCGCCCCCTGGCTTGTTGCAGCCCCCCACCCTGGCCCCCTGGCAGCCC
TCGAGGGGTGATGGGCCCCCCGCCGTGTCCTCCCAGCCCAGTGGGGGCCGAAGCCTGGGC
GAGGAGGGTCCCCCAACCCGCGGCGCCTCCCCGCCGACCCCCCCAGTCAGCATCAAGTCT
GAGCGCCTCTCTCCGGCCCCCGGGGGCCCCGGCGACTTTCCTAAGACCTTCCCCTATCCC
TTGCTCCTCGCCCGGTCCCTGGCAGAGCCTCTGCGGCCTGGGCCCGCCCTGCGCCGGCTG
CCCTTGGCCGACGGCTGGCCCCGG

ORF Protein

Cloned ORF protein sequence for pFN21AE1199 Download

>KIEE1199  368 aa
MGRKKIQISRILDQRNRQVTFTKRKFGLMKKAYELSVLCDCEIALIIFNSANRLFQYAST
DMDRVLLKYTEYSEPHESRTNTDILETLKRRGIGLDGPELEPDEGPEEPGEKFRRLAGEG
GDPALPRPRLYPAAPAMPSPDVVYGALPPPGCDPSGLGEALPAQSRPSPFRPAAPKAGPP
GLVHPLFSPSHLTSKTPPPLYLPTEGRRSDLPGGLAGPRGGLNTSRSLYSGLQNPCSTAT
PGPPLGSFPFLPGGPPEYGLGDPPPPPGLLQPPTLAPWQPSRGDGPPAVSSQPSGGRSLG
EEGPPTRGASPPTPPVSIKSERLSPAPGGPGDFPKTFPYPLLLARSLAEPLRPGPALRRL
PLADGWPR

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE1199 Download

>pFN21AE1199  5809 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGGGAGGAAAAAAATCCAGATCTCCCGCATCCT
GGACCAAAGGAATCGGCAGGTGACGTTCACCAAGCGGAAGTTCGGGCTGATGAAGAAGGC
CTATGAGCTGAGCGTGCTCTGTGACTGTGAGATAGCCCTCATCATCTTCAACAGCGCCAA
CCGCCTCTTCCAGTATGCCAGCACGGACATGGACCGTGTGCTGCTGAAGTACACAGAGTA
CAGCGAGCCCCACGAGAGCCGCACCAACACTGACATCCTCGAGACGCTGAAGCGGAGGGG
CATTGGCCTCGATGGGCCAGAGCTGGAGCCGGATGAAGGGCCTGAGGAGCCAGGAGAGAA
GTTTCGGAGGCTGGCAGGCGAAGGGGGTGATCCGGCCTTGCCCCGACCCCGGCTGTATCC
TGCAGCTCCTGCTATGCCCAGCCCAGATGTGGTATACGGGGCCTTACCGCCACCAGGCTG
TGACCCCAGTGGGCTTGGGGAAGCACTGCCCGCCCAGAGCCGCCCATCTCCCTTCCGACC
AGCAGCCCCCAAAGCCGGGCCCCCAGGCCTGGTGCACCCTCTCTTCTCACCAAGCCACCT
CACCAGCAAGACACCACCCCCACTGTACCTGCCGACGGAAGGGCGGAGGTCAGACCTGCC
TGGTGGCCTGGCTGGGCCCCGAGGGGGACTAAACACCTCCAGAAGCCTCTACAGTGGCCT
GCAGAACCCCTGCTCCACTGCAACTCCCGGACCCCCACTGGGGAGCTTCCCCTTCCTCCC
CGGAGGCCCCCCAGAATATGGCCTGGGAGACCCTCCACCGCCCCCTGGCTTGTTGCAGCC
CCCCACCCTGGCCCCCTGGCAGCCCTCGAGGGGTGATGGGCCCCCCGCCGTGTCCTCCCA
GCCCAGTGGGGGCCGAAGCCTGGGCGAGGAGGGTCCCCCAACCCGCGGCGCCTCCCCGCC
GACCCCCCCAGTCAGCATCAAGTCTGAGCGCCTCTCTCCGGCCCCCGGGGGCCCCGGCGA
CTTTCCTAAGACCTTCCCCTATCCCTTGCTCCTCGCCCGGTCCCTGGCAGAGCCTCTGCG
GCCTGGGCCCGCCCTGCGCCGGCTGCCCTTGGCCGACGGCTGGCCCCGGGTTTAAACGAA
TTCGGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGG
CTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAG
CATAACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGA
CAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATT
GCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCAT
TTTATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTAC
AAATGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAG
ATAGCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTAC
GTAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATT
TGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAA
ATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTT
ATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAA
GTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAAC
AGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTC
AAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGT
CGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCAT
CTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAAC
ACTGCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTG
CACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCC
ATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAA
CTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAG
GCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCT
GATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGAT
GGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAA
CGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATG
ACCGACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCA
CAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGA
ACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATC
ACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGG
CGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGAT
ACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGT
ATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTC
AGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACG
ACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCG
GTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTG
GTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCG
GCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCA
GAAAAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGA
ACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGA
TCCTTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGA
AACCATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTG
GTTGCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGT
GGTTTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTG
CGTACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATA
AACCGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
