SpecieshumanProduct IDFXC03901Cloning SiteSgfI-PmeIGeneKIEE0988SymbolZAP70
Alias : ADMIO2, IMD48, SRK, STCD, STD, TZK, ZAP-70Descriptionzeta-chain (TCR) associated protein kinase 70kDa, transcript variant 1Original Clone IDcp01488
Length: 1857 bp
Restriction map A
Restriction map B
Genomic Structure
-
Length: 619 aa
Result of homology search against CCDS protein database (
FASTA output,
Multiple alignment)
Entry Exp ID% symbol CCDS33254.1 1.1e-134 100.0 ZAP70 CCDS47992.1 1.3e-72 56.2 SYK CCDS33255.1 2.9e-65 100.0 ZAP70 CCDS6688.1 6.4e-31 54.4 SYK CCDS6381.1 6.1e-19 38.2 PTK2
The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

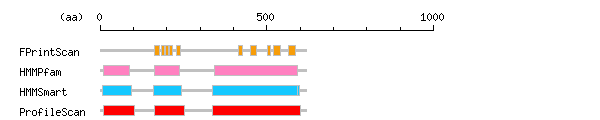

Result of motif / domain search (InterProScan and SOSUI)
[ zoom out (x2) ]
Result of InterProScan
Search method interpro_ID From To Entry Definition FPrintScan IPR000980 163 177 PR00401 SH2 motif IPR000980 184 194 PR00401 SH2 motif IPR000980 195 206 PR00401 SH2 motif IPR000980 207 217 PR00401 SH2 motif IPR000980 228 242 PR00401 SH2 motif IPR001245 414 427 PR00109 Serine-threonine/tyrosine-protein kinase IPR001245 451 469 PR00109 Serine-threonine/tyrosine-protein kinase IPR001245 501 511 PR00109 Serine-threonine/tyrosine-protein kinase IPR001245 520 542 PR00109 Serine-threonine/tyrosine-protein kinase IPR001245 564 586 PR00109 Serine-threonine/tyrosine-protein kinase HMMPfam IPR000980 10 87 PF00017 SH2 motif IPR000980 163 238 PF00017 SH2 motif IPR001245 342 591 PF07714 Serine-threonine/tyrosine-protein kinase HMMSmart IPR000980 8 93 SM00252 SH2 motif IPR000980 161 245 SM00252 SH2 motif IPR002290 338 597 SM00220 Serine/threonine-protein kinase domain IPR020635 338 593 SM00219 Tyrosine-protein kinase ProfileScan IPR000980 10 102 PS50001 SH2 motif IPR000980 163 254 PS50001 SH2 motif IPR000719 338 600 PS50011 Protein kinase
Result of homology search against disease genes in OMIM database(FASTA output,
Multiple alignment)
H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001070 619 176947,269840,617006 100.0 100.0 XP_016860356 742 176947,269840,617006 100.0 100.0 XP_016860357 736 176947,269840,617006 99.0 100.0 XP_016860358 730 176947,269840,617006 100.0 93.5 XP_016860359 707 176947,269840,617006 100.0 93.4 Inquiries or Suggestions ?
Send a message to flexiclone AT kazusagt.comCloned ORF Nucleotide sequence for pF1KE0988 Download>KIEE0988 1857 bp ATGCCAGACCCCGCGGCGCACCTGCCCTTCTTCTACGGCAGCATCTCGCGTGCCGAGGCC GAGGAGCACCTGAAGCTGGCGGGCATGGCGGACGGGCTCTTCCTGCTGCGCCAGTGCCTG CGCTCGCTGGGCGGCTATGTGCTGTCGCTCGTGCACGATGTGCGCTTCCACCACTTTCCC ATCGAGCGCCAGCTCAACGGCACCTACGCCATTGCCGGCGGCAAAGCGCACTGTGGACCG GCAGAGCTCTGCGAGTTCTACTCGCGCGACCCCGACGGGCTGCCCTGCAACCTGCGCAAG CCGTGCAACCGGCCGTCGGGCCTCGAGCCGCAGCCGGGGGTCTTCGACTGCCTGCGAGAC GCCATGGTGCGTGACTACGTGCGCCAGACGTGGAAGCTGGAGGGCGAGGCCCTGGAGCAG GCCATCATCAGCCAGGCCCCGCAGGTGGAGAAGCTCATTGCTACGACGGCCCACGAGCGG ATGCCCTGGTACCACAGCAGCCTGACGCGTGAGGAGGCCGAGCGCAAACTTTACTCTGGG GCGCAGACCGACGGCAAGTTCCTGCTGAGGCCGCGGAAGGAGCAGGGCACATACGCCCTG TCCCTCATCTATGGGAAGACGGTGTACCACTACCTCATCAGCCAAGACAAGGCGGGCAAG TACTGCATTCCCGAGGGCACCAAGTTTGACACGCTCTGGCAGCTGGTGGAGTATCTGAAG CTGAAGGCGGACGGGCTCATCTACTGCCTGAAGGAGGCCTGCCCCAACAGCAGTGCCAGC AACGCCTCAGGGGCTGCTGCTCCCACACTCCCAGCCCACCCATCCACGTTGACTCATCCT CAGAGACGAATCGACACCCTCAACTCAGATGGATACACCCCTGAGCCAGCACGCATAACG TCCCCAGACAAACCGCGGCCGATGCCCATGGACACGAGCGTGTATGAGAGCCCCTACAGC GACCCAGAGGAGCTCAAGGACAAGAAGCTCTTCCTGAAGCGCGATAACCTCCTCATAGCT GACATTGAACTTGGCTGCGGCAACTTTGGCTCAGTGCGCCAGGGCGTGTACCGCATGCGC AAGAAGCAGATCGACGTGGCCATCAAGGTGCTGAAGCAGGGCACGGAGAAGGCAGACACG GAAGAGATGATGCGCGAGGCGCAGATCATGCACCAGCTGGACAACCCCTACATCGTGCGG CTCATTGGCGTCTGCCAGGCCGAGGCCCTCATGCTGGTCATGGAGATGGCTGGGGGCGGG CCGCTGCACAAGTTCCTGGTCGGCAAGAGGGAGGAGATCCCTGTGAGCAATGTGGCCGAG CTGCTGCACCAGGTGTCCATGGGGATGAAGTACCTGGAGGAGAAGAACTTTGTGCACCGT GACCTGGCGGCCCGCAACGTCCTGCTGGTTAACCGGCACTACGCCAAGATCAGCGACTTT GGCCTCTCCAAAGCACTGGGTGCCGACGACAGCTACTACACTGCCCGCTCAGCAGGGAAG TGGCCGCTCAAGTGGTACGCACCCGAATGCATCAACTTCCGCAAGTTCTCCAGCCGCAGC GATGTCTGGAGCTATGGGGTCACCATGTGGGAGGCCTTGTCCTACGGCCAGAAGCCCTAC AAGAAGATGAAAGGGCCGGAGGTCATGGCCTTCATCGAGCAGGGCAAGCGGATGGAGTGC CCACCAGAGTGTCCACCCGAACTGTACGCACTCATGAGTGACTGCTGGATCTACAAGTGG GAGGATCGCCCCGACTTCCTGACCGTGGAGCAGCGCATGCGAGCCTGTTACTACAGCCTG GCCAGCAAGGTGGAAGGGCCCCCAGGCAGCACACAGAAGGCTGAGGCTGCCTGTGCC
Cloned ORF protein sequence for pF1KE0988 Download>KIEE0988 619 aa MPDPAAHLPFFYGSISRAEAEEHLKLAGMADGLFLLRQCLRSLGGYVLSLVHDVRFHHFP IERQLNGTYAIAGGKAHCGPAELCEFYSRDPDGLPCNLRKPCNRPSGLEPQPGVFDCLRD AMVRDYVRQTWKLEGEALEQAIISQAPQVEKLIATTAHERMPWYHSSLTREEAERKLYSG AQTDGKFLLRPRKEQGTYALSLIYGKTVYHYLISQDKAGKYCIPEGTKFDTLWQLVEYLK LKADGLIYCLKEACPNSSASNASGAAAPTLPAHPSTLTHPQRRIDTLNSDGYTPEPARIT SPDKPRPMPMDTSVYESPYSDPEELKDKKLFLKRDNLLIADIELGCGNFGSVRQGVYRMR KKQIDVAIKVLKQGTEKADTEEMMREAQIMHQLDNPYIVRLIGVCQAEALMLVMEMAGGG PLHKFLVGKREEIPVSNVAELLHQVSMGMKYLEEKNFVHRDLAARNVLLVNRHYAKISDF GLSKALGADDSYYTARSAGKWPLKWYAPECINFRKFSSRSDVWSYGVTMWEALSYGQKPY KKMKGPEVMAFIEQGKRMECPPECPPELYALMSDCWIYKWEDRPDFLTVEQRMRACYYSL ASKVEGPPGSTQKAEAACA
Nucleotide Sequence (with vector) for pF1KE0988 Download>pF1KE0988 4970 bp GGATCTCGATCCCGCGAAATTAATACGACTCACTATAGGGGAATTGTGAGCGGATAACAA TTCCCCACTAGTAATAATTTTCTTTAACTTTAGTAAGGAGCGATCGCCATGCCAGACCCC GCGGCGCACCTGCCCTTCTTCTACGGCAGCATCTCGCGTGCCGAGGCCGAGGAGCACCTG AAGCTGGCGGGCATGGCGGACGGGCTCTTCCTGCTGCGCCAGTGCCTGCGCTCGCTGGGC GGCTATGTGCTGTCGCTCGTGCACGATGTGCGCTTCCACCACTTTCCCATCGAGCGCCAG CTCAACGGCACCTACGCCATTGCCGGCGGCAAAGCGCACTGTGGACCGGCAGAGCTCTGC GAGTTCTACTCGCGCGACCCCGACGGGCTGCCCTGCAACCTGCGCAAGCCGTGCAACCGG CCGTCGGGCCTCGAGCCGCAGCCGGGGGTCTTCGACTGCCTGCGAGACGCCATGGTGCGT GACTACGTGCGCCAGACGTGGAAGCTGGAGGGCGAGGCCCTGGAGCAGGCCATCATCAGC CAGGCCCCGCAGGTGGAGAAGCTCATTGCTACGACGGCCCACGAGCGGATGCCCTGGTAC CACAGCAGCCTGACGCGTGAGGAGGCCGAGCGCAAACTTTACTCTGGGGCGCAGACCGAC GGCAAGTTCCTGCTGAGGCCGCGGAAGGAGCAGGGCACATACGCCCTGTCCCTCATCTAT GGGAAGACGGTGTACCACTACCTCATCAGCCAAGACAAGGCGGGCAAGTACTGCATTCCC GAGGGCACCAAGTTTGACACGCTCTGGCAGCTGGTGGAGTATCTGAAGCTGAAGGCGGAC GGGCTCATCTACTGCCTGAAGGAGGCCTGCCCCAACAGCAGTGCCAGCAACGCCTCAGGG GCTGCTGCTCCCACACTCCCAGCCCACCCATCCACGTTGACTCATCCTCAGAGACGAATC GACACCCTCAACTCAGATGGATACACCCCTGAGCCAGCACGCATAACGTCCCCAGACAAA CCGCGGCCGATGCCCATGGACACGAGCGTGTATGAGAGCCCCTACAGCGACCCAGAGGAG CTCAAGGACAAGAAGCTCTTCCTGAAGCGCGATAACCTCCTCATAGCTGACATTGAACTT GGCTGCGGCAACTTTGGCTCAGTGCGCCAGGGCGTGTACCGCATGCGCAAGAAGCAGATC GACGTGGCCATCAAGGTGCTGAAGCAGGGCACGGAGAAGGCAGACACGGAAGAGATGATG CGCGAGGCGCAGATCATGCACCAGCTGGACAACCCCTACATCGTGCGGCTCATTGGCGTC TGCCAGGCCGAGGCCCTCATGCTGGTCATGGAGATGGCTGGGGGCGGGCCGCTGCACAAG TTCCTGGTCGGCAAGAGGGAGGAGATCCCTGTGAGCAATGTGGCCGAGCTGCTGCACCAG GTGTCCATGGGGATGAAGTACCTGGAGGAGAAGAACTTTGTGCACCGTGACCTGGCGGCC CGCAACGTCCTGCTGGTTAACCGGCACTACGCCAAGATCAGCGACTTTGGCCTCTCCAAA GCACTGGGTGCCGACGACAGCTACTACACTGCCCGCTCAGCAGGGAAGTGGCCGCTCAAG TGGTACGCACCCGAATGCATCAACTTCCGCAAGTTCTCCAGCCGCAGCGATGTCTGGAGC TATGGGGTCACCATGTGGGAGGCCTTGTCCTACGGCCAGAAGCCCTACAAGAAGATGAAA GGGCCGGAGGTCATGGCCTTCATCGAGCAGGGCAAGCGGATGGAGTGCCCACCAGAGTGT CCACCCGAACTGTACGCACTCATGAGTGACTGCTGGATCTACAAGTGGGAGGATCGCCCC GACTTCCTGACCGTGGAGCAGCGCATGCGAGCCTGTTACTACAGCCTGGCCAGCAAGGTG GAAGGGCCCCCAGGCAGCACACAGAAGGCTGAGGCTGCCTGTGCCGTTTAAACGAATTCG AGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGC TAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATA ACCCCTTGGGGCCTCTAAACGGGTCTTGAGGGGTTTTTTGCTGAAAGGAGGAACTATATC CGGTTCGCTTGCTGTCCATAAAACCGCCCAGTCTAGCTATCGCCATGTAAGCCCACTGCA AGCTACCTGCTTTCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGAC ATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTGTTCCGCTTCCTTTA GCAGCCCTTGCGCCCTGAGTGCTTGCGGCAGCGTGAGCTTCAAAAGAATTGCCAGCTGGG GCGCCCTCTGGTAAGGTTGGGAAGCCCTGCAAAGTAAACTGGATGGCTTTCTTGCCGCCA AGGATCTGATGGCGCAGGGGATCAAGATCTGATCAAGAGACAGGATGACGGTCGTTTCGC ATGCTTGAACAAGATGGATTGCACGCAGGTTCTCCGGCCGCTTGGGTGGAGAGGCTATTC GGCTATGACTGGGCACAACAGACAATCGGCTGCTCTGATGCCGCCGTGTTCCGGCTGTCA GCGCAGGGGCGCCCGGTTCTTTTTGTCAAGACCGACCTGTCCGGTGCCCTGAATGAACTG CAGGACGAGGCAGCGCGGCTATCGTGGCTGGCCACGACGGGCGTTCCTTGCGCAGCTGTG CTCGACGTTGTCACTGAAGCGGGAAGGGACTGGCTGCTATTGGGCGAAGTGCCGGGGCAG GATCTCCTGTCATCTCACCTTGCTCCTGCCGAGAAAGTATCCATCATGGCTGATGCAATG CGGCGGCTGCATACGCTTGATCCGGCTACCTGCCCATTCGACCACCAAGCGAAACATCGC ATCGAGCGAGCACGCACTCGGATGGAAGCCGGTCTTGTCGATCAGGATGATCTGGACGAA GAGCATCAGGGGCTCGCGCCAGCCGAACTGTTCGCCAGGCTCAAGGCGCGTATGCCGGAT GGTGAGGATCTCGTCGTGACTCATGGCGATGCCTGCTTGCCGAATATCATGGTGGAAAAT GGCCGCTTTTCTGGATTCATCGACTGTGGCCGGCTGGGTGTGGCGGACCGCTATCAGGAC ATAGCGTTGGCTACCCGTGATATTGCTGAAGAGCTTGGCGGCGAATGGGCTGACCGCTTC CTCGTGCTTTACGGTATCGCCGCTCCCGATTCGCAGCGCATCGCCTTCTATCGCCTTCTT GACGAGTTCTTCTGAGCGGGACTCTGGGGTTCGAAATGACCGACCAAGCGACGCCCAACC GGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGG AAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCT GGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCA GAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCT CGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTC GGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGT TCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATC CGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGC CACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTG GTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCC AGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAG CGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGA TCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGAT TTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATAC AGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTC AGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGT TAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTG TCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGT AAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGA TGCGTCCGGCGTAGAGGATCGAGATCTTTTCAGCCTGATACAGATTAAATCAGAACGCAG AAGCGGTCTGATAAAACAGAATTTGCCTGGCGGCAGTAGCGCGGTGGTCCCACCTGACCC CATGCCGAACTCAGAAGTGAAACGCCGTAGCGCCGATGGTAGTGTGGGGTCTCCCCATGC GAGAGTAGGGAACTGCCAGGCATCAAATAAAACGAAAGGCTCAGTCGAAAGACTGGGCCT TTCGTTTTATCTGTTGTTTGTCGGTGAACGCTCTCCTGAGTAGGACAAATCCGCCGGGAG CGGATTTGAACGTTGCGAAGCAACGGCCCGGAGGGTGGCGGGCAGGACGCCCGCCATAAA CTGCCAGGCATCAAATTAAGCAGAAGGCCATCCTGACGGATGGCCTTTTTGCGTTTCTAC AAACTCTTTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCAT
