BAK1 ORF clone FHC08191

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone FHC08191

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB6945 Sequence (with vector) Restriction Map

Product ID

FHC08191

ORF Sequence

DNA sequence (633 bp)
Protein sequence (211 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB590158]

Gene

KIBB6945

Symbol

BAK1

Alias : BAK, BAK-LIKE, BCL2L7, CDN1

Description

BCL2-antagonist/killer 1

Original Clone ID

cs01545

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 633 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 211 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS4781.1 4.1e-88 100.0 BAK1 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

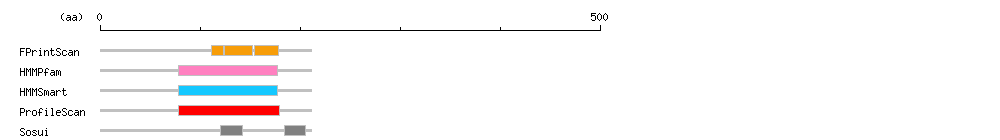

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR000712 111 123 PR01862 Apoptosis regulator IPR000712 124 152 PR01862 Apoptosis regulator IPR000712 154 178 PR01862 Apoptosis regulator HMMPfam IPR000712 78 177 PF00452 Apoptosis regulator HMMSmart IPR000712 78 177 SM00337 Apoptosis regulator ProfileScan IPR002475 78 179 PS50062 Apoptosis regulator
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 120 ESGINWGRVVALLGFGYRLALHV 142 SECONDARY 23 2 184 GNGPILNVLVVLGVVLLGQFVV 205 PRIMARY 22
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001179 211 600516 100.0 100.0 XP_011513081 211 600516 100.0 100.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB6945 Download

>KIBB6945  633 bp
ATGGCTTCGGGGCAAGGCCCAGGTCCTCCCAGGCAGGAGTGCGGAGAGCCTGCCCTGCCC
TCTGCTTCTGAGGAGCAGGTAGCCCAGGACACAGAGGAGGTTTTCCGCAGCTACGTTTTT
TACCGCCATCAGCAGGAACAGGAGGCTGAAGGGGTGGCTGCCCCTGCCGACCCAGAGATG
GTCACCTTACCTCTGCAACCTAGCAGCACCATGGGGCAGGTGGGACGGCAGCTCGCCATC
ATCGGGGACGACATCAACCGACGCTATGACTCAGAGTTCCAGACCATGTTGCAGCACCTG
CAGCCCACGGCAGAGAATGCCTATGAGTACTTCACCAAGATTGCCACCAGCCTGTTTGAG
AGTGGCATCAATTGGGGCCGTGTGGTGGCTCTTCTGGGCTTCGGCTACCGTCTGGCCCTA
CACGTCTACCAGCATGGCCTGACTGGCTTCCTAGGCCAGGTGACCCGCTTCGTGGTCGAC
TTCATGCTGCATCACTGCATTGCCCGGTGGATTGCACAGAGGGGTGGCTGGGTGGCAGCC
CTGAACTTGGGCAATGGTCCCATCCTGAACGTGCTGGTGGTTCTGGGTGTGGTTCTGTTG
GGCCAGTTTGTGGTACGAAGATTCTTCAAATCA

ORF Protein

Cloned ORF protein sequence for pFN21AB6945 Download

>KIBB6945  211 aa
MASGQGPGPPRQECGEPALPSASEEQVAQDTEEVFRSYVFYRHQQEQEAEGVAAPADPEM
VTLPLQPSSTMGQVGRQLAIIGDDINRRYDSEFQTMLQHLQPTAENAYEYFTKIATSLFE
SGINWGRVVALLGFGYRLALHVYQHGLTGFLGQVTRFVVDFMLHHCIARWIAQRGGWVAA
LNLGNGPILNVLVVLGVVLLGQFVVRRFFKS

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB6945 Download

>pFN21AB6945  5338 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCTTCGGGGCAAGGCCCAGGTCCTCCCAGGCA
GGAGTGCGGAGAGCCTGCCCTGCCCTCTGCTTCTGAGGAGCAGGTAGCCCAGGACACAGA
GGAGGTTTTCCGCAGCTACGTTTTTTACCGCCATCAGCAGGAACAGGAGGCTGAAGGGGT
GGCTGCCCCTGCCGACCCAGAGATGGTCACCTTACCTCTGCAACCTAGCAGCACCATGGG
GCAGGTGGGACGGCAGCTCGCCATCATCGGGGACGACATCAACCGACGCTATGACTCAGA
GTTCCAGACCATGTTGCAGCACCTGCAGCCCACGGCAGAGAATGCCTATGAGTACTTCAC
CAAGATTGCCACCAGCCTGTTTGAGAGTGGCATCAATTGGGGCCGTGTGGTGGCTCTTCT
GGGCTTCGGCTACCGTCTGGCCCTACACGTCTACCAGCATGGCCTGACTGGCTTCCTAGG
CCAGGTGACCCGCTTCGTGGTCGACTTCATGCTGCATCACTGCATTGCCCGGTGGATTGC
ACAGAGGGGTGGCTGGGTGGCAGCCCTGAACTTGGGCAATGGTCCCATCCTGAACGTGCT
GGTGGTTCTGGGTGTGGTTCTGTTGGGCCAGTTTGTGGTACGAAGATTCTTCAAATCAGT
TTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAG
CTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGC
AATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGAT
GAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGT
GATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAAT
TGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAA
AACCTCTACAAATGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCC
CTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTG
GCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGA
ACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAA
CCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGT
GTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACG
CTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTG
GATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATG
AGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAG
CAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACA
GAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATG
AGTGATAACACTGCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACC
GCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTG
AATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACG
TTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGAC
TGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGG
TTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTG
GGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACT
ATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAA
TTCGAAATGACCGACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATAC
GGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAA
AGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTG
ACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAA
GATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGC
TTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCAC
GCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAAC
CCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGG
TAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGT
ATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGA
CAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCT
CTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGA
TTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACG
CTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCT
TCACCTAGATCCTTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTG
GGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTG
TACCCTCTGGTTGCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGT
TTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTT
TTAGCGGTGCGTACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCC
ATCGAGATAAACCGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
