SLC10A6 ORF clone pFN21AE6388

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE6388

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE6388 Sequence (with vector) Restriction Map

Product ID

FHC21981

ORF Sequence

DNA sequence (1131 bp)
Protein sequence (377 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE6388

Symbol

SLC10A6

Alias : SOAT

Description

solute carrier family 10 (sodium/bile acid cotransporter), member 6

Original Clone ID

oc96388

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1131 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 377 aa

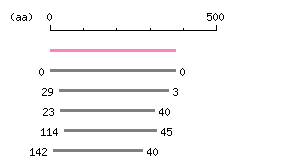

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS3614.1 2.4e-171 99.7 SLC10A6 CCDS9506.1 8.3e-72 47.5 SLC10A2 CCDS9797.1 2.3e-44 39.4 SLC10A1 CCDS3482.1 1.9e-43 38.1 SLC10A4 CCDS48195.1 3.4e-25 31.7 SLC10A3 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

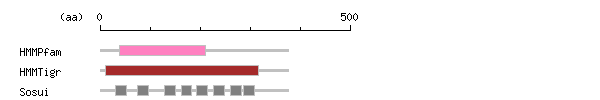

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR002657 39 211 PF01758 Bile acid:sodium symporter HMMTigr IPR004710 10 316 TIGR00841 Bile acid transporter
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 30 LELVFTVVSTVMMGLLMFSLGCS 52 PRIMARY 23 2 75 QFGLMPFTAYLLAISFSLKPVQA 97 PRIMARY 23 3 128 SMTTCSTVAALGMMPLCIYLYTW 150 SECONDARY 23 4 162 YQNIGITLVCLTIPVAFGVYV 182 PRIMARY 21 5 193 ILKIGAVVGGVLLLVVAVAGVVL 215 PRIMARY 23 6 226 LLTISFIFPLIGHVTGFLLALFT 248 SECONDARY 23 7 260 LETGAQNIQMCITMLQLSFTAEH 282 SECONDARY 23 8 286 MLSFPLAYGLFQLIDGFLIVAAY 308 SECONDARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_932069 377 613366 99.7 100.0 NP_000443 348 601295,613291 47.5 86.5 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE6388 Download

>KIEE6388  1131 bp
ATGAGAGCCAATTGTTCCAGCAGCTCAGCCTGCCCTGCCAACAGTTCAGAGGAGGAGCTG
CCAGTGGGACTGGAGGTGCATGGAAACCTGGAGCTCGTTTTCACAGTGGTGTCCACTGTG
ATGATGGGGCTGCTCATGTTCTCTTTGGGATGTTCCGTGGAGATCCGGAAGCTGTGGTCG
CACATCAGGAGACCCTGGGGCATTGCTGTGGGACTGCTCTGCCAGTTTGGGCTCATGCCT
TTTACAGCTTATCTCCTGGCCATTAGCTTTTCTCTGAAGCCAGTCCAAGCTATTGCTGTT
CTCATCATGGGCTGCTGCCCGGGGGGCACCATCTCTAACGTTTTCACCTTCTGGGTTGAT
GGAGATATGGATCTCAGCATCAGTATGACAACCTGTTCCACCGTGGCCGCCCTGGGAATG
ATGCCACTCTGCATTTATCTCTACACCTGGTCCTGGAGTCTTCAGCAGAATCTCACCATT
CCTTATCAGAACATAGGAATTACCCTTGTGTGCCTGACCATTCCTGTGGCCTTTGGTGTC
TATGTGAATTACAGATGGCCAAAACAATCCAAAATCATTCTCAAGATTGGGGCCGTTGTT
GGTGGGGTCCTCCTTCTGGTGGTCGCAGTTGCTGGTGTGGTCCTGGCGAAAGGATCTTGG
AATTCAGACATCACCCTTCTGACCATCAGTTTCATCTTTCCTTTGATTGGCCATGTCACG
GGTTTTCTGCTGGCACTTTTTACCCACCAGTCTTGGCAAAGGTGCAGGACAATTTCCTTA
GAAACTGGAGCTCAGAATATTCAGATGTGCATCACCATGCTCCAGTTATCTTTCACTGCT
GAGCACTTGGTCCAGATGTTGAGTTTCCCACTGGCCTATGGACTCTTCCAGCTGATAGAT
GGATTTCTTATTGTTGCAGCATATCAGACGTACAAGAGGAGATTGAAGAACAAACATGGA
AAAAAGAACTCAGGTTGCACAGAAGTCTGCCATACGAGGAAATCGACTTCTTCCAGAGAG
ACCAATGCCTTCTTGGAGGTGAATGAAGAAGGTGCCATCACTCCTGGGCCACCAGGGCCA
ATGGATTGCCACAGGGCTCTCGAGCCAGTTGGCCACATCACTTCATGTGAA

ORF Protein

Cloned ORF protein sequence for pFN21AE6388 Download

>KIEE6388  377 aa
MRANCSSSSACPANSSEEELPVGLEVHGNLELVFTVVSTVMMGLLMFSLGCSVEIRKLWS
HIRRPWGIAVGLLCQFGLMPFTAYLLAISFSLKPVQAIAVLIMGCCPGGTISNVFTFWVD
GDMDLSISMTTCSTVAALGMMPLCIYLYTWSWSLQQNLTIPYQNIGITLVCLTIPVAFGV
YVNYRWPKQSKIILKIGAVVGGVLLLVVAVAGVVLAKGSWNSDITLLTISFIFPLIGHVT
GFLLALFTHQSWQRCRTISLETGAQNIQMCITMLQLSFTAEHLVQMLSFPLAYGLFQLID
GFLIVAAYQTYKRRLKNKHGKKNSGCTEVCHTRKSTSSRETNAFLEVNEEGAITPGPPGP
MDCHRALEPVGHITSCE

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE6388 Download

>pFN21AE6388  5836 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGAGCCAATTGTTCCAGCAGCTCAGCCTGCCC
TGCCAACAGTTCAGAGGAGGAGCTGCCAGTGGGACTGGAGGTGCATGGAAACCTGGAGCT
CGTTTTCACAGTGGTGTCCACTGTGATGATGGGGCTGCTCATGTTCTCTTTGGGATGTTC
CGTGGAGATCCGGAAGCTGTGGTCGCACATCAGGAGACCCTGGGGCATTGCTGTGGGACT
GCTCTGCCAGTTTGGGCTCATGCCTTTTACAGCTTATCTCCTGGCCATTAGCTTTTCTCT
GAAGCCAGTCCAAGCTATTGCTGTTCTCATCATGGGCTGCTGCCCGGGGGGCACCATCTC
TAACGTTTTCACCTTCTGGGTTGATGGAGATATGGATCTCAGCATCAGTATGACAACCTG
TTCCACCGTGGCCGCCCTGGGAATGATGCCACTCTGCATTTATCTCTACACCTGGTCCTG
GAGTCTTCAGCAGAATCTCACCATTCCTTATCAGAACATAGGAATTACCCTTGTGTGCCT
GACCATTCCTGTGGCCTTTGGTGTCTATGTGAATTACAGATGGCCAAAACAATCCAAAAT
CATTCTCAAGATTGGGGCCGTTGTTGGTGGGGTCCTCCTTCTGGTGGTCGCAGTTGCTGG
TGTGGTCCTGGCGAAAGGATCTTGGAATTCAGACATCACCCTTCTGACCATCAGTTTCAT
CTTTCCTTTGATTGGCCATGTCACGGGTTTTCTGCTGGCACTTTTTACCCACCAGTCTTG
GCAAAGGTGCAGGACAATTTCCTTAGAAACTGGAGCTCAGAATATTCAGATGTGCATCAC
CATGCTCCAGTTATCTTTCACTGCTGAGCACTTGGTCCAGATGTTGAGTTTCCCACTGGC
CTATGGACTCTTCCAGCTGATAGATGGATTTCTTATTGTTGCAGCATATCAGACGTACAA
GAGGAGATTGAAGAACAAACATGGAAAAAAGAACTCAGGTTGCACAGAAGTCTGCCATAC
GAGGAAATCGACTTCTTCCAGAGAGACCAATGCCTTCTTGGAGGTGAATGAAGAAGGTGC
CATCACTCCTGGGCCACCAGGGCCAATGGATTGCCACAGGGCTCTCGAGCCAGTTGGCCA
CATCACTTCATGTGAAGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCTAGAGTC
GACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGG
CTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGAGCAGAC
ATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGC
TTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAA
CAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATGTGGGAG
GTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGGATCCTC
TTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGGGGTCAG
CACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGCACTTTT
CGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTAT
CCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATG
AGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTT
TTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGA
GTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAA
GAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTATCCCGT
ATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTT
GAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGC
AGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACTATCGGA
GGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGAT
CGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCT
GTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCC
CGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCG
GCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGC
GGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACG
ACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCA
CTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTATCAGCTC
ACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGT
GAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCC
ATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAA
ACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTC
CTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGG
CGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGC
TGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATC
GTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACA
GGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACT
ACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCG
GAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTT
TTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTTTGATCT
TTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGA
GATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAACGCACG
CTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGGATTAAG
TGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAATTTATC
AGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGCTGCCGT
GATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATCCACTTA
CTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGTCCGGCG
TAGAGGATCGAGATCT
