Halotag ORF Clone pFN21AB6136

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB6136 Sequence (with vector) Restriction Map

Product ID

FHC03466

Flexi Clone PID

FXC03466

ORF Sequence

DNA sequence (1917 bp)
Protein sequence (639 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB527550]

Gene

KIBB6136

Symbol

PEX5

Alias : PBD2A, PBD2B, PTS1-BP, PTS1R, PXR1, RCDP5

Description

peroxisomal biogenesis factor 5, transcript variant 4

Original Clone ID

cs00736

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1917 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 639 aa

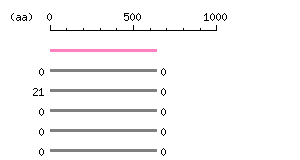

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS44823.1 0 100.0 PEX5 CCDS73433.1 0 100.0 PEX5 CCDS8576.1 0 98.7 PEX5 CCDS44822.1 8.6e-219 97.7 PEX5 CCDS44824.1 1.7e-140 94.2 PEX5 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR001440 489 521 PF00515 Tetratricopeptide TPR-1 IPR001440 524 555 PF00515 Tetratricopeptide TPR-1 HMMSmart IPR019734 369 402 SM00028 Tetratricopeptide repeat IPR019734 488 521 SM00028 Tetratricopeptide repeat IPR019734 522 555 SM00028 Tetratricopeptide repeat IPR019734 556 589 SM00028 Tetratricopeptide repeat ProfileScan IPR019734 335 368 PS50005 Tetratricopeptide repeat IPR013026 335 589 PS50293 Tetratricopeptide repeat-containing IPR019734 369 402 PS50005 Tetratricopeptide repeat IPR019734 488 521 PS50005 Tetratricopeptide repeat IPR019734 522 555 PS50005 Tetratricopeptide repeat IPR019734 556 589 PS50005 Tetratricopeptide repeat
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) XP_011519100 639 202370,214110,600414,616716 100.0 100.0 XP_011519099 639 202370,214110,600414,616716 100.0 100.0 XP_016875238 639 202370,214110,600414,616716 100.0 100.0 NP_001124497 639 202370,214110,600414,616716 100.0 100.0 NP_001124498 639 202370,214110,600414,616716 100.0 100.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB6136 Download

>KIBB6136  1917 bp
ATGGCAATGCGGGAGCTGGTGGAGGCCGAATGCGGGGGTGCCAACCCGCTCATGAAGCTC
GCCGGGCACTTCACCCAGGACAAGGCCCTTCGGCAGGAGGGATTGAGGCCTGGCCCCTGG
CCCCCCGGAGCCCCGGCCTCTGAGGCAGCCTCCAAGCCTTTGGGAGTAGCTTCTGAAGAT
GAGTTGGTGGCTGAATTCCTGCAGGACCAGAATGCACCCCTTGTGTCCCGTGCCCCTCAG
ACCTTCAAGATGGATGACCTCCTGGCTGAGATGCAGCAGATTGAGCAGTCAAACTTCCGC
CAGGCTCCCCAGAGAGCCCCTGGTGTGGCAGACTTGGCCTTGTCTGAGAACTGGGCCCAG
GAGTTTCTTGCAGCTGGAGATGCTGTGGATGTAACTCAGGATTATAATGAGACTGACTGG
TCCCAAGAATTCATCTCTGAAGTTACAGACCCCTTGTCTGTGTCCCCTGCCCGCTGGGCT
GAGGAATATTTGGAGCAATCAGAGGAGAAGCTGTGGCTGGGAGAACCTGAGGGAACAGCC
ACCGATCGCTGGTATGATGAATATCATCCTGAGGAGGATCTGCAGCACACGGCCAGTGAC
TTTGTGGCCAAAGTGGATGACCCCAAATTGGCTAATTCTGAGTTCCTGAAATTCGTGCGG
CAGATTGGCGAAGGGCAGGTGTCCCTGGAGTCCGGTGCAGGGTCGGGCCGAGCTCAGGCA
GAACAGTGGGCAGCAGAGTTTATACAGCAGCAGGGTACATCAGATGCCTGGGTTGACCAG
TTCACAAGACCAGTAAACACATCTGCCCTTGATATGGAGTTTGAACGAGCCAAGTCAGCT
ATAGAGTCTGATGTCGATTTCTGGGACAAGTTGCAGGCAGAGTTGGAGGAGATGGCAAAA
CGGGATGCTGAGGCCCACCCCTGGCTTTCTGACTATGATGACCTTACGTCAGCTACCTAT
GATAAGGGGTACCAGTTTGAGGAGGAGAACCCCTTGCGTGATCACCCTCAGCCTTTTGAA
GAAGGGCTGCGGCGCCTTCAGGAGGGGGACCTGCCAAATGCTGTGCTGCTTTTTGAGGCA
GCTGTGCAGCAGGATCCTAAGCACATGGAAGCTTGGCAGTATCTGGGTACCACCCAGGCA
GAGAATGAACAAGAACTATTAGCCATCAGTGCATTGCGGAGGTGTCTGGAGCTAAAGCCA
GATAACCAGACAGCACTGATGGCGCTGGCTGTGAGCTTCACCAACGAGTCCCTGCAGCGA
CAGGCCTGTGAAACCCTACGAGACTGGCTGCGGTACACACCAGCCTATGCCCATCTGGTG
ACACCTGCTGAAGAAGGGGCTGGTGGGGCAGGACTGGGCCCCAGCAAGCGTATCCTGGGA
TCTCTCTTGTCTGACTCCCTGTTTCTTGAAGTGAAAGAGCTCTTCCTGGCAGCTGTGCGG
CTGGACCCTACCTCCATTGACCCTGATGTGCAGTGTGGCTTGGGAGTCCTTTTCAACCTG
AGTGGGGAGTATGACAAGGCCGTGGACTGCTTCACAGCTGCCCTCAGCGTTCGTCCCAAT
GACTATTTGCTGTGGAATAAGCTAGGCGCCACCCTGGCCAATGGAAACCAGAGTGAAGAA
GCAGTAGCTGCGTACCGCCGGGCCCTCGAGCTCCAGCCTGGCTATATCCGGTCCCGCTAT
AACCTGGGCATCAGCTGCATCAACCTCGGGGCTCACCGGGAGGCTGTGGAGCACTTTCTG
GAGGCCCTGAACATGCAGAGGAAAAGCCGGGGCCCCCGGGGTGAAGGAGGTGCCATGTCG
GAGAACATCTGGAGCACCCTGCGTTTGGCATTGTCTATGTTAGGCCAGAGCGATGCCTAT
GGGGCAGCCGACGCGCGGGATCTGTCCACCCTCCTAACTATGTTTGGCCTGCCCCAG

ORF Protein

Cloned ORF protein sequence for pFN21AB6136 Download

>KIBB6136  639 aa
MAMRELVEAECGGANPLMKLAGHFTQDKALRQEGLRPGPWPPGAPASEAASKPLGVASED
ELVAEFLQDQNAPLVSRAPQTFKMDDLLAEMQQIEQSNFRQAPQRAPGVADLALSENWAQ
EFLAAGDAVDVTQDYNETDWSQEFISEVTDPLSVSPARWAEEYLEQSEEKLWLGEPEGTA
TDRWYDEYHPEEDLQHTASDFVAKVDDPKLANSEFLKFVRQIGEGQVSLESGAGSGRAQA
EQWAAEFIQQQGTSDAWVDQFTRPVNTSALDMEFERAKSAIESDVDFWDKLQAELEEMAK
RDAEAHPWLSDYDDLTSATYDKGYQFEEENPLRDHPQPFEEGLRRLQEGDLPNAVLLFEA
AVQQDPKHMEAWQYLGTTQAENEQELLAISALRRCLELKPDNQTALMALAVSFTNESLQR
QACETLRDWLRYTPAYAHLVTPAEEGAGGAGLGPSKRILGSLLSDSLFLEVKELFLAAVR
LDPTSIDPDVQCGLGVLFNLSGEYDKAVDCFTAALSVRPNDYLLWNKLGATLANGNQSEE
AVAAYRRALELQPGYIRSRYNLGISCINLGAHREAVEHFLEALNMQRKSRGPRGEGGAMS
ENIWSTLRLALSMLGQSDAYGAADARDLSTLLTMFGLPQ

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB6136 Download

>pFN21AB6136  6622 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCAATGCGGGAGCTGGTGGAGGCCGAATGCGG
GGGTGCCAACCCGCTCATGAAGCTCGCCGGGCACTTCACCCAGGACAAGGCCCTTCGGCA
GGAGGGATTGAGGCCTGGCCCCTGGCCCCCCGGAGCCCCGGCCTCTGAGGCAGCCTCCAA
GCCTTTGGGAGTAGCTTCTGAAGATGAGTTGGTGGCTGAATTCCTGCAGGACCAGAATGC
ACCCCTTGTGTCCCGTGCCCCTCAGACCTTCAAGATGGATGACCTCCTGGCTGAGATGCA
GCAGATTGAGCAGTCAAACTTCCGCCAGGCTCCCCAGAGAGCCCCTGGTGTGGCAGACTT
GGCCTTGTCTGAGAACTGGGCCCAGGAGTTTCTTGCAGCTGGAGATGCTGTGGATGTAAC
TCAGGATTATAATGAGACTGACTGGTCCCAAGAATTCATCTCTGAAGTTACAGACCCCTT
GTCTGTGTCCCCTGCCCGCTGGGCTGAGGAATATTTGGAGCAATCAGAGGAGAAGCTGTG
GCTGGGAGAACCTGAGGGAACAGCCACCGATCGCTGGTATGATGAATATCATCCTGAGGA
GGATCTGCAGCACACGGCCAGTGACTTTGTGGCCAAAGTGGATGACCCCAAATTGGCTAA
TTCTGAGTTCCTGAAATTCGTGCGGCAGATTGGCGAAGGGCAGGTGTCCCTGGAGTCCGG
TGCAGGGTCGGGCCGAGCTCAGGCAGAACAGTGGGCAGCAGAGTTTATACAGCAGCAGGG
TACATCAGATGCCTGGGTTGACCAGTTCACAAGACCAGTAAACACATCTGCCCTTGATAT
GGAGTTTGAACGAGCCAAGTCAGCTATAGAGTCTGATGTCGATTTCTGGGACAAGTTGCA
GGCAGAGTTGGAGGAGATGGCAAAACGGGATGCTGAGGCCCACCCCTGGCTTTCTGACTA
TGATGACCTTACGTCAGCTACCTATGATAAGGGGTACCAGTTTGAGGAGGAGAACCCCTT
GCGTGATCACCCTCAGCCTTTTGAAGAAGGGCTGCGGCGCCTTCAGGAGGGGGACCTGCC
AAATGCTGTGCTGCTTTTTGAGGCAGCTGTGCAGCAGGATCCTAAGCACATGGAAGCTTG
GCAGTATCTGGGTACCACCCAGGCAGAGAATGAACAAGAACTATTAGCCATCAGTGCATT
GCGGAGGTGTCTGGAGCTAAAGCCAGATAACCAGACAGCACTGATGGCGCTGGCTGTGAG
CTTCACCAACGAGTCCCTGCAGCGACAGGCCTGTGAAACCCTACGAGACTGGCTGCGGTA
CACACCAGCCTATGCCCATCTGGTGACACCTGCTGAAGAAGGGGCTGGTGGGGCAGGACT
GGGCCCCAGCAAGCGTATCCTGGGATCTCTCTTGTCTGACTCCCTGTTTCTTGAAGTGAA
AGAGCTCTTCCTGGCAGCTGTGCGGCTGGACCCTACCTCCATTGACCCTGATGTGCAGTG
TGGCTTGGGAGTCCTTTTCAACCTGAGTGGGGAGTATGACAAGGCCGTGGACTGCTTCAC
AGCTGCCCTCAGCGTTCGTCCCAATGACTATTTGCTGTGGAATAAGCTAGGCGCCACCCT
GGCCAATGGAAACCAGAGTGAAGAAGCAGTAGCTGCGTACCGCCGGGCCCTCGAGCTCCA
GCCTGGCTATATCCGGTCCCGCTATAACCTGGGCATCAGCTGCATCAACCTCGGGGCTCA
CCGGGAGGCTGTGGAGCACTTTCTGGAGGCCCTGAACATGCAGAGGAAAAGCCGGGGCCC
CCGGGGTGAAGGAGGTGCCATGTCGGAGAACATCTGGAGCACCCTGCGTTTGGCATTGTC
TATGTTAGGCCAGAGCGATGCCTATGGGGCAGCCGACGCGCGGGATCTGTCCACCCTCCT
AACTATGTTTGGCCTGCCCCAGGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCT
AGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTG
AGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGA
GCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAA
AAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGC
AATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATG
TGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGG
ATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGG
GGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGC
ACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAAT
ATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAG
AGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTT
CCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGT
GCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGC
CCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTA
TCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGAC
TTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAA
TTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACT
ATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGC
CTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACG
ATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTA
GCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTG
CGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGG
TCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATC
TACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGT
GCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTAT
CAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGA
ACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGT
TTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGT
GGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGC
GCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAA
GCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCT
CCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTA
ACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTG
GTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGC
CTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTA
CCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTG
GTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTT
TGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGG
TCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAA
CGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGG
ATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAA
TTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGC
TGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATC
CACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGT
CCGGCGTAGAGGATCGAGATCT
