GPR45 ORF clone pFN21AE9413

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE9413

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE9413 Sequence (with vector) Restriction Map

Product ID

FHC21126

ORF Sequence

DNA sequence (1116 bp)
Protein sequence (372 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE9413

Symbol

GPR45

Alias : PSP24, PSP24(ALPHA), PSP24A

Description

G protein-coupled receptor 45

Original Clone ID

cp99413

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1116 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 372 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS2066.1 2.1e-119 100.0 GPR45 CCDS5036.1 1e-63 55.2 GPR63 CCDS4292.1 7.8e-15 26.1 ADRB2 CCDS34273.2 1.4e-12 27.4 HTR4 CCDS34271.1 1.4e-12 27.4 HTR4 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

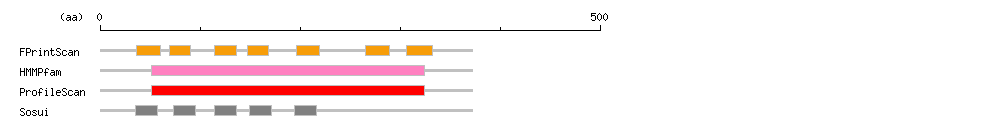

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR000276 36 60 PR00237 GPCR IPR000276 69 90 PR00237 GPCR IPR000276 114 136 PR00237 GPCR IPR000276 147 168 PR00237 GPCR IPR000276 196 219 PR00237 GPCR IPR000276 265 289 PR00237 GPCR IPR000276 306 332 PR00237 GPCR HMMPfam IPR000276 51 324 PF00001 GPCR ProfileScan IPR017452 51 324 PS50262 GPCR
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 35 ISLAIVMLLMTVVGFLGNTVVCI 57 PRIMARY 23 2 73 LATLAFSDIMLSLCCMPFTAVTL 95 PRIMARY 23 3 114 YWFFVLEGVAILLIISVDRFLII 136 PRIMARY 23 4 149 KVIIAVSWVLSFCIAGPSLTGWT 171 PRIMARY 23 5 194 AYVVTLVVAVFFAPFGVMLCAYM 216 PRIMARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_009158 372 604838 100.0 100.0 XP_011534455 419 606915 55.2 92.5 XP_011534456 419 606915 55.2 92.5 NP_001137429 419 606915 55.2 92.5 XP_006715633 419 606915 55.2 92.5 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE9413 Download

>KIEE9413  1116 bp
ATGGCCTGCAACAGCACGTCCCTTGAGGCTTACACATACCTGCTGCTGAACACCAGCAAC
GCCTCAGACTCGGGGTCCACCCAGTTGCCCGCACCCCTCAGGATCTCCTTGGCCATAGTG
ATGCTGCTGATGACCGTGGTGGGGTTCCTGGGCAACACTGTGGTCTGCATCATCGTGTAC
CAGAGGCCGGCTATGCGCTCGGCCATCAACCTGCTGCTGGCCACCCTGGCCTTCTCCGAC
ATCATGCTGTCCCTCTGCTGCATGCCCTTCACCGCCGTCACCCTCATCACCGTGCGCTGG
CACTTTGGGGACCACTTCTGCCGCCTCTCAGCCACGCTCTACTGGTTTTTTGTCCTGGAG
GGCGTGGCCATCCTGCTCATCATCAGCGTGGACCGCTTCCTCATCATCGTCCAGCGCCAG
GACAAGCTGAACCCGCGCAGGGCCAAGGTGATCATCGCGGTCTCCTGGGTGCTGTCCTTC
TGCATCGCGGGGCCCTCGCTCACGGGCTGGACGCTGGTGGAGGTGCCGGCGCGGGCCCCA
CAGTGCGTGCTGGGCTACACGGAGCTCCCCGCTGACCGCGCCTACGTGGTCACCTTGGTG
GTGGCCGTGTTCTTCGCGCCCTTTGGCGTCATGCTGTGCGCCTACATGTGCATCCTCAAC
ACGGTCCGCAAGAACGCCGTGCGCGTGCACAACCAGTCGGACAGCCTGGACCTGCGGCAG
CTCACCAGGGCGGGCCTGCGGCGCCTGCAGCGGCAGCAACAGGTCAGCGTGGACTTGAGC
TTCAAGACCAAGGCCTTCACCACCATCCTGATCCTCTTCGTGGGCTTCTCCCTCTGCTGG
CTGCCCCACTCCGTCTACAGCCTCCTGTCTGTGTTTAGCCAGCGCTTTTACTGCGGTTCC
TCCTTCTACGCCACCAGCACCTGCGTCCTGTGGCTCAGTTACCTCAAGTCCGTCTTCAAC
CCCATCGTCTACTGCTGGAGAATCAAAAAATTCCGCGAGGCCTGCATAGAGTTGCTGCCC
CAGACCTTCCAAATCCTCCCCAAAGTGCCTGAGCGGATCCGAAGGAGAATCCAGCCAAGC
ACAGTCTACGTGTGCAATGAAAACCAGTCTGCGGTT

ORF Protein

Cloned ORF protein sequence for pFN21AE9413 Download

>KIEE9413  372 aa
MACNSTSLEAYTYLLLNTSNASDSGSTQLPAPLRISLAIVMLLMTVVGFLGNTVVCIIVY
QRPAMRSAINLLLATLAFSDIMLSLCCMPFTAVTLITVRWHFGDHFCRLSATLYWFFVLE
GVAILLIISVDRFLIIVQRQDKLNPRRAKVIIAVSWVLSFCIAGPSLTGWTLVEVPARAP
QCVLGYTELPADRAYVVTLVVAVFFAPFGVMLCAYMCILNTVRKNAVRVHNQSDSLDLRQ
LTRAGLRRLQRQQQVSVDLSFKTKAFTTILILFVGFSLCWLPHSVYSLLSVFSQRFYCGS
SFYATSTCVLWLSYLKSVFNPIVYCWRIKKFREACIELLPQTFQILPKVPERIRRRIQPS
TVYVCNENQSAV

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE9413 Download

>pFN21AE9413  5821 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCCTGCAACAGCACGTCCCTTGAGGCTTACAC
ATACCTGCTGCTGAACACCAGCAACGCCTCAGACTCGGGGTCCACCCAGTTGCCCGCACC
CCTCAGGATCTCCTTGGCCATAGTGATGCTGCTGATGACCGTGGTGGGGTTCCTGGGCAA
CACTGTGGTCTGCATCATCGTGTACCAGAGGCCGGCTATGCGCTCGGCCATCAACCTGCT
GCTGGCCACCCTGGCCTTCTCCGACATCATGCTGTCCCTCTGCTGCATGCCCTTCACCGC
CGTCACCCTCATCACCGTGCGCTGGCACTTTGGGGACCACTTCTGCCGCCTCTCAGCCAC
GCTCTACTGGTTTTTTGTCCTGGAGGGCGTGGCCATCCTGCTCATCATCAGCGTGGACCG
CTTCCTCATCATCGTCCAGCGCCAGGACAAGCTGAACCCGCGCAGGGCCAAGGTGATCAT
CGCGGTCTCCTGGGTGCTGTCCTTCTGCATCGCGGGGCCCTCGCTCACGGGCTGGACGCT
GGTGGAGGTGCCGGCGCGGGCCCCACAGTGCGTGCTGGGCTACACGGAGCTCCCCGCTGA
CCGCGCCTACGTGGTCACCTTGGTGGTGGCCGTGTTCTTCGCGCCCTTTGGCGTCATGCT
GTGCGCCTACATGTGCATCCTCAACACGGTCCGCAAGAACGCCGTGCGCGTGCACAACCA
GTCGGACAGCCTGGACCTGCGGCAGCTCACCAGGGCGGGCCTGCGGCGCCTGCAGCGGCA
GCAACAGGTCAGCGTGGACTTGAGCTTCAAGACCAAGGCCTTCACCACCATCCTGATCCT
CTTCGTGGGCTTCTCCCTCTGCTGGCTGCCCCACTCCGTCTACAGCCTCCTGTCTGTGTT
TAGCCAGCGCTTTTACTGCGGTTCCTCCTTCTACGCCACCAGCACCTGCGTCCTGTGGCT
CAGTTACCTCAAGTCCGTCTTCAACCCCATCGTCTACTGCTGGAGAATCAAAAAATTCCG
CGAGGCCTGCATAGAGTTGCTGCCCCAGACCTTCCAAATCCTCCCCAAAGTGCCTGAGCG
GATCCGAAGGAGAATCCAGCCAAGCACAGTCTACGTGTGCAATGAAAACCAGTCTGCGGT
TGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGC
AAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTG
AGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATT
GATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATT
TGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAAC
AATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAG
TAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTT
TCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGA
CTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGC
GGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAA
TAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTC
CGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAA
ACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAA
CTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATG
ATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAA
GAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTC
ACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACC
ATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTA
ACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAG
CTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACA
ACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATA
GACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGC
TGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCA
CTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCA
ACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGG
TAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAA
TACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGC
AAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCC
CTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTAT
AAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGC
CGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCT
CACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACG
AACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACC
CGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGA
GGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAA
GGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTA
GCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGC
AGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTG
ACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGA
TCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCG
CTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGC
CTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGC
AGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGC
GTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTA
GCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATC
T
