SLC35A4 ORF clone pFN21AE6360

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE6360

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE6360 Sequence (with vector) Restriction Map

Product ID

FHC22311

ORF Sequence

DNA sequence (972 bp)
Protein sequence (324 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE6360

Symbol

SLC35A4

Description

solute carrier family 35, member A4

Original Clone ID

oc96360

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 972 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 324 aa

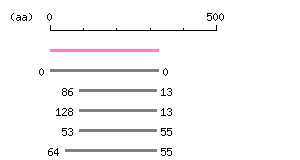

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS4231.1 6.7e-126 100.0 SLC35A4 CCDS762.1 8.8e-14 30.0 SLC35A3 CCDS60204.1 9.7e-14 30.0 SLC35A3 CCDS65253.1 4.9e-12 33.2 SLC35A2 CCDS43937.1 4.9e-12 30.6 SLC35A2 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR007271 89 312 PF04142 Nucleotide-sugar transporter
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 20 TLMLLLSTAMYGAHAPLLALCHV 42 SECONDARY 23 2 145 ALLLLMAAGACYAAGGLQVPGN 166 SECONDARY 22 3 183 HITPLGLLLLILYCLISGLSSVY 205 PRIMARY 23 4 214 RLPLALQNLFLYTFGVLLNLGLH 236 SECONDARY 23 5 249 FSGWAALVVLSQALNGLLMSAVM 271 PRIMARY 23 6 275 SSITRLFVVSCSLVVNAVLSAVL 297 PRIMARY 23 7 300 LQLTAAFFLATLLIGLAMRLYY 321 PRIMARY 22
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001035963 393 300896,314375 30.6 84.3 NP_005651 396 300896,314375 30.6 84.3 NP_001269579 406 300896,314375 30.6 84.3 NP_001269580 421 300896,314375 30.6 84.3 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE6360 Download

>KIEE6360  972 bp
ATGAGTGTAGAGGATGGGGGTATGCCAGGCCTGGGCCGTCCCAGGCAGGCCCGCTGGACC
CTGATGCTACTCCTATCCACTGCCATGTACGGTGCCCATGCCCCATTGCTGGCACTGTGC
CATGTGGACGGCCGAGTGCCCTTCCGGCCCTCCTCAGCCGTGCTGCTGACTGAGCTGACC
AAGCTACTGTTATGCGCCTTCTCCCTTCTGGTAGGCTGGCAAGCATGGCCCCAGGGGCCC
CCACCCTGGCGCCAGGCTGCTCCCTTCGCACTATCAGCCCTGCTCTATGGCGCTAACAAC
AACCTGGTGATCTATCTTCAGCGTTACATGGACCCCAGCACCTACCAGGTGCTGAGTAAT
CTCAAGATTGGAAGCACAGCTGTGCTCTACTGCCTCTGCCTCCGGCACCGCCTCTCTGTG
CGTCAGGGGTTAGCGCTGCTGCTGCTGATGGCTGCGGGAGCCTGCTATGCAGCAGGGGGC
CTTCAAGTTCCCGGGAACACCCTTCCCAGTCCCCCTCCAGCAGCTGCTGCCAGCCCCATG
CCCCTGCATATCACTCCGCTAGGCCTGCTGCTCCTCATTCTGTACTGCCTCATCTCAGGC
TTGTCGTCAGTGTACACAGAGCTGCTCATGAAGCGACAGCGGCTGCCCCTGGCACTTCAG
AACCTCTTCCTCTACACTTTTGGTGTGCTTCTGAATCTAGGTCTGCATGCTGGCGGCGGC
TCTGGCCCAGGCCTCCTGGAAGGTTTCTCAGGATGGGCAGCACTCGTGGTGCTGAGCCAG
GCACTAAATGGACTGCTCATGTCTGCTGTCATGAAGCATGGCAGCAGCATCACACGCCTC
TTTGTGGTGTCCTGCTCGCTGGTGGTCAACGCCGTGCTCTCAGCAGTCCTGCTACGGCTG
CAGCTCACAGCCGCCTTCTTCCTGGCCACATTGCTCATTGGCCTGGCCATGCGCCTGTAC
TATGGCAGCCGC

ORF Protein

Cloned ORF protein sequence for pFN21AE6360 Download

>KIEE6360  324 aa
MSVEDGGMPGLGRPRQARWTLMLLLSTAMYGAHAPLLALCHVDGRVPFRPSSAVLLTELT
KLLLCAFSLLVGWQAWPQGPPPWRQAAPFALSALLYGANNNLVIYLQRYMDPSTYQVLSN
LKIGSTAVLYCLCLRHRLSVRQGLALLLLMAAGACYAAGGLQVPGNTLPSPPPAAAASPM
PLHITPLGLLLLILYCLISGLSSVYTELLMKRQRLPLALQNLFLYTFGVLLNLGLHAGGG
SGPGLLEGFSGWAALVVLSQALNGLLMSAVMKHGSSITRLFVVSCSLVVNAVLSAVLLRL
QLTAAFFLATLLIGLAMRLYYGSR

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE6360 Download

>pFN21AE6360  5677 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGTGTAGAGGATGGGGGTATGCCAGGCCTGGG
CCGTCCCAGGCAGGCCCGCTGGACCCTGATGCTACTCCTATCCACTGCCATGTACGGTGC
CCATGCCCCATTGCTGGCACTGTGCCATGTGGACGGCCGAGTGCCCTTCCGGCCCTCCTC
AGCCGTGCTGCTGACTGAGCTGACCAAGCTACTGTTATGCGCCTTCTCCCTTCTGGTAGG
CTGGCAAGCATGGCCCCAGGGGCCCCCACCCTGGCGCCAGGCTGCTCCCTTCGCACTATC
AGCCCTGCTCTATGGCGCTAACAACAACCTGGTGATCTATCTTCAGCGTTACATGGACCC
CAGCACCTACCAGGTGCTGAGTAATCTCAAGATTGGAAGCACAGCTGTGCTCTACTGCCT
CTGCCTCCGGCACCGCCTCTCTGTGCGTCAGGGGTTAGCGCTGCTGCTGCTGATGGCTGC
GGGAGCCTGCTATGCAGCAGGGGGCCTTCAAGTTCCCGGGAACACCCTTCCCAGTCCCCC
TCCAGCAGCTGCTGCCAGCCCCATGCCCCTGCATATCACTCCGCTAGGCCTGCTGCTCCT
CATTCTGTACTGCCTCATCTCAGGCTTGTCGTCAGTGTACACAGAGCTGCTCATGAAGCG
ACAGCGGCTGCCCCTGGCACTTCAGAACCTCTTCCTCTACACTTTTGGTGTGCTTCTGAA
TCTAGGTCTGCATGCTGGCGGCGGCTCTGGCCCAGGCCTCCTGGAAGGTTTCTCAGGATG
GGCAGCACTCGTGGTGCTGAGCCAGGCACTAAATGGACTGCTCATGTCTGCTGTCATGAA
GCATGGCAGCAGCATCACACGCCTCTTTGTGGTGTCCTGCTCGCTGGTGGTCAACGCCGT
GCTCTCAGCAGTCCTGCTACGGCTGCAGCTCACAGCCGCCTTCTTCCTGGCCACATTGCT
CATTGGCCTGGCCATGCGCCTGTACTATGGCAGCCGCGTTTAAACGAATTCGGGCTCGGT
ACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAG
CCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTG
GGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACT
AGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTA
ACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAG
GTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAA
ATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAG
CTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCT
TAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTC
TAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAA
TATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTT
GCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCT
GAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATC
CTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTA
TGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACAC
TATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGC
ATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAAC
TTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGG
GATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGAC
GAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGC
GAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTT
GCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGA
GCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCC
CGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAG
ATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCG
ACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGG
ATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGG
CCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGAC
GCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTG
GAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCT
TTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGG
TGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCT
GCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCAC
TGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGT
TCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTC
TGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCA
CCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGAT
TTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCAC
GTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGT
CCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAA
TGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTA
TTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCA
TTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAG
GGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACT
CCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
