SPRY4 ORF clone pFN21AE5363

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE5363

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE5363 Sequence (with vector) Restriction Map

Product ID

FHC22337

ORF Sequence

DNA sequence (897 bp)
Protein sequence (299 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE5363

Symbol

SPRY4

Alias : HH17

Description

sprouty RTK signaling antagonist 4, transcript variant 2

Original Clone ID

oc95363

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 897 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 299 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS47296.1 5.5e-97 100.0 SPRY4 CCDS4274.1 5.8e-97 100.0 SPRY4 CCDS9463.1 1.2e-33 45.5 SPRY2 CCDS3731.1 2e-33 44.7 SPRY1 CCDS14769.4 8.2e-31 46.2 SPRY3 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

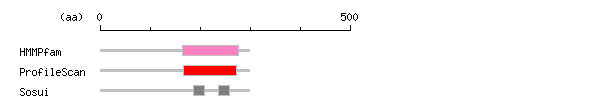

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR007875 164 276 PF05210 Sprouty ProfileScan IPR007875 166 273 PS51227 Sprouty
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 186 CLCSAQTLVNYGTCMCLVQGIFY 208 SECONDARY 23 2 236 SFMGALSVVLPCLLCYLPATGCV 258 PRIMARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001280218 299 607984,615266 100.0 100.0 NP_001120968 299 607984,615266 100.0 100.0 NP_001280219 299 607984,615266 100.0 100.0 XP_016865399 299 607984,615266 100.0 100.0 NP_112226 322 607984,615266 100.0 100.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE5363 Download

>KIEE5363  897 bp
ATGGAGCCCCCGATCCCACAGAGCGCCCCCTTGACTCCCAACTCAGTCATGGTCCAGCCC
CTTCTTGACAGCCGGATGTCCCACAGCCGGCTCCAGCACCCACTCACCATCCTACCCATT
GACCAGGTGAAGACCAGCCATGTGGAGAATGACTACATAGACAACCCTAGCCTGGCCCTG
ACCACCGGCCCAAAGCGGACCCGGGGCGGGGCCCCAGAGCTGGCCCCGACGCCCGCCCGC
TGTGACCAGGATGTCACCCACCATTGGATCTCCTTCAGCGGGCGCCCCAGCTCTGTGAGC
AGCAGCAGCAGCACATCCTCTGACCAACGGCTCTTAGACCACATGGCACCACCACCCGTG
GCTGACCAGGCCTCACCAAGGGCTGTGCGCATCCAGCCCAAGGTGGTCCACTGCCAGCCG
CTGGACCTCAAGGGCCCGGCGGTCCCACCCGAGCTGGACAAGCACTTCTTGCTGTGCGAG
GCCTGTGGGAAGTGTAAATGCAAGGAGTGTGCATCCCCCCGGACGTTGCCTTCCTGCTGG
GTCTGCAACCAGGAGTGCCTGTGCTCAGCCCAGACTCTGGTCAACTATGGCACGTGCATG
TGTTTGGTGCAGGGCATCTTCTACCACTGCACGAATGAGGACGATGAGGGCTCCTGCGCT
GACCACCCCTGCTCCTGCTCCCGCTCCAACTGCTGCGCCCGCTGGTCCTTCATGGGTGCT
CTCTCCGTGGTGCTGCCCTGCCTGCTCTGCTACCTGCCTGCCACCGGCTGCGTGAAGCTG
GCCCAGCGTGGCTACGACCGTCTGCGCCGCCCTGGTTGCCGCTGCAAGCACACGAACAGC
GTCATCTGCAAAGCAGCCAGCGGGGATGCCAAGACCAGCAGGCCCGACAAGCCTTTC

ORF Protein

Cloned ORF protein sequence for pFN21AE5363 Download

>KIEE5363  299 aa
MEPPIPQSAPLTPNSVMVQPLLDSRMSHSRLQHPLTILPIDQVKTSHVENDYIDNPSLAL
TTGPKRTRGGAPELAPTPARCDQDVTHHWISFSGRPSSVSSSSSTSSDQRLLDHMAPPPV
ADQASPRAVRIQPKVVHCQPLDLKGPAVPPELDKHFLLCEACGKCKCKECASPRTLPSCW
VCNQECLCSAQTLVNYGTCMCLVQGIFYHCTNEDDEGSCADHPCSCSRSNCCARWSFMGA
LSVVLPCLLCYLPATGCVKLAQRGYDRLRRPGCRCKHTNSVICKAASGDAKTSRPDKPF

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE5363 Download

>pFN21AE5363  5602 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGAGCCCCCGATCCCACAGAGCGCCCCCTTGAC
TCCCAACTCAGTCATGGTCCAGCCCCTTCTTGACAGCCGGATGTCCCACAGCCGGCTCCA
GCACCCACTCACCATCCTACCCATTGACCAGGTGAAGACCAGCCATGTGGAGAATGACTA
CATAGACAACCCTAGCCTGGCCCTGACCACCGGCCCAAAGCGGACCCGGGGCGGGGCCCC
AGAGCTGGCCCCGACGCCCGCCCGCTGTGACCAGGATGTCACCCACCATTGGATCTCCTT
CAGCGGGCGCCCCAGCTCTGTGAGCAGCAGCAGCAGCACATCCTCTGACCAACGGCTCTT
AGACCACATGGCACCACCACCCGTGGCTGACCAGGCCTCACCAAGGGCTGTGCGCATCCA
GCCCAAGGTGGTCCACTGCCAGCCGCTGGACCTCAAGGGCCCGGCGGTCCCACCCGAGCT
GGACAAGCACTTCTTGCTGTGCGAGGCCTGTGGGAAGTGTAAATGCAAGGAGTGTGCATC
CCCCCGGACGTTGCCTTCCTGCTGGGTCTGCAACCAGGAGTGCCTGTGCTCAGCCCAGAC
TCTGGTCAACTATGGCACGTGCATGTGTTTGGTGCAGGGCATCTTCTACCACTGCACGAA
TGAGGACGATGAGGGCTCCTGCGCTGACCACCCCTGCTCCTGCTCCCGCTCCAACTGCTG
CGCCCGCTGGTCCTTCATGGGTGCTCTCTCCGTGGTGCTGCCCTGCCTGCTCTGCTACCT
GCCTGCCACCGGCTGCGTGAAGCTGGCCCAGCGTGGCTACGACCGTCTGCGCCGCCCTGG
TTGCCGCTGCAAGCACACGAACAGCGTCATCTGCAAAGCAGCCAGCGGGGATGCCAAGAC
CAGCAGGCCCGACAAGCCTTTCGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCT
AGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTG
AGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGA
GCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAA
AAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGC
AATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATG
TGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGG
ATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGG
GGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGC
ACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAAT
ATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAG
AGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTT
CCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGT
GCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGC
CCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTA
TCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGAC
TTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAA
TTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACT
ATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGC
CTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACG
ATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTA
GCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTG
CGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGG
TCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATC
TACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGT
GCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTAT
CAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGA
ACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGT
TTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGT
GGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGC
GCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAA
GCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCT
CCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTA
ACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTG
GTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGC
CTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTA
CCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTG
GTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTT
TGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGG
TCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAA
CGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGG
ATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAA
TTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGC
TGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATC
CACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGT
CCGGCGTAGAGGATCGAGATCT
