GPRC5A ORF clone pFN21AE1136

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE1136

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE1136 Sequence (with vector) Restriction Map

Product ID

FHC24627

Flexi Clone PID

FXC24627

ORF Sequence

DNA sequence (1071 bp)
Protein sequence (357 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE1136

Symbol

GPRC5A

Alias : GPCR5A, PEIG-1, RAI3, RAIG1, TIG1

Description

G protein-coupled receptor, class C, group 5, member A

Original Clone ID

cs03009

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1071 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 357 aa

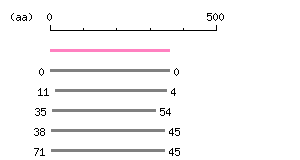

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS8657.1 5.3e-149 100.0 GPRC5A CCDS8658.1 2.5e-56 45.7 GPRC5D CCDS10581.1 2.1e-36 37.4 GPRC5B CCDS42378.1 5.2e-25 38.5 GPRC5C CCDS11699.1 5.5e-25 38.5 GPRC5C The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR017978 38 268 PF00003 GPCR
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 30 VLETVATAGVVTSVAFMLTLPIL 52 PRIMARY 23 2 67 TQFLFLLGVLGIFGLTFAFIIGL 89 PRIMARY 23 3 99 FLFGILFSICFSCLLAHAVSLTK 121 PRIMARY 23 4 131 LLVILGLAVGFSLVQDVIAIEYI 153 PRIMARY 23 5 179 LLLTYVLFLMALTFLMSSFTFCG 201 PRIMARY 23 6 213 IYLTMLLSIAIWVAWITLLMLPD 235 PRIMARY 23 7 241 DDTILSSALAANGWVFLLAYVSP 263 PRIMARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_003970 357 604138 100.0 100.0 NP_061124 345 607437 45.7 93.3 XP_005253478 345 607437 45.7 93.3 XP_016875071 345 607437 45.7 93.3 XP_016875072 300 607437 47.4 80.4 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE1136 Download

>KIEE1136  1071 bp
ATGGCTACAACAGTCCCTGATGGTTGCCGCAATGGCCTGAAATCCAAGTACTACAGACTT
TGTGATAAGGCTGAAGCTTGGGGCATCGTCCTAGAAACGGTGGCCACAGCCGGGGTTGTG
ACCTCGGTGGCCTTCATGCTCACTCTCCCGATCCTCGTCTGCAAGGTGCAGGACTCCAAC
AGGCGAAAAATGCTGCCTACTCAGTTTCTCTTCCTCCTGGGTGTGTTGGGCATCTTTGGC
CTCACCTTCGCCTTCATCATCGGACTGGACGGGAGCACAGGGCCCACACGCTTCTTCCTC
TTTGGGATCCTCTTTTCCATCTGCTTCTCCTGCCTGCTGGCTCATGCTGTCAGTCTGACC
AAGCTCGTCCGGGGGAGGAAGCCCCTTTCCCTGTTGGTGATTCTGGGTCTGGCCGTGGGC
TTCAGCCTAGTCCAGGATGTTATCGCTATTGAATATATTGTCCTGACCATGAATAGGACC
AACGTCAATGTCTTTTCTGAGCTTTCCGCTCCTCGTCGCAATGAAGACTTTGTCCTCCTG
CTCACCTACGTCCTCTTCTTGATGGCGCTGACCTTCCTCATGTCCTCCTTCACCTTCTGT
GGTTCCTTCACGGGCTGGAAGAGACATGGGGCCCACATCTACCTCACGATGCTCCTCTCC
ATTGCCATCTGGGTGGCCTGGATCACCCTGCTCATGCTTCCTGACTTTGACCGCAGGTGG
GATGACACCATCCTCAGCTCCGCCTTGGCTGCCAATGGCTGGGTGTTCCTGTTGGCTTAT
GTTAGTCCCGAGTTTTGGCTGCTCACAAAGCAACGAAACCCCATGGATTATCCTGTTGAG
GATGCTTTCTGTAAACCTCAACTCGTGAAGAAGAGCTATGGTGTGGAGAACAGAGCCTAC
TCTCAAGAGGAAATCACTCAAGGTTTTGAAGAGACAGGGGACACGCTCTATGCCCCCTAT
TCCACACATTTTCAGCTGCAGAACCAGCCTCCCCAAAAGGAATTCTCCATCCCACGGGCC
CACGCTTGGCCGAGCCCTTACAAAGACTATGAAGTAAAGAAAGAGGGCAGC

ORF Protein

Cloned ORF protein sequence for pFN21AE1136 Download

>KIEE1136  357 aa
MATTVPDGCRNGLKSKYYRLCDKAEAWGIVLETVATAGVVTSVAFMLTLPILVCKVQDSN
RRKMLPTQFLFLLGVLGIFGLTFAFIIGLDGSTGPTRFFLFGILFSICFSCLLAHAVSLT
KLVRGRKPLSLLVILGLAVGFSLVQDVIAIEYIVLTMNRTNVNVFSELSAPRRNEDFVLL
LTYVLFLMALTFLMSSFTFCGSFTGWKRHGAHIYLTMLLSIAIWVAWITLLMLPDFDRRW
DDTILSSALAANGWVFLLAYVSPEFWLLTKQRNPMDYPVEDAFCKPQLVKKSYGVENRAY
SQEEITQGFEETGDTLYAPYSTHFQLQNQPPQKEFSIPRAHAWPSPYKDYEVKKEGS

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE1136 Download

>pFN21AE1136  5776 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCTACAACAGTCCCTGATGGTTGCCGCAATGG
CCTGAAATCCAAGTACTACAGACTTTGTGATAAGGCTGAAGCTTGGGGCATCGTCCTAGA
AACGGTGGCCACAGCCGGGGTTGTGACCTCGGTGGCCTTCATGCTCACTCTCCCGATCCT
CGTCTGCAAGGTGCAGGACTCCAACAGGCGAAAAATGCTGCCTACTCAGTTTCTCTTCCT
CCTGGGTGTGTTGGGCATCTTTGGCCTCACCTTCGCCTTCATCATCGGACTGGACGGGAG
CACAGGGCCCACACGCTTCTTCCTCTTTGGGATCCTCTTTTCCATCTGCTTCTCCTGCCT
GCTGGCTCATGCTGTCAGTCTGACCAAGCTCGTCCGGGGGAGGAAGCCCCTTTCCCTGTT
GGTGATTCTGGGTCTGGCCGTGGGCTTCAGCCTAGTCCAGGATGTTATCGCTATTGAATA
TATTGTCCTGACCATGAATAGGACCAACGTCAATGTCTTTTCTGAGCTTTCCGCTCCTCG
TCGCAATGAAGACTTTGTCCTCCTGCTCACCTACGTCCTCTTCTTGATGGCGCTGACCTT
CCTCATGTCCTCCTTCACCTTCTGTGGTTCCTTCACGGGCTGGAAGAGACATGGGGCCCA
CATCTACCTCACGATGCTCCTCTCCATTGCCATCTGGGTGGCCTGGATCACCCTGCTCAT
GCTTCCTGACTTTGACCGCAGGTGGGATGACACCATCCTCAGCTCCGCCTTGGCTGCCAA
TGGCTGGGTGTTCCTGTTGGCTTATGTTAGTCCCGAGTTTTGGCTGCTCACAAAGCAACG
AAACCCCATGGATTATCCTGTTGAGGATGCTTTCTGTAAACCTCAACTCGTGAAGAAGAG
CTATGGTGTGGAGAACAGAGCCTACTCTCAAGAGGAAATCACTCAAGGTTTTGAAGAGAC
AGGGGACACGCTCTATGCCCCCTATTCCACACATTTTCAGCTGCAGAACCAGCCTCCCCA
AAAGGAATTCTCCATCCCACGGGCCCACGCTTGGCCGAGCCCTTACAAAGACTATGAAGT
AAAGAAAGAGGGCAGCGTTTAAACGAATTCGGGCTCGGTACCCGGGGATCCTCTAGAGTC
GACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGG
CTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCGCTTCGAGCAGAC
ATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAGTGAAAAAAATGC
TTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATAAGCTGCAATAAA
CAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGGGAGATGTGGGAG
GTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTCTAATGGATCCTC
TTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTCATCCGGGGTCAG
CACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCAGGTGGCACTTTT
CGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACATTCAAATATGTAT
CCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAAAGGAAGAGTATG
AGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTT
TTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGA
GTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAA
GAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCGGTATTATCCCGT
ATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAGAATGACTTGGTT
GAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTAAGAGAATTATGC
AGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTGACAACTATCGGA
GGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTAACTCGCCTTGAT
CGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGACACCACGATGCCT
GTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTTACTCTAGCTTCC
CGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCG
GCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGC
GGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTAGTTATCTACACG
ACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAGATAGGTGCCTCA
CTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAACCGGTATCAGCTC
ACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGGAAAGAACATGT
GAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCC
ATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAA
ACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTC
CTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGG
CGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGC
TGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATC
GTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGCCACTGGTAACA
GGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACT
ACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCG
GAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTT
TTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGATCCTTTGATCT
TTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGATTTTGGTCATGA
GATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATACAGGAACGCACG
CTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTCAGTGGATTAAG
TGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGTTAAAATTTATC
AGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTGTCTGCTGCCGT
GATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGTAAATCCACTTA
CTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGATGCGTCCGGCG
TAGAGGATCGAGATCT
