PIP4K2C ORF clone pFN21AE3661

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE3661

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE3661 Sequence (with vector) Restriction Map

Product ID

FHC07626

ORF Sequence

DNA sequence (1263 bp)
Protein sequence (421 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE3661

Symbol

PIP4K2C

Alias : PIP5K2C

Description

phosphatidylinositol-5-phosphate 4-kinase, type II, gamma, transcript variant 1

Original Clone ID

oc93661

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1263 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 421 aa

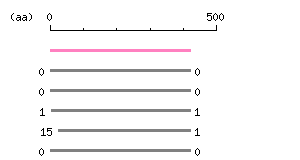

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS8946.1 2.2e-171 99.5 PIP4K2C CCDS55839.1 3.4e-129 95.2 PIP4K2C CCDS11329.1 5.7e-107 64.8 PIP4K2B CCDS7141.1 3.5e-104 65.6 PIP4K2A CCDS53808.1 1.5e-98 88.4 PIP4K2C The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR002498 134 420 PF01504 Phosphatidylinositol-4-phosphate 5-kinase HMMSmart IPR016034 72 421 SM00330 Phosphatidylinositol-4-phosphate 5-kinase ProfileScan IPR002498 43 420 PS51455 Phosphatidylinositol-4-phosphate 5-kinase
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001139730 421 617104 99.5 100.0 NP_079055 421 617104 99.5 100.0 NP_001139731 403 617104 95.2 100.0 NP_003550 416 603261 64.8 99.0 NP_005019 406 603140 65.6 93.8 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE3661 Download

>KIEE3661  1263 bp
ATGGCGTCCTCCTCGGTCCCACCAGCCACGGTATCGGCGGCGACAGCAGGCCCCGGCCCA
GGTTTCGGCTTCGCCTCCAAGACCAAGAAGAAGCATTTCGTGCAGCAGAAGGTGAAGGTG
TTCCGGGCGGCCGACCCGCTGGTGGGTGTGTTCCTGTGGGGCGTAGCCCACTCGATCAAT
GAGCTCAGCCAGGTGCCTCCCCCGGTGATGCTGCTGCCAGATGACTTTAAGGCCAGCTCC
AAGATCAAGGTCAACAATCACCTTTTCCACAGGGAAAATCTGCCCAGTCATTTCAAGTTC
AAGGAGTATTGTCCCCAGGTCTTCAGGAACCTCCGTGATCGATTTGGCATTGATGACCAA
GATTACTTGGTGTCCCTTACCCGAAACCCCCCCAGCGAAAGTGAAGGCAGTGATGGTCGC
TTCCTTATCTCCTACGATCGGACTCTGGTCATCAAAAAAGTATCCAGTGAGGACATTGCT
GACATGCATAGCAACCTCTCCAACTATCACCAGTACATTGTGAAGTGCCATGGCAACACG
CTTCTGCCCCAGTTCCTGGGGATGTACCGAGTCAGTGTGGACAACGAAGACAGCTACATG
CTTGTGATGCGCAATATGTTTAGCCACCGTCTTCCTGTGCACAGGAAGTATGACCTCAAG
GGTTCCCTAGTGTCCCGGGAAGCCAGCGATAAGGAAAAGGTTAAAGAATTGCCCACCCTT
AGGGATATGGACTTTCTCAACAAGAACCAGAAAGTATATATTGGTGAAGAGGAGAAGAAA
ATATTTCTGGAGAAGCTGAAGAGAGATGTGGAGTTTCTAGTGCAGCTGAAGATCATGGAC
TACAGCCTTCTGCTAGGCATCCACGACATCATTCGGGGCTCTGAACCAGAGGAGGAAGCG
CCCGTGCGGGAGGATGAGTCAGAGGTGGATGGGGACTGCAGCCTGACTGGACCTCCTGCT
CTGGTGGGCTCCTATGGCACCTCCCCAGAGGGTATCGGAGGCTACATCCATTCCCATCGG
CCCCTGGGCCCAGGAGAGTTTGAGTCCTTCATTGATGTCTATGCCATCCGGAGTGCTGAA
GGAGCCCCCCAGAAGGAGGTCTACTTCATGGGCCTCATTGATATCCTTACACAGTATGAT
GCCAAGAAGAAAGCAGCTCATGCAGCCAAAACTGTCAAGCATGGGGCTGGGGCAGAGATC
TCTACTGTCCATCCGGAGCAGTATGCTAAGCGATTCCTGGATTTTATTACCAACATCTTT
GCC

ORF Protein

Cloned ORF protein sequence for pFN21AE3661 Download

>KIEE3661  421 aa
MASSSVPPATVSAATAGPGPGFGFASKTKKKHFVQQKVKVFRAADPLVGVFLWGVAHSIN
ELSQVPPPVMLLPDDFKASSKIKVNNHLFHRENLPSHFKFKEYCPQVFRNLRDRFGIDDQ
DYLVSLTRNPPSESEGSDGRFLISYDRTLVIKKVSSEDIADMHSNLSNYHQYIVKCHGNT
LLPQFLGMYRVSVDNEDSYMLVMRNMFSHRLPVHRKYDLKGSLVSREASDKEKVKELPTL
RDMDFLNKNQKVYIGEEEKKIFLEKLKRDVEFLVQLKIMDYSLLLGIHDIIRGSEPEEEA
PVREDESEVDGDCSLTGPPALVGSYGTSPEGIGGYIHSHRPLGPGEFESFIDVYAIRSAE
GAPQKEVYFMGLIDILTQYDAKKKAAHAAKTVKHGAGAEISTVHPEQYAKRFLDFITNIF
A

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE3661 Download

>pFN21AE3661  5968 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCGTCCTCCTCGGTCCCACCAGCCACGGTATC
GGCGGCGACAGCAGGCCCCGGCCCAGGTTTCGGCTTCGCCTCCAAGACCAAGAAGAAGCA
TTTCGTGCAGCAGAAGGTGAAGGTGTTCCGGGCGGCCGACCCGCTGGTGGGTGTGTTCCT
GTGGGGCGTAGCCCACTCGATCAATGAGCTCAGCCAGGTGCCTCCCCCGGTGATGCTGCT
GCCAGATGACTTTAAGGCCAGCTCCAAGATCAAGGTCAACAATCACCTTTTCCACAGGGA
AAATCTGCCCAGTCATTTCAAGTTCAAGGAGTATTGTCCCCAGGTCTTCAGGAACCTCCG
TGATCGATTTGGCATTGATGACCAAGATTACTTGGTGTCCCTTACCCGAAACCCCCCCAG
CGAAAGTGAAGGCAGTGATGGTCGCTTCCTTATCTCCTACGATCGGACTCTGGTCATCAA
AAAAGTATCCAGTGAGGACATTGCTGACATGCATAGCAACCTCTCCAACTATCACCAGTA
CATTGTGAAGTGCCATGGCAACACGCTTCTGCCCCAGTTCCTGGGGATGTACCGAGTCAG
TGTGGACAACGAAGACAGCTACATGCTTGTGATGCGCAATATGTTTAGCCACCGTCTTCC
TGTGCACAGGAAGTATGACCTCAAGGGTTCCCTAGTGTCCCGGGAAGCCAGCGATAAGGA
AAAGGTTAAAGAATTGCCCACCCTTAGGGATATGGACTTTCTCAACAAGAACCAGAAAGT
ATATATTGGTGAAGAGGAGAAGAAAATATTTCTGGAGAAGCTGAAGAGAGATGTGGAGTT
TCTAGTGCAGCTGAAGATCATGGACTACAGCCTTCTGCTAGGCATCCACGACATCATTCG
GGGCTCTGAACCAGAGGAGGAAGCGCCCGTGCGGGAGGATGAGTCAGAGGTGGATGGGGA
CTGCAGCCTGACTGGACCTCCTGCTCTGGTGGGCTCCTATGGCACCTCCCCAGAGGGTAT
CGGAGGCTACATCCATTCCCATCGGCCCCTGGGCCCAGGAGAGTTTGAGTCCTTCATTGA
TGTCTATGCCATCCGGAGTGCTGAAGGAGCCCCCCAGAAGGAGGTCTACTTCATGGGCCT
CATTGATATCCTTACACAGTATGATGCCAAGAAGAAAGCAGCTCATGCAGCCAAAACTGT
CAAGCATGGGGCTGGGGCAGAGATCTCTACTGTCCATCCGGAGCAGTATGCTAAGCGATT
CCTGGATTTTATTACCAACATCTTTGCCGTTTAAACGAATTCGGGCTCGGTACCCGGGGA
TCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGG
AAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCG
CTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAG
TGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATA
AGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGG
GAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTC
TAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTC
ATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCA
GGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACAT
TCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAA
AGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTT
TGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAG
TTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGT
TTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCG
GTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAG
AATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTA
AGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTG
ACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTA
ACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGAC
ACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTT
ACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCA
CTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAG
CGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTA
GTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAG
ATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAAC
CGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAG
GAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGC
TGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTC
AGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCC
TCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTT
CGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCG
TTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTAT
CCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAG
CCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGT
GGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGC
CAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTA
GCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAG
ATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGA
TTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATA
CAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTT
CAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGG
TTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCT
GTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGG
TAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACG
ATGCGTCCGGCGTAGAGGATCGAGATCT
