Halotag ORF Clone pFN21AB9658

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB9658 Sequence (with vector) Restriction Map

Product ID

FHC03224

Flexi Clone PID

FXC03224

ORF Sequence

DNA sequence (969 bp)
Protein sequence (323 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB464740]

Gene

KIBB9658

Symbol

MAFB

Alias : DURS3, KRML, MCTO

Description

v-maf avian musculoaponeurotic fibrosarcoma oncogene homolog B

Original Clone ID

cp00241

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 969 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 323 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS13311.1 6e-77 100.0 MAFB CCDS42198.1 1.1e-20 52.6 MAF CCDS10928.1 1.3e-20 52.6 MAF CCDS34955.1 4.7e-16 53.4 MAFA CCDS9608.1 5.7e-11 43.9 NRL The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

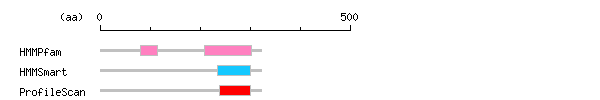

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR013592 80 114 PF08383 Maf transcription factor IPR004826 209 302 PF03131 Maf transcription factor HMMSmart IPR004827 234 300 SM00338 Basic-leucine zipper (bZIP) transcription factor ProfileScan IPR004827 238 301 PS50217 Basic-leucine zipper (bZIP) transcription factor
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_005452 323 166300,608968,617041 100.0 100.0 NP_001026974 373 177075,601088,610202 52.6 94.7 XP_016878722 383 177075,601088,610202 52.6 94.7 XP_016878724 383 177075,601088,610202 52.6 94.7 XP_016878723 383 177075,601088,610202 52.6 94.7 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB9658 Download

>KIBB9658  969 bp
ATGGCCGCGGAGCTGAGCATGGGGCCAGAGCTGCCCACCAGCCCGCTGGCCATGGAGTAT
GTCAACGACTTCGACCTGCTCAAGTTCGACGTGAAGAAGGAGCCACTGGGGCGCGCGGAG
CGTCCGGGCAGGCCCTGCACACGCCTGCAGCCAGCCGGCTCGGTGTCCTCCACACCGCTC
AGCACTCCGTGTAGCTCCGTGCCCTCGTCGCCCAGCTTCAGCCCGACCGAACAGAAGACA
CACCTCGAGGATCTGTACTGGATGGCGAGCAACTACCAGCAGATGAACCCCGAGGCGCTC
AACCTGACGCCCGAGGACGCGGTGGAAGCGCTCATCGGCTCGCACCCAGTGCCACAGCCG
CTGCAAAGCTTCGACAGCTTTCGCGGCGCTCACCACCACCACCATCACCACCACCCTCAC
CCGCACCACGCGTACCCGGGCGCCGGCGTGGCCCACGACGAGCTGGGCCCGCACGCTCAC
CCGCACCATCACCATCATCACCAAGCGTCGCCGCCGCCGTCCAGCGCCGCTAGCCCGGCG
CAACAGCTGCCCACTAGCCACCCCGGGCCCGGGCCGCACGCGACGGCCTCGGCGACGGCG
GCGGGCGGCAACGGCAGCGTGGAGGACCGCTTCTCCGACGACCAGCTCGTGTCCATGTCC
GTGCGCGAGCTGAACCGCCACCTGCGGGGCTTCACCAAGGACGAGGTGATCCGCCTGAAG
CAGAAGCGGCGGACCCTGAAGAACCGGGGCTACGCCCAGTCTTGCAGGTATAAACGCGTC
CAGCAGAAGCACCACCTGGAGAATGAGAAGACGCAGCTCATTCAGCAGGTGGAGCAGCTT
AAGCAGGAGGTGTCCCGGCTGGCCCGCGAGAGAGACGCCTACAAGGTCAAGTGCGAGAAA
CTCGCCAACTCCGGCTTCAGGGAGGCGGGCTCCACCAGCGACAGCCCCTCCTCTCCCGAG
TTCTTTCTG

ORF Protein

Cloned ORF protein sequence for pFN21AB9658 Download

>KIBB9658  323 aa
MAAELSMGPELPTSPLAMEYVNDFDLLKFDVKKEPLGRAERPGRPCTRLQPAGSVSSTPL
STPCSSVPSSPSFSPTEQKTHLEDLYWMASNYQQMNPEALNLTPEDAVEALIGSHPVPQP
LQSFDSFRGAHHHHHHHHPHPHHAYPGAGVAHDELGPHAHPHHHHHHQASPPPSSAASPA
QQLPTSHPGPGPHATASATAAGGNGSVEDRFSDDQLVSMSVRELNRHLRGFTKDEVIRLK
QKRRTLKNRGYAQSCRYKRVQQKHHLENEKTQLIQQVEQLKQEVSRLARERDAYKVKCEK
LANSGFREAGSTSDSPSSPEFFL

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB9658 Download

>pFN21AB9658  5674 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCCGCGGAGCTGAGCATGGGGCCAGAGCTGCC
CACCAGCCCGCTGGCCATGGAGTATGTCAACGACTTCGACCTGCTCAAGTTCGACGTGAA
GAAGGAGCCACTGGGGCGCGCGGAGCGTCCGGGCAGGCCCTGCACACGCCTGCAGCCAGC
CGGCTCGGTGTCCTCCACACCGCTCAGCACTCCGTGTAGCTCCGTGCCCTCGTCGCCCAG
CTTCAGCCCGACCGAACAGAAGACACACCTCGAGGATCTGTACTGGATGGCGAGCAACTA
CCAGCAGATGAACCCCGAGGCGCTCAACCTGACGCCCGAGGACGCGGTGGAAGCGCTCAT
CGGCTCGCACCCAGTGCCACAGCCGCTGCAAAGCTTCGACAGCTTTCGCGGCGCTCACCA
CCACCACCATCACCACCACCCTCACCCGCACCACGCGTACCCGGGCGCCGGCGTGGCCCA
CGACGAGCTGGGCCCGCACGCTCACCCGCACCATCACCATCATCACCAAGCGTCGCCGCC
GCCGTCCAGCGCCGCTAGCCCGGCGCAACAGCTGCCCACTAGCCACCCCGGGCCCGGGCC
GCACGCGACGGCCTCGGCGACGGCGGCGGGCGGCAACGGCAGCGTGGAGGACCGCTTCTC
CGACGACCAGCTCGTGTCCATGTCCGTGCGCGAGCTGAACCGCCACCTGCGGGGCTTCAC
CAAGGACGAGGTGATCCGCCTGAAGCAGAAGCGGCGGACCCTGAAGAACCGGGGCTACGC
CCAGTCTTGCAGGTATAAACGCGTCCAGCAGAAGCACCACCTGGAGAATGAGAAGACGCA
GCTCATTCAGCAGGTGGAGCAGCTTAAGCAGGAGGTGTCCCGGCTGGCCCGCGAGAGAGA
CGCCTACAAGGTCAAGTGCGAGAAACTCGCCAACTCCGGCTTCAGGGAGGCGGGCTCCAC
CAGCGACAGCCCCTCCTCTCCCGAGTTCTTTCTGGTTTAAACGAATTCGGGCTCGGTACC
CGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCC
GAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGG
CGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGA
ATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACC
ATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTT
CAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATC
GAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTG
ACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAG
ACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAA
ATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATAT
TGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCG
GCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAA
GATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTT
GAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGT
GGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTAT
TCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATG
ACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTA
CTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGAT
CATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAG
CGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAA
CTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCA
GGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCC
GGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGT
ATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATC
GCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACG
CCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATA
ACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCG
CGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCT
CAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAA
GCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTC
TCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGT
AGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCG
CCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGG
CAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCT
TGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGC
TGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCG
CTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTC
AAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTT
AAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCG
GAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGG
CAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTC
ATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTT
TTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGA
TTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCG
GCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
