ZNF496 ORF clone pFN21AB6131

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AB6131

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB6131 Sequence (with vector) Restriction Map

Product ID

FHC11855

Flexi Clone PID

FXC11855

ORF Sequence

DNA sequence (1701 bp)
Protein sequence (567 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB587407]

Gene

KIBB6131

Symbol

ZNF496

Alias : NIZP1, ZFP496, ZKSCAN17, ZSCAN49

Description

zinc finger protein 496

Original Clone ID

cs00731

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1701 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 567 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS1631.1 2e-125 100.0 ZNF496 CCDS10499.1 1.4e-19 32.7 ZNF263 CCDS32568.1 5e-18 30.2 ZNF18 CCDS76957.1 5.4e-18 30.4 ZNF18 CCDS5671.2 3.4e-15 33.9 ZSCAN25 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

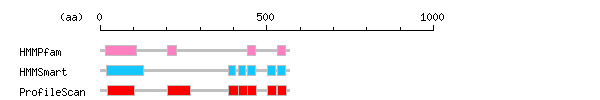

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR003309 17 110 PF02023 Transcription regulator SCAN IPR001909 203 229 PF01352 Krueppel-associated box IPR007087 443 465 PF00096 Zinc finger IPR007087 533 555 PF00096 Zinc finger HMMSmart IPR003309 18 129 SM00431 Transcription regulator SCAN IPR015880 386 406 SM00355 Zinc finger IPR015880 415 437 SM00355 Zinc finger IPR015880 443 465 SM00355 Zinc finger IPR015880 502 525 SM00355 Zinc finger IPR015880 533 555 SM00355 Zinc finger ProfileScan IPR003309 22 103 PS50804 Transcription regulator SCAN IPR001909 201 271 PS50805 Krueppel-associated box IPR007087 386 414 PS50157 Zinc finger IPR007087 415 442 PS50157 Zinc finger IPR007087 443 470 PS50157 Zinc finger IPR007087 502 530 PS50157 Zinc finger IPR007087 533 560 PS50157 Zinc finger
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) XP_016858080 567 613911 100.0 100.0 NP_116141 587 613911 100.0 100.0 XP_005273385 623 613911 94.0 99.3 XP_016858079 618 613911 94.8 100.0 XP_016858078 649 613911 89.5 94.7 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB6131 Download

>KIBB6131  1701 bp
ATGAGGAGCCCACCTGGAGAGAACCCTAGCCCCCAGGGGGAGCTTCCCAGCCCCGAGTCC
TCTCGGCGTCTCTTCCGCCGTTTCCGCTACCAGGAGGCGGCGGGCCCCCGGGAGGCCCTG
CAGCGCCTCTGGGACCTGTGCGGGGGCTGGCTGCGGCCTGAGAGGCACACCAAGGAGCAG
ATTCTGGAGCTGCTGGTGCTGGAGCAGTTCCTGGCCATCCTGCCCCGGGAGATCCAGAGC
TGGGTGCGGGCGCAGGAGCCTGAGAGCGGAGAGCAGGCTGTGGCCGCGGTGGAGGCACTG
GAACGGGAGCCCGGGAGACCCTGGCAGTGGCTCAAGCACTGTGAAGACCCTGTGGTGATT
GATGATGGGGACAGCCCTCTGGACCAGGAGCAGGAGCAGCTGCCGGTAGAGCCCCACAGC
GACCTTGCAAAGAACCAGGATGCCCAGCCCATAACCCTGGCACAGTGCCTGGGGCTCCCA
AGCAGACCACCAAGCCAGCTCAGCGGGGACCCAGTTCTGCAAGATGCTTTCCTTCTTCAG
GAAGAGAATGTGCGGGACACACAGCAGGTGACCACCCTCCAGCTACCCCCGAGTCGGGTT
TCTCCATTCAAGGACATGATTTTATGCTTCTCTGAAGAGGATTGGTCCCTTCTAGATCCT
GCCCAGACTGGCTTCTATGGAGAGTTCATCATTGGGGAGGATTACGGGGTCTCAATGCCT
CCAAACGACCTAGCTGCCCAGCCAGATCTCTCCCAGGGAGAGGAGAATGAGCCACGCGTT
CCAGAGTTGCAGGATCTCCAGGGCAAAGAAGTGCCCCAGGTCTCCTACTTGGACTCTCCA
AGTCTCCAGCCATTCCAGGTAGAAGAAAGAAGGAAACGTGAGGAGCTGCAGGTGCCAGAG
TTCCAGGCCTGCCCACAGACGGTGGTGCCTCAAAACACCTACCCAGCTGGCGGCAACCCG
CGATCTCTAGAGAACAGCCTGGATGAAGAAGTGACCATCGAGATCGTTCTCTCCAGCTCT
GGGGACGAGGACTCCCAGCATGGCCCGTACTGCACAGAAGAGCTGGGGAGCCCCACAGAG
AAGCAGCGCAGCCTCCCCGCCTCCCACCGGAGCAGCACCGAGGCCGGAGGCGAGGTGCAG
ACCTCCAAGAAGTCCTACGTGTGTCCGAACTGTGGGAAAATCTTCCGCTGGAGGGTCAAC
TTCATCCGGCATCTGCGGAGCCGCAGGGAGCAGGAGAAGCCGCACGAGTGCTCGGTGTGC
GGGGAGCTGTTCAGCGACAGCGAGGACCTGGATGGGCACCTAGAGAGCCACGAGGCCCAG
AAGCCTTACCGGTGTGGTGCCTGCGGGAAGAGCTTCCGCCTGAACTCCCACCTGCTCTCC
CACCGGCGGATACACCTGCAGCCGGACAGACTCCAGCCGGTGGAGAAGAGAGAGCAGGCG
GCATCCGAGGACGCGGACAAGGGTCCCAAAGAGCCGCTGGAAAACGGCAAGGCCAAACTG
AGCTTCCAGTGCTGTGAGTGTGGGAAGGCCTTCCAGCGGCACGACCACCTGGCTCGGCAC
CGCAGCCACTTTCACCTGAAGGACAAAGCCCGGCCCTTCCAGTGCCGGTACTGCGTCAAG
AGCTTCACGCAGAACTATGACCTCCTCCGCCACGAGCGCCTGCACATGAAGCGCCGTTCC
AAGCAGGCTCTGAACTCCTAC

ORF Protein

Cloned ORF protein sequence for pFN21AB6131 Download

>KIBB6131  567 aa
MRSPPGENPSPQGELPSPESSRRLFRRFRYQEAAGPREALQRLWDLCGGWLRPERHTKEQ
ILELLVLEQFLAILPREIQSWVRAQEPESGEQAVAAVEALEREPGRPWQWLKHCEDPVVI
DDGDSPLDQEQEQLPVEPHSDLAKNQDAQPITLAQCLGLPSRPPSQLSGDPVLQDAFLLQ
EENVRDTQQVTTLQLPPSRVSPFKDMILCFSEEDWSLLDPAQTGFYGEFIIGEDYGVSMP
PNDLAAQPDLSQGEENEPRVPELQDLQGKEVPQVSYLDSPSLQPFQVEERRKREELQVPE
FQACPQTVVPQNTYPAGGNPRSLENSLDEEVTIEIVLSSSGDEDSQHGPYCTEELGSPTE
KQRSLPASHRSSTEAGGEVQTSKKSYVCPNCGKIFRWRVNFIRHLRSRREQEKPHECSVC
GELFSDSEDLDGHLESHEAQKPYRCGACGKSFRLNSHLLSHRRIHLQPDRLQPVEKREQA
ASEDADKGPKEPLENGKAKLSFQCCECGKAFQRHDHLARHRSHFHLKDKARPFQCRYCVK
SFTQNYDLLRHERLHMKRRSKQALNSY

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB6131 Download

>pFN21AB6131  6406 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGGAGCCCACCTGGAGAGAACCCTAGCCCCCA
GGGGGAGCTTCCCAGCCCCGAGTCCTCTCGGCGTCTCTTCCGCCGTTTCCGCTACCAGGA
GGCGGCGGGCCCCCGGGAGGCCCTGCAGCGCCTCTGGGACCTGTGCGGGGGCTGGCTGCG
GCCTGAGAGGCACACCAAGGAGCAGATTCTGGAGCTGCTGGTGCTGGAGCAGTTCCTGGC
CATCCTGCCCCGGGAGATCCAGAGCTGGGTGCGGGCGCAGGAGCCTGAGAGCGGAGAGCA
GGCTGTGGCCGCGGTGGAGGCACTGGAACGGGAGCCCGGGAGACCCTGGCAGTGGCTCAA
GCACTGTGAAGACCCTGTGGTGATTGATGATGGGGACAGCCCTCTGGACCAGGAGCAGGA
GCAGCTGCCGGTAGAGCCCCACAGCGACCTTGCAAAGAACCAGGATGCCCAGCCCATAAC
CCTGGCACAGTGCCTGGGGCTCCCAAGCAGACCACCAAGCCAGCTCAGCGGGGACCCAGT
TCTGCAAGATGCTTTCCTTCTTCAGGAAGAGAATGTGCGGGACACACAGCAGGTGACCAC
CCTCCAGCTACCCCCGAGTCGGGTTTCTCCATTCAAGGACATGATTTTATGCTTCTCTGA
AGAGGATTGGTCCCTTCTAGATCCTGCCCAGACTGGCTTCTATGGAGAGTTCATCATTGG
GGAGGATTACGGGGTCTCAATGCCTCCAAACGACCTAGCTGCCCAGCCAGATCTCTCCCA
GGGAGAGGAGAATGAGCCACGCGTTCCAGAGTTGCAGGATCTCCAGGGCAAAGAAGTGCC
CCAGGTCTCCTACTTGGACTCTCCAAGTCTCCAGCCATTCCAGGTAGAAGAAAGAAGGAA
ACGTGAGGAGCTGCAGGTGCCAGAGTTCCAGGCCTGCCCACAGACGGTGGTGCCTCAAAA
CACCTACCCAGCTGGCGGCAACCCGCGATCTCTAGAGAACAGCCTGGATGAAGAAGTGAC
CATCGAGATCGTTCTCTCCAGCTCTGGGGACGAGGACTCCCAGCATGGCCCGTACTGCAC
AGAAGAGCTGGGGAGCCCCACAGAGAAGCAGCGCAGCCTCCCCGCCTCCCACCGGAGCAG
CACCGAGGCCGGAGGCGAGGTGCAGACCTCCAAGAAGTCCTACGTGTGTCCGAACTGTGG
GAAAATCTTCCGCTGGAGGGTCAACTTCATCCGGCATCTGCGGAGCCGCAGGGAGCAGGA
GAAGCCGCACGAGTGCTCGGTGTGCGGGGAGCTGTTCAGCGACAGCGAGGACCTGGATGG
GCACCTAGAGAGCCACGAGGCCCAGAAGCCTTACCGGTGTGGTGCCTGCGGGAAGAGCTT
CCGCCTGAACTCCCACCTGCTCTCCCACCGGCGGATACACCTGCAGCCGGACAGACTCCA
GCCGGTGGAGAAGAGAGAGCAGGCGGCATCCGAGGACGCGGACAAGGGTCCCAAAGAGCC
GCTGGAAAACGGCAAGGCCAAACTGAGCTTCCAGTGCTGTGAGTGTGGGAAGGCCTTCCA
GCGGCACGACCACCTGGCTCGGCACCGCAGCCACTTTCACCTGAAGGACAAAGCCCGGCC
CTTCCAGTGCCGGTACTGCGTCAAGAGCTTCACGCAGAACTATGACCTCCTCCGCCACGA
GCGCCTGCACATGAAGCGCCGTTCCAAGCAGGCTCTGAACTCCTACGTTTAAACGAATTC
GGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTG
CTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCAT
AACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAA
ACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCT
TTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTT
ATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAA
TGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATA
GCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTA
ATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGT
TTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATG
CTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATT
CCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTA
AAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGC
GGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAA
GTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGC
CGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTT
ACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACT
GCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCAC
AACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATA
CCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTA
TTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCG
GATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGAT
AAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGT
AAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGA
AATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACC
GACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAG
AATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACC
GTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACA
AAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGT
TTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACC
TGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATC
TCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGC
CCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACT
TATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTG
CTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTA
TCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCA
AACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAA
AAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACG
AAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCC
TTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAAC
CATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTT
GCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGT
TTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGT
ACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAAC
CGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
