CYR61 ORF clone pFN21AB5572

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AB5572

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB5572 Sequence (with vector) Restriction Map

Product ID

FHC07972

Flexi Clone PID

FXC07972

ORF Sequence

DNA sequence (1143 bp)
Protein sequence (381 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB587390]

Gene

KIBB5572

Symbol

CYR61

Description

cysteine-rich, angiogenic inducer, 61

Original Clone ID

ef05778

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1143 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 381 aa

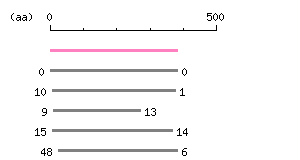

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS706.1 1.9e-118 100.0 CYR61 CCDS5151.1 1.9e-24 47.6 CTGF CCDS13336.1 6.2e-21 38.8 WISP2 CCDS6328.1 1.3e-20 44.2 NOV CCDS6372.1 8.6e-18 28.7 WISP1 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR000867 26 78 PF00219 Insulin-like growth factor-binding protein IPR001007 100 163 PF00093 von Willebrand factor IPR000884 232 272 PF00090 Thrombospondin IPR006208 284 366 PF00007 Cystine knot HMMSmart IPR000867 24 93 SM00121 Insulin-like growth factor-binding protein IPR001007 100 163 SM00214 von Willebrand factor IPR000884 231 273 SM00209 Thrombospondin IPR006207 291 360 SM00041 Cystine knot ProfileScan IPR000867 22 94 PS51323 Insulin-like growth factor-binding protein IPR001007 98 164 PS50184 von Willebrand factor IPR000884 228 273 PS50092 Thrombospondin IPR006207 286 360 PS01225 Cystine knot
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_001545 381 602369 100.0 100.0 NP_001892 349 121009 47.6 96.6 NP_002505 357 164958 44.2 93.7 NP_003873 367 603398 39.8 93.4 XP_011534522 354 208230,603400 36.2 87.7 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB5572 Download

>KIBB5572  1143 bp
ATGAGCTCCCGCATCGCCAGGGCGCTCGCCTTAGTCGTCACCCTTCTCCACTTGACCAGG
CTGGCGCTCTCCACCTGCCCCGCTGCCTGCCACTGCCCCCTGGAGGCGCCCAAGTGCGCG
CCGGGAGTCGGGCTGGTCCGGGACGGCTGCGGCTGCTGTAAGGTCTGCGCCAAGCAGCTC
AACGAGGACTGCAGCAAAACGCAGCCCTGCGACCACACCAAGGGGCTGGAATGCAACTTC
GGCGCCAGCTCCACCGCTCTGAAGGGGATCTGCAGAGCTCAGTCAGAGGGCAGACCCTGT
GAATATAACTCCAGAATCTACCAAAACGGGGAAAGTTTCCAGCCCAACTGTAAACATCAG
TGCACATGTATTGATGGCGCCGTGGGCTGCATTCCTCTGTGTCCCCAAGAACTATCTCTC
CCCAACTTGGGCTGTCCCAACCCTCGGCTGGTCAAAGTTACCGGGCAGTGCTGCGAGGAG
TGGGTCTGTGACGAGGATAGTATCAAGGACCCCATGGAGGACCAGGACGGCCTCCTTGGC
AAGGAGCTGGGATTCGATGCCTCCGAGGTGGAGTTGACGAGAAACAATGAATTGATTGCA
GTTGGAAAAGGCAGCTCACTGAAGCGGCTCCCTGTTTTTGGAATGGAGCCTCGCATCCTA
TACAACCCTTTACAAGGCCAGAAATGTATTGTTCAAACAACTTCATGGTCCCAGTGCTCA
AAGACCTGTGGAACTGGTATCTCCACACGAGTTACCAATGACAACCCTGAGTGCCGCCTT
GTGAAAGAAACCCGGATTTGTGAGGTGCGGCCTTGTGGACAGCCAGTGTACAGCAGCCTG
AAAAAGGGCAAGAAATGCAGCAAGACCAAGAAATCCCCCGAACCAGTCAGGTTTACTTAC
GCTGGATGTTTGAGTGTGAAGAAATACCGGCCCAAGTACTGCGGTTCCTGCGTGGACGGC
CGATGCTGCACGCCCCAGCTGACCAGGACTGTGAAGATGCGGTTCCGCTGCGAAGATGGG
GAGACATTTTCCAAGAACGTCATGATGATCCAGTCCTGCAAATGCAACTACAACTGCCCG
CATGCCAATGAAGCAGCGTTTCCCTTCTACAGGCTGTTCAATGACATTCACAAATTTAGG
GAC

ORF Protein

Cloned ORF protein sequence for pFN21AB5572 Download

>KIBB5572  381 aa
MSSRIARALALVVTLLHLTRLALSTCPAACHCPLEAPKCAPGVGLVRDGCGCCKVCAKQL
NEDCSKTQPCDHTKGLECNFGASSTALKGICRAQSEGRPCEYNSRIYQNGESFQPNCKHQ
CTCIDGAVGCIPLCPQELSLPNLGCPNPRLVKVTGQCCEEWVCDEDSIKDPMEDQDGLLG
KELGFDASEVELTRNNELIAVGKGSSLKRLPVFGMEPRILYNPLQGQKCIVQTTSWSQCS
KTCGTGISTRVTNDNPECRLVKETRICEVRPCGQPVYSSLKKGKKCSKTKKSPEPVRFTY
AGCLSVKKYRPKYCGSCVDGRCCTPQLTRTVKMRFRCEDGETFSKNVMMIQSCKCNYNCP
HANEAAFPFYRLFNDIHKFRD

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB5572 Download

>pFN21AB5572  5848 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGCTCCCGCATCGCCAGGGCGCTCGCCTTAGT
CGTCACCCTTCTCCACTTGACCAGGCTGGCGCTCTCCACCTGCCCCGCTGCCTGCCACTG
CCCCCTGGAGGCGCCCAAGTGCGCGCCGGGAGTCGGGCTGGTCCGGGACGGCTGCGGCTG
CTGTAAGGTCTGCGCCAAGCAGCTCAACGAGGACTGCAGCAAAACGCAGCCCTGCGACCA
CACCAAGGGGCTGGAATGCAACTTCGGCGCCAGCTCCACCGCTCTGAAGGGGATCTGCAG
AGCTCAGTCAGAGGGCAGACCCTGTGAATATAACTCCAGAATCTACCAAAACGGGGAAAG
TTTCCAGCCCAACTGTAAACATCAGTGCACATGTATTGATGGCGCCGTGGGCTGCATTCC
TCTGTGTCCCCAAGAACTATCTCTCCCCAACTTGGGCTGTCCCAACCCTCGGCTGGTCAA
AGTTACCGGGCAGTGCTGCGAGGAGTGGGTCTGTGACGAGGATAGTATCAAGGACCCCAT
GGAGGACCAGGACGGCCTCCTTGGCAAGGAGCTGGGATTCGATGCCTCCGAGGTGGAGTT
GACGAGAAACAATGAATTGATTGCAGTTGGAAAAGGCAGCTCACTGAAGCGGCTCCCTGT
TTTTGGAATGGAGCCTCGCATCCTATACAACCCTTTACAAGGCCAGAAATGTATTGTTCA
AACAACTTCATGGTCCCAGTGCTCAAAGACCTGTGGAACTGGTATCTCCACACGAGTTAC
CAATGACAACCCTGAGTGCCGCCTTGTGAAAGAAACCCGGATTTGTGAGGTGCGGCCTTG
TGGACAGCCAGTGTACAGCAGCCTGAAAAAGGGCAAGAAATGCAGCAAGACCAAGAAATC
CCCCGAACCAGTCAGGTTTACTTACGCTGGATGTTTGAGTGTGAAGAAATACCGGCCCAA
GTACTGCGGTTCCTGCGTGGACGGCCGATGCTGCACGCCCCAGCTGACCAGGACTGTGAA
GATGCGGTTCCGCTGCGAAGATGGGGAGACATTTTCCAAGAACGTCATGATGATCCAGTC
CTGCAAATGCAACTACAACTGCCCGCATGCCAATGAAGCAGCGTTTCCCTTCTACAGGCT
GTTCAATGACATTCACAAATTTAGGGACGTTTAAACGAATTCGGGCTCGGTACCCGGGGA
TCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAGCCCGAAAGG
AAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTGGGGCGGCCG
CTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACTAGAATGCAG
TGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTAACCATTATA
AGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAGGTTCAGGGG
GAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAAATCGAATTC
TAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGACATTC
ATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCTTAGACGTCA
GGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTCTAAATACAT
TCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAATATTGAAAA
AGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTTGCGGCATTT
TGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCTGAAGATCAG
TTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATCCTTGAGAGT
TTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTATGTGGCGCG
GTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACACTATTCTCAG
AATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGCATGACAGTA
AGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAACTTACTTCTG
ACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGGGATCATGTA
ACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGACGAGCGTGAC
ACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGCGAACTACTT
ACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTTGCAGGACCA
CTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGAGCCGGTGAG
CGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCCCGTATCGTA
GTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAGATCGCTGAG
ATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCGACGCCCAAC
CGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAG
GAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGC
TGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTC
AGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCC
TCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTT
CGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCG
TTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTAT
CCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAG
CCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGT
GGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGC
CAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTA
GCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAG
ATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGA
TTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATA
CAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTT
CAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGG
TTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCT
GTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGG
TAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACG
ATGCGTCCGGCGTAGAGGATCGAGATCT
