Predicted genomic structure of KIEE6567

Clone name	:	KIEE6567
Sequence length of the cDNA	:	543 bp
Corresponding genomic sequence	:	gi568815575f_2652275
Length of the corresponding genomic region	:	62103 bp
Chromosome No.	:	X
Coding region of KIEE6567	:	1..543

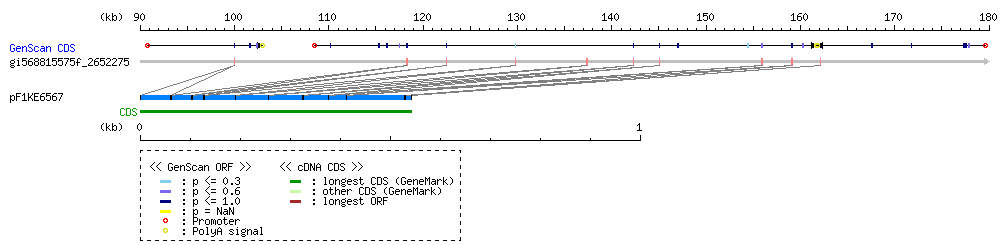

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 61 1 21 100001 100061 GT..AG 18214 100

2 62 103 21 35 118276 118317 GT..AG 4124 100

3 104 127 35 43 122442 122465 GT..AG 7326 100

4 128 190 43 64 129792 129854 GT..AG 7515 100

5 191 256 64 86 137370 137439 GT..AG 4821 94

6 257 325 86 109 142261 142329 GT..AG 2706 100

7 326 376 109 126 145036 145086 GT..AG 10824 100

8 377 412 126 138 155911 155946 GT..AG 3115 100

9 413 529 138 177 159062 159178 GT..AG 2911 100

10 530 543 177 181 162090 162103 - 100

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	61	1	21	100001	100061	GT..AG	18214	100
2	62	103	21	35	118276	118317	GT..AG	4124	100
3	104	127	35	43	122442	122465	GT..AG	7326	100
4	128	190	43	64	129792	129854	GT..AG	7515	100
5	191	256	64	86	137370	137439	GT..AG	4821	94
6	257	325	86	109	142261	142329	GT..AG	2706	100
7	326	376	109	126	145036	145086	GT..AG	10824	100
8	377	412	126	138	155911	155946	GT..AG	3115	100
9	413	529	138	177	159062	159178	GT..AG	2911	100
10	530	543	177	181	162090	162103	-		100
