Predicted genomic structure of KIBB3144

Clone name	:	KIBB3144
Sequence length of the cDNA	:	1725 bp
Corresponding genomic sequence	:	gi568815575r_48930161
Length of the corresponding genomic region	:	13066 bp
Chromosome No.	:	X
Coding region of KIBB3144	:	1..1725

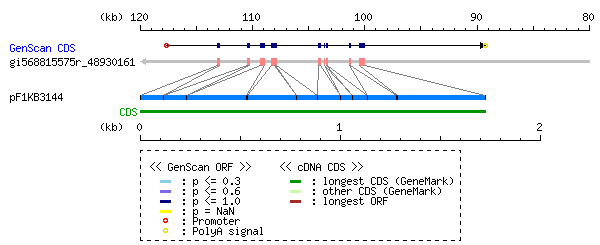

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 116 1 39 113066 112951 GT..AG 2542 100

2 117 230 39 77 110408 110295 GT..AG 1044 100

3 231 534 77 178 109250 108947 GT..AG 664 100

4 535 780 179 260 108282 108037 GT..AG 82 100

5 781 885 261 295 107954 107850 GT..AG 3758 100

6 886 1003 296 335 104091 103974 GT..AG 351 100

7 1004 1060 335 354 103622 103566 GT..AG 185 100

8 1061 1136 354 379 103380 103305 GT..AG 1920 100

9 1137 1284 379 428 101384 101237 GT..AG 795 100

10 1285 1725 429 575 100441 100001 - 99

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	116	1	39	113066	112951	GT..AG	2542	100
2	117	230	39	77	110408	110295	GT..AG	1044	100
3	231	534	77	178	109250	108947	GT..AG	664	100
4	535	780	179	260	108282	108037	GT..AG	82	100
5	781	885	261	295	107954	107850	GT..AG	3758	100
6	886	1003	296	335	104091	103974	GT..AG	351	100
7	1004	1060	335	354	103622	103566	GT..AG	185	100
8	1061	1136	354	379	103380	103305	GT..AG	1920	100
9	1137	1284	379	428	101384	101237	GT..AG	795	100
10	1285	1725	429	575	100441	100001	-		99
