NDUFB9 ORF clone pF1KB6861

KOP
KOP Flexi HaloTag ORF List search

Flexi ORF Clone pF1KB6861

How to Order Order Information

Clone info.

Species

human

Clone Name

pF1KB6861 Sequence (with vector) Restriction Map

Product ID

FXC06128

HaloTag Clone PID

FHC06128

ORF Sequence

DNA sequence (537 bp)
Protein sequence (179 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pF1K Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB463917]

Gene

KIBB6861

Symbol

NDUFB9

Alias : B22, CI-B22, LYRM3, MC1DN24, UQOR22

Description

NADH dehydrogenase (ubiquinone) 1 beta subcomplex, 9, 22kDa, transcript variant 1

Original Clone ID

cs01461

Features of the cloned ORF sequence

Description

Length: 537 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 179 aa

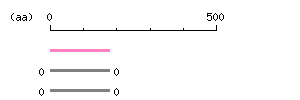

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS6352.1 1.1e-75 100.0 NDUFB9 CCDS83324.1 2.3e-57 93.9 NDUFB9 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR008011 14 73 PF05347 Complex 1 LYR protein
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_004996 179 252010,601445 100.0 100.0 NP_001298097 168 252010,601445 93.9 100.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pF1KB6861 Download

>KIBB6861  537 bp
ATGGCGTTCTTGGCGTCGGGACCCTACCTGACCCATCAGCAAAAGGTGTTGCGGCTTTAT
AAGCGGGCGCTACGCCACCTCGAGTCGTGGTGCGTCCAGAGAGACAAATACCGATACTTT
GCTTGTTTGATGAGAGCCCGGTTTGAAGAACATAAGAATGAAAAGGATATGGCGAAGGCC
ACCCAGCTGCTGAAGGAGGCCGAGGAAGAATTCTGGTACCGTCAGCATCCACAGCCATAC
ATCTTCCCTGACTCTCCTGGGGGCACCTCCTATGAGAGATACGATTGCTACAAGGTCCCA
GAATGGTGCTTAGATGACTGGCATCCTTCTGAGAAGGCAATGTATCCTGATTACTTTGCC
AAGAGAGAACAGTGGAAGAAACTGCGGAGGGAAAGCTGGGAACGAGAGGTTAAGCAGCTG
CAGGAGGAAACGCCACCTGGTGGTCCTTTAACTGAAGCTTTGCCCCCTGCCCGAAAGGAA
GGTGATTTGCCCCCACTGTGGTGGTATATTGTGACCAGACCCCGGGAGCGGCCCATG

ORF Protein

Cloned ORF protein sequence for pF1KB6861 Download

>KIBB6861  179 aa
MAFLASGPYLTHQQKVLRLYKRALRHLESWCVQRDKYRYFACLMRARFEEHKNEKDMAKA
TQLLKEAEEEFWYRQHPQPYIFPDSPGGTSYERYDCYKVPEWCLDDWHPSEKAMYPDYFA
KREQWKKLRRESWEREVKQLQEETPPGGPLTEALPPARKEGDLPPLWWYIVTRPRERPM

ORF+Vector

Nucleotide Sequence (with vector) for pF1KB6861 Download

>pF1KB6861  3650 bp
GGATCTCGATCCCGCGAAATTAATACGACTCACTATAGGGGAATTGTGAGCGGATAACAA
TTCCCCACTAGTAATAATTTTCTTTAACTTTAGTAAGGAGCGATCGCCATGGCGTTCTTG
GCGTCGGGACCCTACCTGACCCATCAGCAAAAGGTGTTGCGGCTTTATAAGCGGGCGCTA
CGCCACCTCGAGTCGTGGTGCGTCCAGAGAGACAAATACCGATACTTTGCTTGTTTGATG
AGAGCCCGGTTTGAAGAACATAAGAATGAAAAGGATATGGCGAAGGCCACCCAGCTGCTG
AAGGAGGCCGAGGAAGAATTCTGGTACCGTCAGCATCCACAGCCATACATCTTCCCTGAC
TCTCCTGGGGGCACCTCCTATGAGAGATACGATTGCTACAAGGTCCCAGAATGGTGCTTA
GATGACTGGCATCCTTCTGAGAAGGCAATGTATCCTGATTACTTTGCCAAGAGAGAACAG
TGGAAGAAACTGCGGAGGGAAAGCTGGGAACGAGAGGTTAAGCAGCTGCAGGAGGAAACG
CCACCTGGTGGTCCTTTAACTGAAGCTTTGCCCCCTGCCCGAAAGGAAGGTGATTTGCCC
CCACTGTGGTGGTATATTGTGACCAGACCCCGGGAGCGGCCCATGGTTTAAACGAATTCG
AGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGC
TAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATA
ACCCCTTGGGGCCTCTAAACGGGTCTTGAGGGGTTTTTTGCTGAAAGGAGGAACTATATC
CGGTTCGCTTGCTGTCCATAAAACCGCCCAGTCTAGCTATCGCCATGTAAGCCCACTGCA
AGCTACCTGCTTTCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAGCTGAC
ATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTGTTCCGCTTCCTTTA
GCAGCCCTTGCGCCCTGAGTGCTTGCGGCAGCGTGAGCTTCAAAAGAATTGCCAGCTGGG
GCGCCCTCTGGTAAGGTTGGGAAGCCCTGCAAAGTAAACTGGATGGCTTTCTTGCCGCCA
AGGATCTGATGGCGCAGGGGATCAAGATCTGATCAAGAGACAGGATGACGGTCGTTTCGC
ATGCTTGAACAAGATGGATTGCACGCAGGTTCTCCGGCCGCTTGGGTGGAGAGGCTATTC
GGCTATGACTGGGCACAACAGACAATCGGCTGCTCTGATGCCGCCGTGTTCCGGCTGTCA
GCGCAGGGGCGCCCGGTTCTTTTTGTCAAGACCGACCTGTCCGGTGCCCTGAATGAACTG
CAGGACGAGGCAGCGCGGCTATCGTGGCTGGCCACGACGGGCGTTCCTTGCGCAGCTGTG
CTCGACGTTGTCACTGAAGCGGGAAGGGACTGGCTGCTATTGGGCGAAGTGCCGGGGCAG
GATCTCCTGTCATCTCACCTTGCTCCTGCCGAGAAAGTATCCATCATGGCTGATGCAATG
CGGCGGCTGCATACGCTTGATCCGGCTACCTGCCCATTCGACCACCAAGCGAAACATCGC
ATCGAGCGAGCACGCACTCGGATGGAAGCCGGTCTTGTCGATCAGGATGATCTGGACGAA
GAGCATCAGGGGCTCGCGCCAGCCGAACTGTTCGCCAGGCTCAAGGCGCGTATGCCGGAT
GGTGAGGATCTCGTCGTGACTCATGGCGATGCCTGCTTGCCGAATATCATGGTGGAAAAT
GGCCGCTTTTCTGGATTCATCGACTGTGGCCGGCTGGGTGTGGCGGACCGCTATCAGGAC
ATAGCGTTGGCTACCCGTGATATTGCTGAAGAGCTTGGCGGCGAATGGGCTGACCGCTTC
CTCGTGCTTTACGGTATCGCCGCTCCCGATTCGCAGCGCATCGCCTTCTATCGCCTTCTT
GACGAGTTCTTCTGAGCGGGACTCTGGGGTTCGAAATGACCGACCAAGCGACGCCCAACC
GGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGGATAACGCAGG
AAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGGCCGCGTTGCT
GGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGACGCTCAAGTCA
GAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTGGAAGCTCCCT
CGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCTTTCTCCCTTC
GGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGGTGTAGGTCGT
TCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCTGCGCCTTATC
CGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCACTGGCAGCAGC
CACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGTTCTTGAAGTG
GTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTCTGCTGAAGCC
AGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCACCGCTGGTAG
CGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGATTTCAAGAAGA
TCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCACGTTAAGGGAT
TTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGTCCGGAAATAC
AGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAATGGCAGCTTC
AGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTATTCATACGGT
TAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCATTTTTACCTG
TCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAGGGATTATGGT
AAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACTCCGGCCACGA
TGCGTCCGGCGTAGAGGATCGAGATCTTTTCAGCCTGATACAGATTAAATCAGAACGCAG
AAGCGGTCTGATAAAACAGAATTTGCCTGGCGGCAGTAGCGCGGTGGTCCCACCTGACCC
CATGCCGAACTCAGAAGTGAAACGCCGTAGCGCCGATGGTAGTGTGGGGTCTCCCCATGC
GAGAGTAGGGAACTGCCAGGCATCAAATAAAACGAAAGGCTCAGTCGAAAGACTGGGCCT
TTCGTTTTATCTGTTGTTTGTCGGTGAACGCTCTCCTGAGTAGGACAAATCCGCCGGGAG
CGGATTTGAACGTTGCGAAGCAACGGCCCGGAGGGTGGCGGGCAGGACGCCCGCCATAAA
CTGCCAGGCATCAAATTAAGCAGAAGGCCATCCTGACGGATGGCCTTTTTGCGTTTCTAC
AAACTCTTTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCAT
