Predicted genomic structure of KIEE3950

KOP
KOP HaloTag ORF List Flexi search

Predicted genomic structure of KIEE3950

Clone name	:	KIEE3950
Sequence length of the cDNA	:	2349 bp
Corresponding genomic sequence	:	gi568815597f_231062970
Length of the corresponding genomic region	:	52468 bp
Chromosome No.	:	1
Coding region of KIEE3950	:	1..2349

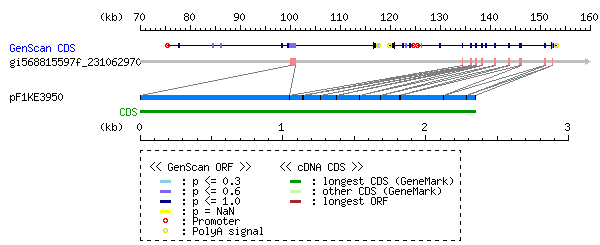

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 1044 1 348 100001 101044 GT..AG 33357 100

2 1045 1140 349 380 134402 134497 GT..AG 1580 100

3 1141 1263 381 421 136078 136200 GT..AG 978 100

4 1264 1374 422 458 137179 137289 GT..AG 1099 100

5 1375 1534 459 512 138389 138548 GT..AG 2349 100

6 1535 1680 512 560 140898 141043 GT..AG 2639 100

7 1681 1819 561 607 143683 143821 GT..AG 2156 100

8 1820 2123 607 708 145978 146281 GT..AG 4564 100

9 2124 2286 708 762 150846 151008 GT..AG 1397 100

10 2287 2349 763 783 152406 152468 - 100

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	1044	1	348	100001	101044	GT..AG	33357	100
2	1045	1140	349	380	134402	134497	GT..AG	1580	100
3	1141	1263	381	421	136078	136200	GT..AG	978	100
4	1264	1374	422	458	137179	137289	GT..AG	1099	100
5	1375	1534	459	512	138389	138548	GT..AG	2349	100
6	1535	1680	512	560	140898	141043	GT..AG	2639	100
7	1681	1819	561	607	143683	143821	GT..AG	2156	100
8	1820	2123	607	708	145978	146281	GT..AG	4564	100
9	2124	2286	708	762	150846	151008	GT..AG	1397	100
10	2287	2349	763	783	152406	152468	-		100
