Predicted genomic structure of KIBB0454

Clone name	:	KIBB0454
Sequence length of the cDNA	:	2775 bp
Corresponding genomic sequence	:	gi568815578r_51291399
Length of the corresponding genomic region	:	151101 bp
Chromosome No.	:	20
Coding region of KIBB0454	:	1..2775

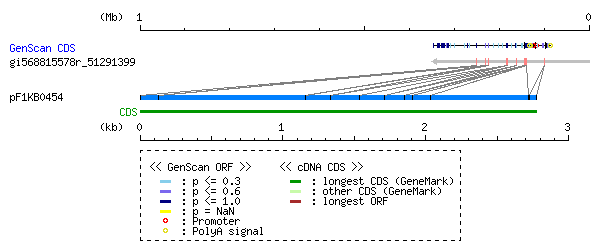

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 130 1 44 251101 250972 GT..AG 18259 100

2 131 1160 44 387 232712 231683 GT..AG 6125 100

3 1161 1332 387 444 225557 225386 GT..AG 41123 100

4 1333 1535 445 512 184262 184060 GT..AG 1305 100

5 1536 1708 512 570 182754 182582 GT..AG 19291 100

6 1709 1849 570 617 163290 163150 GT..AG 18786 100

7 1850 1905 617 635 144363 144308 GT..AG 391 100

8 1906 2032 636 678 143916 143790 GT..AG 2431 100

9 2033 2722 678 908 141358 140669 GT..AG 40615 100

10 2723 2775 908 925 100053 100001 - 100

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	130	1	44	251101	250972	GT..AG	18259	100
2	131	1160	44	387	232712	231683	GT..AG	6125	100
3	1161	1332	387	444	225557	225386	GT..AG	41123	100
4	1333	1535	445	512	184262	184060	GT..AG	1305	100
5	1536	1708	512	570	182754	182582	GT..AG	19291	100
6	1709	1849	570	617	163290	163150	GT..AG	18786	100
7	1850	1905	617	635	144363	144308	GT..AG	391	100
8	1906	2032	636	678	143916	143790	GT..AG	2431	100
9	2033	2722	678	908	141358	140669	GT..AG	40615	100
10	2723	2775	908	925	100053	100001	-		100
