GPR161 ORF clone pFN21AE9459

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE9459

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE9459 Sequence (with vector) Restriction Map

Product ID

FHC09249

ORF Sequence

DNA sequence (1587 bp)
Protein sequence (529 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE9459

Symbol

GPR161

Alias : RE2

Description

G protein-coupled receptor 161, transcript variant 3

Original Clone ID

cp99459

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1587 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 529 aa

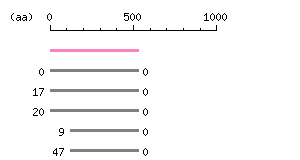

Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS1268.1 7.7e-176 100.0 GPR161 CCDS72978.1 7.9e-176 100.0 GPR161 CCDS58043.1 7.9e-176 100.0 GPR161 CCDS58045.1 3.5e-136 99.5 GPR161 CCDS58044.1 4.2e-136 100.0 GPR161 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.
Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR000276 29 53 PR00237 GPCR IPR000276 62 83 PR00237 GPCR IPR000276 107 129 PR00237 GPCR IPR000276 143 164 PR00237 GPCR IPR000276 189 212 PR00237 GPCR IPR000276 268 292 PR00237 GPCR IPR000276 306 332 PR00237 GPCR HMMPfam IPR000276 44 324 PF00001 GPCR ProfileScan IPR017452 44 324 PS50262 GPCR
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 27 IITQFIAIIVITIFVCLGNLVIV 49 PRIMARY 23 2 66 VFSLTLSNFLLSVLVLPFVVTSS 88 PRIMARY 23 3 98 VWCNFSALLYLLISSASMLTLGV 120 PRIMARY 23 4 143 RAVMALVYIWLHSLIGCLPPLFG 165 SECONDARY 23 5 192 WQIWCALFPFLVMLVCYGFIFRV 214 PRIMARY 23 6 270 ITILVVLGAFMVTWGPYMVVIAS 292 PRIMARY 23 7 297 GKSSVSPSLETWATWLSFASAVC 319 SECONDARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) XP_011507678 529 612250 100.0 100.0 XP_011507680 529 612250 100.0 100.0 XP_011507677 529 612250 100.0 100.0 XP_005245114 529 612250 100.0 100.0 XP_016856351 529 612250 100.0 100.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE9459 Download

>KIEE9459  1587 bp
ATGAGCCTCAACTCCTCCCTCAGCTGCAGGAAGGAGCTGAGTAATCTCACTGAGGAGGAG
GGTGGCGAAGGGGGCGTCATCATCACCCAGTTCATCGCCATCATTGTCATCACCATTTTT
GTCTGCCTGGGAAACCTGGTCATCGTGGTCACCTTGTACAAGAAGTCCTACCTCCTCACC
CTCAGCAACAAGTTCGTCTTCAGCCTGACTCTGTCCAACTTCCTGCTGTCCGTGTTGGTG
CTGCCTTTTGTGGTGACGAGCTCCATCCGCAGGGAATGGATCTTTGGTGTAGTGTGGTGC
AACTTCTCTGCCCTCCTCTACCTGCTGATCAGCTCTGCCAGCATGCTAACCCTCGGGGTC
ATTGCCATCGACCGCTACTATGCTGTCCTGTACCCCATGGTGTACCCCATGAAGATCACA
GGGAACCGGGCTGTGATGGCACTTGTCTACATCTGGCTTCACTCGCTCATCGGCTGCCTG
CCACCCCTGTTTGGTTGGTCATCCGTGGAGTTTGACGAGTTCAAATGGATGTGTGTGGCT
GCTTGGCACCGGGAGCCTGGCTACACGGCCTTCTGGCAGATCTGGTGTGCCCTCTTCCCC
TTTCTGGTCATGCTGGTGTGCTATGGCTTCATCTTCCGCGTGGCCAGGGTCAAGGCACGC
AAGGTGCACTGTGGCACAGTCGTCATCGTGGAGGAGGATGCTCAGAGGACCGGGAGGAAG
AACTCCAGCACCTCCACCTCCTCTTCAGGCAGCAGGAGGAATGCCTTTCAGGGTGTGGTC
TACTCGGCCAACCAGTGCAAAGCCCTCATCACCATCCTGGTGGTCCTCGGTGCCTTCATG
GTCACCTGGGGCCCCTACATGGTTGTCATCGCCTCTGAGGCCCTCTGGGGGAAAAGCTCC
GTCTCCCCGAGCCTGGAGACTTGGGCCACATGGCTGTCCTTTGCCAGCGCTGTCTGCCAC
CCCCTGATCTATGGACTCTGGAACAAGACAGTTCGCAAAGAACTACTGGGCATGTGCTTT
GGGGACCGGTATTATCGGGAACCATTTGTGCAACGACAGAGGACTTCCAGGCTCTTCAGC
ATTTCCAACAGGATCACAGACCTGGGCCTGTCCCCACACCTCACTGCGCTCATGGCAGGT
GGACAGCCCCTGGGGCACAGCAGCAGCACGGGGGACACTGGCTTCAGCTGCTCCCAGGAC
TCAGGGACAGATATGATGCTGCTTGAGGACTACACGTCTGATGACAACCCTCCCTCTCAC
TGCACTTGCCCACCCAAGAGAAGGAGCTCGGTGACATTTGAGGATGAAGTGGAACAAATC
AAAGAAGCTGCCAAGAACTCGATTCTTCATGTGAAAGCTGAAGTACACAAGTCCTTGGAC
AGTTACGCAGCAAGCTTGGCCAAAGCCATTGAGGCCGAAGCCAAAATCAACTTATTTGGG
GAGGAGGCTTTGCCAGGGGTCTTGGTTACAGCACGGACTGTCCCGGGGGGCGGCTTCGGG
GGCCGCCGAGGCAGCAGAACTCTTGTGAGCCAGAGGCTGCAGTTGCAGAGCATCGAAGAA
GGAGATGTTTTAGCTGCCGAGCAGAGA

ORF Protein

Cloned ORF protein sequence for pFN21AE9459 Download

>KIEE9459  529 aa
MSLNSSLSCRKELSNLTEEEGGEGGVIITQFIAIIVITIFVCLGNLVIVVTLYKKSYLLT
LSNKFVFSLTLSNFLLSVLVLPFVVTSSIRREWIFGVVWCNFSALLYLLISSASMLTLGV
IAIDRYYAVLYPMVYPMKITGNRAVMALVYIWLHSLIGCLPPLFGWSSVEFDEFKWMCVA
AWHREPGYTAFWQIWCALFPFLVMLVCYGFIFRVARVKARKVHCGTVVIVEEDAQRTGRK
NSSTSTSSSGSRRNAFQGVVYSANQCKALITILVVLGAFMVTWGPYMVVIASEALWGKSS
VSPSLETWATWLSFASAVCHPLIYGLWNKTVRKELLGMCFGDRYYREPFVQRQRTSRLFS
ISNRITDLGLSPHLTALMAGGQPLGHSSSTGDTGFSCSQDSGTDMMLLEDYTSDDNPPSH
CTCPPKRRSSVTFEDEVEQIKEAAKNSILHVKAEVHKSLDSYAASLAKAIEAEAKINLFG
EEALPGVLVTARTVPGGGFGGRRGSRTLVSQRLQLQSIEEGDVLAAEQR

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE9459 Download

>pFN21AE9459  6292 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGCCTCAACTCCTCCCTCAGCTGCAGGAAGGA
GCTGAGTAATCTCACTGAGGAGGAGGGTGGCGAAGGGGGCGTCATCATCACCCAGTTCAT
CGCCATCATTGTCATCACCATTTTTGTCTGCCTGGGAAACCTGGTCATCGTGGTCACCTT
GTACAAGAAGTCCTACCTCCTCACCCTCAGCAACAAGTTCGTCTTCAGCCTGACTCTGTC
CAACTTCCTGCTGTCCGTGTTGGTGCTGCCTTTTGTGGTGACGAGCTCCATCCGCAGGGA
ATGGATCTTTGGTGTAGTGTGGTGCAACTTCTCTGCCCTCCTCTACCTGCTGATCAGCTC
TGCCAGCATGCTAACCCTCGGGGTCATTGCCATCGACCGCTACTATGCTGTCCTGTACCC
CATGGTGTACCCCATGAAGATCACAGGGAACCGGGCTGTGATGGCACTTGTCTACATCTG
GCTTCACTCGCTCATCGGCTGCCTGCCACCCCTGTTTGGTTGGTCATCCGTGGAGTTTGA
CGAGTTCAAATGGATGTGTGTGGCTGCTTGGCACCGGGAGCCTGGCTACACGGCCTTCTG
GCAGATCTGGTGTGCCCTCTTCCCCTTTCTGGTCATGCTGGTGTGCTATGGCTTCATCTT
CCGCGTGGCCAGGGTCAAGGCACGCAAGGTGCACTGTGGCACAGTCGTCATCGTGGAGGA
GGATGCTCAGAGGACCGGGAGGAAGAACTCCAGCACCTCCACCTCCTCTTCAGGCAGCAG
GAGGAATGCCTTTCAGGGTGTGGTCTACTCGGCCAACCAGTGCAAAGCCCTCATCACCAT
CCTGGTGGTCCTCGGTGCCTTCATGGTCACCTGGGGCCCCTACATGGTTGTCATCGCCTC
TGAGGCCCTCTGGGGGAAAAGCTCCGTCTCCCCGAGCCTGGAGACTTGGGCCACATGGCT
GTCCTTTGCCAGCGCTGTCTGCCACCCCCTGATCTATGGACTCTGGAACAAGACAGTTCG
CAAAGAACTACTGGGCATGTGCTTTGGGGACCGGTATTATCGGGAACCATTTGTGCAACG
ACAGAGGACTTCCAGGCTCTTCAGCATTTCCAACAGGATCACAGACCTGGGCCTGTCCCC
ACACCTCACTGCGCTCATGGCAGGTGGACAGCCCCTGGGGCACAGCAGCAGCACGGGGGA
CACTGGCTTCAGCTGCTCCCAGGACTCAGGGACAGATATGATGCTGCTTGAGGACTACAC
GTCTGATGACAACCCTCCCTCTCACTGCACTTGCCCACCCAAGAGAAGGAGCTCGGTGAC
ATTTGAGGATGAAGTGGAACAAATCAAAGAAGCTGCCAAGAACTCGATTCTTCATGTGAA
AGCTGAAGTACACAAGTCCTTGGACAGTTACGCAGCAAGCTTGGCCAAAGCCATTGAGGC
CGAAGCCAAAATCAACTTATTTGGGGAGGAGGCTTTGCCAGGGGTCTTGGTTACAGCACG
GACTGTCCCGGGGGGCGGCTTCGGGGGCCGCCGAGGCAGCAGAACTCTTGTGAGCCAGAG
GCTGCAGTTGCAGAGCATCGAAGAAGGAGATGTTTTAGCTGCCGAGCAGAGAGTTTAAAC
GAATTCGGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATC
CGGCTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAAC
TAGCATAACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTT
GGACAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCT
ATTGCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATT
CATTTTATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTC
TACAAATGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTC
CAGATAGCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTC
TACGTAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCT
ATTTGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGA
TAAATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCC
CTTATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTG
AAAGTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTC
AACAGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACT
TTCAAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTC
GGTCGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAG
CATCTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGAT
AACACTGCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTT
TTGCACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAA
GCCATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGC
AAACTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATG
GAGGCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATT
GCTGATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCA
GATGGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGAT
GAACGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAA
ATGACCGACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTAT
CCACAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCA
GGAACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGC
ATCACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACC
AGGCGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCG
GATACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTA
GGTATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCG
TTCAGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGAC
ACGACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAG
GCGGTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTAT
TTGGTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGAT
CCGGCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGC
GCAGAAAAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGT
GGAACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCT
AGATCCTTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGG
TGAAACCATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCT
CTGGTTGCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCG
GGTGGTTTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCG
GTGCGTACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAG
ATAAACCGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
