OR8K5 ORF clone pFN21AE5385

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AE5385

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AE5385 Sequence (with vector) Restriction Map

Product ID

FHC27995

ORF Sequence

DNA sequence (921 bp)
Protein sequence (307 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

Gene

KIEE5385

Symbol

OR8K5

Alias : OR11-174

Description

olfactory receptor, family 8, subfamily K, member 5

Original Clone ID

cp95385

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 921 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 307 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS31521.1 2e-81 100.0 OR8K5 CCDS31528.1 1.1e-51 64.3 OR8K1 CCDS31520.1 3.4e-46 57.3 OR8J3 CCDS31529.1 3.4e-46 57.1 OR8J1 CCDS41647.1 1.2e-45 57.7 OR8U1 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

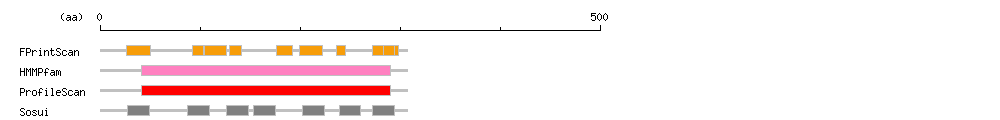

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR000276 26 50 PR00237 GPCR IPR000725 92 103 PR00245 Olfactory receptor IPR000276 104 126 PR00237 GPCR IPR000725 129 141 PR00245 Olfactory receptor IPR000725 176 192 PR00245 Olfactory receptor IPR000276 199 222 PR00237 GPCR IPR000725 236 245 PR00245 Olfactory receptor IPR000276 272 298 PR00237 GPCR IPR000725 283 294 PR00245 Olfactory receptor HMMPfam IPR000276 41 290 PF00001 GPCR ProfileScan IPR017452 41 290 PS50262 GPCR
Prediction of transmembrane (TM) segments Method No. N terminal transmembrane region C terminal type length SOSUI2 1 27 LFGVFLVIYLITVVGNLTMIILT 49 PRIMARY 23 2 87 VDRNTISYYACAAQLAFFLMFII 109 PRIMARY 23 3 126 ICNPLLYYVIMSQRLCHVLVGIQ 148 SECONDARY 23 4 153 TFQALMFTIKIFTLTFCGSNVIS 175 SECONDARY 23 5 202 FSVFNLISSFLIVLVSYMLILLA 224 PRIMARY 23 6 239 STCGSHLTVVVVFYGSLLFMYM 260 SECONDARY 22 7 272 KMASVFYTLVIPMLNPLIYSLRN 294 SECONDARY 23
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_006628 314 608496 49.7 98.7 NP_003688 314 608492 47.5 98.0 XP_011520809 312 603232 43.4 99.0 NP_036492 312 603232 43.4 99.0 XP_011520808 322 603232 43.4 99.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AE5385 Download

>KIEE5385  921 bp
ATGGGCCAACACAATCTAACAGTGCTAACTGAATTCATTCTGATGGAACTCACAAGGCGG
CCTGAGCTGCAGATTCCCCTTTTTGGAGTCTTCCTCGTCATCTACCTAATCACAGTGGTG
GGCAACCTAACTATGATCATTTTGACCAAACTGGACTCCCACTTACATACACCTATGTAC
TTTTCTATCAGACATTTGGCTTTTGTTGATCTTGGTAATTCTACTGTCATTTGTCCCAAG
GTGCTGGCAAATTTTGTTGTGGATCGAAATACTATTTCCTATTATGCATGTGCTGCACAG
CTGGCATTCTTCCTTATGTTCATTATCAGTGAATTTTTCATCCTGTCAGCCATGGCCTAT
GACCGCTATGTGGCCATTTGTAACCCTCTGCTCTATTATGTTATTATGTCTCAGCGACTG
TGTCATGTACTGGTGGGCATTCAATATCTCTACAGCACATTTCAGGCTCTGATGTTCACT
ATTAAGATTTTTACATTGACCTTCTGTGGCTCTAATGTCATCAGTCATTTTTACTGTGAT
GATGTTCCTTTGCTACCTATGCTTTGCTCAAATGCACAGGAAATAGAATTGTTGAGCATA
CTATTTTCTGTATTTAATTTGATCTCCTCCTTTCTGATAGTCTTAGTGTCCTACATGTTG
ATTTTGTTAGCTATATGTCAAATGCATTCTGCAGAGGGCAGGAAAAAGGCTTTCTCCACA
TGTGGTTCCCATTTGACAGTGGTGGTTGTGTTCTATGGGTCTCTACTCTTCATGTACATG
CAGCCCAATTCCACTCACTTCTTTGATACTGATAAAATGGCTTCTGTGTTTTACACTTTA
GTAATCCCCATGCTTAACCCTTTGATTTACAGCTTAAGAAACGAAGAGGTGAAAAATGCC
TTCTATAAGCTCTTTGAGAAT

ORF Protein

Cloned ORF protein sequence for pFN21AE5385 Download

>KIEE5385  307 aa
MGQHNLTVLTEFILMELTRRPELQIPLFGVFLVIYLITVVGNLTMIILTKLDSHLHTPMY
FSIRHLAFVDLGNSTVICPKVLANFVVDRNTISYYACAAQLAFFLMFIISEFFILSAMAY
DRYVAICNPLLYYVIMSQRLCHVLVGIQYLYSTFQALMFTIKIFTLTFCGSNVISHFYCD
DVPLLPMLCSNAQEIELLSILFSVFNLISSFLIVLVSYMLILLAICQMHSAEGRKKAFST
CGSHLTVVVVFYGSLLFMYMQPNSTHFFDTDKMASVFYTLVIPMLNPLIYSLRNEEVKNA
FYKLFEN

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AE5385 Download

>pFN21AE5385  5626 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGGCCAACACAATCTAACAGTGCTAACTGAATT
CATTCTGATGGAACTCACAAGGCGGCCTGAGCTGCAGATTCCCCTTTTTGGAGTCTTCCT
CGTCATCTACCTAATCACAGTGGTGGGCAACCTAACTATGATCATTTTGACCAAACTGGA
CTCCCACTTACATACACCTATGTACTTTTCTATCAGACATTTGGCTTTTGTTGATCTTGG
TAATTCTACTGTCATTTGTCCCAAGGTGCTGGCAAATTTTGTTGTGGATCGAAATACTAT
TTCCTATTATGCATGTGCTGCACAGCTGGCATTCTTCCTTATGTTCATTATCAGTGAATT
TTTCATCCTGTCAGCCATGGCCTATGACCGCTATGTGGCCATTTGTAACCCTCTGCTCTA
TTATGTTATTATGTCTCAGCGACTGTGTCATGTACTGGTGGGCATTCAATATCTCTACAG
CACATTTCAGGCTCTGATGTTCACTATTAAGATTTTTACATTGACCTTCTGTGGCTCTAA
TGTCATCAGTCATTTTTACTGTGATGATGTTCCTTTGCTACCTATGCTTTGCTCAAATGC
ACAGGAAATAGAATTGTTGAGCATACTATTTTCTGTATTTAATTTGATCTCCTCCTTTCT
GATAGTCTTAGTGTCCTACATGTTGATTTTGTTAGCTATATGTCAAATGCATTCTGCAGA
GGGCAGGAAAAAGGCTTTCTCCACATGTGGTTCCCATTTGACAGTGGTGGTTGTGTTCTA
TGGGTCTCTACTCTTCATGTACATGCAGCCCAATTCCACTCACTTCTTTGATACTGATAA
AATGGCTTCTGTGTTTTACACTTTAGTAATCCCCATGCTTAACCCTTTGATTTACAGCTT
AAGAAACGAAGAGGTGAAAAATGCCTTCTATAAGCTCTTTGAGAATGTTTAAACGAATTC
GGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTG
CTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCAT
AACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAA
ACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCT
TTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTT
ATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAA
TGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATA
GCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTA
ATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGT
TTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATG
CTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATT
CCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTA
AAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGC
GGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAA
GTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGC
CGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTT
ACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACT
GCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCAC
AACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATA
CCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTA
TTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCG
GATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGAT
AAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGT
AAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGA
AATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACC
GACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAG
AATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACC
GTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACA
AAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGT
TTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACC
TGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATC
TCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGC
CCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACT
TATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTG
CTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTA
TCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCA
AACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAA
AAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACG
AAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCC
TTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAAC
CATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTT
GCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGT
TTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGT
ACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAAC
CGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
