Halotag ORF Clone pFN21AB9038

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB9038 Sequence (with vector) Restriction Map

Product ID

FHC03141

Flexi Clone PID

FXC03141

ORF Sequence

DNA sequence (1332 bp)
Protein sequence (444 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB463327]

Gene

KIBB9038

Symbol

TUBB

Alias : CDCBM6, CSCSC1, M40, OK/SW-cl.56, TUBB1, TUBB5

Description

tubulin, beta class I, transcript variant 2

Original Clone ID

fj11446a

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1332 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 444 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS4687.1 7.4e-193 100.0 TUBB CCDS7039.1 5.5e-189 97.7 TUBB4B CCDS12168.1 1.4e-186 96.8 TUBB4A CCDS4485.1 4.7e-186 95.7 TUBB2B CCDS4484.1 8.7e-185 95.3 TUBB2A The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

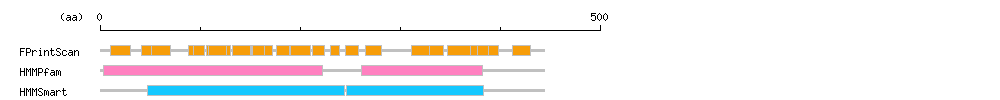

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition FPrintScan IPR000217 10 30 PR01161 Tubulin IPR002453 41 58 PR01163 Beta tubulin IPR000217 51 70 PR01161 Tubulin IPR002453 88 99 PR01163 Beta tubulin IPR000217 93 104 PR01161 Tubulin IPR000217 106 130 PR01161 Tubulin IPR002453 108 126 PR01163 Beta tubulin IPR000217 132 150 PR01161 Tubulin IPR000217 151 172 PR01161 Tubulin IPR002453 152 164 PR01163 Beta tubulin IPR000217 176 189 PR01161 Tubulin IPR000217 190 210 PR01161 Tubulin IPR002453 212 224 PR01163 Beta tubulin IPR002453 230 239 PR01163 Beta tubulin IPR002453 245 258 PR01163 Beta tubulin IPR002453 265 281 PR01163 Beta tubulin IPR002453 311 329 PR01163 Beta tubulin IPR002453 329 343 PR01163 Beta tubulin IPR002453 347 370 PR01163 Beta tubulin IPR000217 370 398 PR01161 Tubulin IPR002453 377 388 PR01163 Beta tubulin IPR002453 412 430 PR01163 Beta tubulin HMMPfam IPR003008 3 222 PF00091 Tubulin/FtsZ IPR018316 261 382 PF03953 Tubulin/FtsZ HMMSmart IPR003008 47 244 SM00864 Tubulin/FtsZ IPR018316 246 383 SM00865 Tubulin/FtsZ
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_821133 444 156610,191130,615771 100.0 100.0 NP_006079 445 602660 97.7 99.8 NP_006078 444 602662 96.8 99.8 NP_001276058 444 602662 96.8 99.8 NP_001276056 489 602662 96.8 99.8 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB9038 Download

>KIBB9038  1332 bp
ATGAGGGAAATCGTGCACATCCAGGCTGGTCAGTGTGGCAACCAGATCGGTGCCAAGTTC
TGGGAGGTGATCAGTGATGAACATGGCATCGACCCCACCGGCACCTACCACGGGGACAGC
GACCTGCAGCTGGACCGCATCTCTGTGTACTACAATGAAGCCACAGGTGGCAAATATGTT
CCTCGTGCCATCCTGGTGGATCTAGAACCTGGGACCATGGACTCTGTTCGCTCAGGTCCT
TTTGGCCAGATCTTTAGACCAGACAACTTTGTATTTGGTCAGTCTGGGGCAGGTAACAAC
TGGGCCAAAGGCCACTACACAGAGGGCGCCGAGCTGGTTGATTCTGTCCTGGATGTGGTA
CGGAAGGAGGCAGAGAGCTGTGACTGCCTGCAGGGCTTCCAGCTGACCCACTCACTGGGC
GGGGGCACAGGCTCTGGAATGGGCACTCTCCTTATCAGCAAGATCCGAGAAGAATACCCT
GATCGCATCATGAATACCTTCAGTGTGGTGCCTTCACCCAAAGTGTCTGACACCGTGGTC
GAGCCCTACAATGCCACCCTCTCCGTCCATCAGTTGGTAGAGAATACTGATGAGACCTAT
TGCATTGACAACGAGGCCCTCTATGATATCTGCTTCCGCACTCTGAAGCTGACCACACCA
ACCTACGGGGATCTGAACCACCTTGTCTCAGCCACCATGAGTGGTGTCACCACCTGCCTC
CGTTTCCCTGGCCAGCTCAATGCTGACCTCCGCAAGTTGGCAGTCAACATGGTCCCCTTC
CCACGTCTCCATTTCTTTATGCCTGGCTTTGCCCCTCTCACCAGCCGTGGAAGCCAGCAG
TATCGAGCTCTCACAGTGCCGGAACTCACCCAGCAGGTCTTCGATGCCAAGAACATGATG
GCTGCCTGTGACCCCCGCCACGGCCGATACCTCACCGTGGCTGCTGTCTTCCGTGGTCGG
ATGTCCATGAAGGAGGTCGATGAGCAGATGCTTAACGTGCAGAACAAGAACAGCAGCTAC
TTTGTGGAATGGATCCCCAACAATGTCAAGACAGCCGTCTGTGACATCCCACCTCGTGGC
CTCAAGATGGCAGTCACCTTCATTGGCAATAGCACAGCCATCCAGGAGCTCTTCAAGCGC
ATCTCGGAGCAGTTCACTGCCATGTTCCGCCGGAAGGCCTTCCTCCACTGGTACACAGGC
GAGGGCATGGACGAGATGGAGTTCACCGAGGCTGAGAGCAACATGAACGACCTCGTCTCT
GAGTATCAGCAGTACCAGGATGCCACCGCAGAAGAGGAGGAGGATTTCGGTGAGGAGGCC
GAAGAGGAGGCC

ORF Protein

Cloned ORF protein sequence for pFN21AB9038 Download

>KIBB9038  444 aa
MREIVHIQAGQCGNQIGAKFWEVISDEHGIDPTGTYHGDSDLQLDRISVYYNEATGGKYV
PRAILVDLEPGTMDSVRSGPFGQIFRPDNFVFGQSGAGNNWAKGHYTEGAELVDSVLDVV
RKEAESCDCLQGFQLTHSLGGGTGSGMGTLLISKIREEYPDRIMNTFSVVPSPKVSDTVV
EPYNATLSVHQLVENTDETYCIDNEALYDICFRTLKLTTPTYGDLNHLVSATMSGVTTCL
RFPGQLNADLRKLAVNMVPFPRLHFFMPGFAPLTSRGSQQYRALTVPELTQQVFDAKNMM
AACDPRHGRYLTVAAVFRGRMSMKEVDEQMLNVQNKNSSYFVEWIPNNVKTAVCDIPPRG
LKMAVTFIGNSTAIQELFKRISEQFTAMFRRKAFLHWYTGEGMDEMEFTEAESNMNDLVS
EYQQYQDATAEEEEDFGEEAEEEA

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB9038 Download

>pFN21AB9038  6037 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGAGGGAAATCGTGCACATCCAGGCTGGTCAGTG
TGGCAACCAGATCGGTGCCAAGTTCTGGGAGGTGATCAGTGATGAACATGGCATCGACCC
CACCGGCACCTACCACGGGGACAGCGACCTGCAGCTGGACCGCATCTCTGTGTACTACAA
TGAAGCCACAGGTGGCAAATATGTTCCTCGTGCCATCCTGGTGGATCTAGAACCTGGGAC
CATGGACTCTGTTCGCTCAGGTCCTTTTGGCCAGATCTTTAGACCAGACAACTTTGTATT
TGGTCAGTCTGGGGCAGGTAACAACTGGGCCAAAGGCCACTACACAGAGGGCGCCGAGCT
GGTTGATTCTGTCCTGGATGTGGTACGGAAGGAGGCAGAGAGCTGTGACTGCCTGCAGGG
CTTCCAGCTGACCCACTCACTGGGCGGGGGCACAGGCTCTGGAATGGGCACTCTCCTTAT
CAGCAAGATCCGAGAAGAATACCCTGATCGCATCATGAATACCTTCAGTGTGGTGCCTTC
ACCCAAAGTGTCTGACACCGTGGTCGAGCCCTACAATGCCACCCTCTCCGTCCATCAGTT
GGTAGAGAATACTGATGAGACCTATTGCATTGACAACGAGGCCCTCTATGATATCTGCTT
CCGCACTCTGAAGCTGACCACACCAACCTACGGGGATCTGAACCACCTTGTCTCAGCCAC
CATGAGTGGTGTCACCACCTGCCTCCGTTTCCCTGGCCAGCTCAATGCTGACCTCCGCAA
GTTGGCAGTCAACATGGTCCCCTTCCCACGTCTCCATTTCTTTATGCCTGGCTTTGCCCC
TCTCACCAGCCGTGGAAGCCAGCAGTATCGAGCTCTCACAGTGCCGGAACTCACCCAGCA
GGTCTTCGATGCCAAGAACATGATGGCTGCCTGTGACCCCCGCCACGGCCGATACCTCAC
CGTGGCTGCTGTCTTCCGTGGTCGGATGTCCATGAAGGAGGTCGATGAGCAGATGCTTAA
CGTGCAGAACAAGAACAGCAGCTACTTTGTGGAATGGATCCCCAACAATGTCAAGACAGC
CGTCTGTGACATCCCACCTCGTGGCCTCAAGATGGCAGTCACCTTCATTGGCAATAGCAC
AGCCATCCAGGAGCTCTTCAAGCGCATCTCGGAGCAGTTCACTGCCATGTTCCGCCGGAA
GGCCTTCCTCCACTGGTACACAGGCGAGGGCATGGACGAGATGGAGTTCACCGAGGCTGA
GAGCAACATGAACGACCTCGTCTCTGAGTATCAGCAGTACCAGGATGCCACCGCAGAAGA
GGAGGAGGATTTCGGTGAGGAGGCCGAAGAGGAGGCCGTTTAAACGAATTCGGGCTCGGT
ACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGGCTGCTAACAAAG
CCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAGCATAACCCCTTG
GGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGACAAACCACAACT
AGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATTGCTTTATTTGTA
ACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCATTTTATGTTTCAG
GTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTACAAATGTGGTAAA
ATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAGATAGCCCAGTAG
CTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTACGTAATGGTTTCT
TAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATTTGTTTATTTTTC
TAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAAATGCTTCAATAA
TATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTTATTCCCTTTTTT
GCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAAGTAAAAGATGCT
GAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAACAGCGGTAAGATC
CTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTCAAAGTTCTGCTA
TGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGTCGCCGCATACAC
TATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCATCTTACGGATGGC
ATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAACACTGCGGCCAAC
TTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTGCACAACATGGGG
GATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCCATACCAAACGAC
GAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAACTATTAACTGGC
GAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAGGCGGATAAAGTT
GCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCTGATAAATCTGGA
GCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGATGGTAAGCCCTCC
CGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAACGAAATAGACAG
ATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATGACCGACCAAGCG
ACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCACAGAATCAGGGG
ATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGAACCGTAAAAAGG
CCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATCACAAAAATCGAC
GCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGGCGTTTCCCCCTG
GAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGATACCTGTCCGCCT
TTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGTATCTCAGTTCGG
TGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTCAGCCCGACCGCT
GCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACGACTTATCGCCAC
TGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCGGTGCTACAGAGT
TCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTGGTATCTGCGCTC
TGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCGGCAAACAAACCA
CCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCAGAAAAAAAGGAT
TTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGAACGAAAACTCAC
GTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGATCCTTTTATAGT
CCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGAAACCATGAAAAA
TGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTGGTTGCATAGGTA
TTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGTGGTTTGTTGCCA
TTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTGCGTACAATTAAG
GGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATAAACCGCAGTACT
CCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
