GTF2H1 ORF clone pFN21AB5104

KOP
KOP HaloTag ORF List Flexi search

Halotag ORF Clone pFN21AB5104

How to Order Order Information

Clone info.

Species

human

Clone Name

pFN21AB5104 Sequence (with vector) Restriction Map

Product ID

FHC01472

Flexi Clone PID

FXC01472

ORF Sequence

DNA sequence (1644 bp)
Protein sequence (548 aa)

Linker Type

Flexi type

more Linker info

Vector Type

pFN21A Vector sequence

Restriction Map

Cloning Site

SgfI-PmeI

GenBank Accession

ORF sequence is derived from [AB385040]

Gene

KIBB5104

Symbol

GTF2H1

Alias : BTF2, P62, TFB1, TFIIH

Description

general transcription factor IIH, polypeptide 1, 62kDa, transcript variant 1

Original Clone ID

ek00055

Quality control data of this clone

Description

Characterization of the cloned ORF

5'-end(FN21F1)

3'-end(F1KR)

Agarose gel electrophoretic image

5'/3'-end sequences (chromatogram)

N-terminal HaloTag-fusions expressed in HEK293 visualized by HaloTag TMR ligand

Cell image

SDS-PAGE

Features of the cloned ORF sequence

Description

Length: 1644 bp
Restriction map A Restriction map B
Genomic Structure

Features of the protein sequence

Description

Length: 548 aa
Result of homology search against CCDS protein database ( FASTA output, Multiple alignment) Entry Exp ID% symbol CCDS7838.1 1.6e-214 100.0 GTF2H1 The numbers on the left and right sides of a black line in the graphical overview indicate the lengths (in amino acid residues) of the non-homologous N-terminal and C-terminal portions flanking the homologous region (indicated by the black line), respectively.

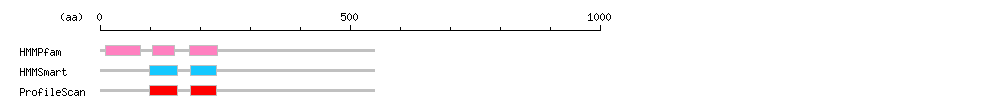

Result of motif / domain search (InterProScan and SOSUI) [ zoom out (x2) ]
Result of InterProScan Search method interpro_ID From To Entry Definition HMMPfam IPR013876 10 81 PF08567 TFIIH p62 subunit IPR005607 104 148 PF03909 BSD IPR005607 179 235 PF03909 BSD HMMSmart IPR005607 99 154 SM00751 BSD IPR005607 180 232 SM00751 BSD ProfileScan IPR005607 99 154 PS50858 BSD IPR005607 180 232 PS50858 BSD
Result of homology search against disease genes in OMIM database(FASTA output, Multiple alignment) H_id H_len (aa) OMIM_No. ID (%) Q_ali/Q_len (%) NP_005307 548 189972 100.0 100.0 XP_006718271 548 189972 100.0 100.0 NP_001135779 548 189972 100.0 100.0 Inquiries or Suggestions ? Send a message to flexiclone AT kazusagt.com

ORF DNA

Cloned ORF Nucleotide sequence for pFN21AB5104 Download

>KIBB5104  1644 bp
ATGGCAACCTCATCTGAAGAAGTTTTGCTGATTGTAAAGAAAGTGCGTCAAAAGAAGCAG
GATGGAGCTCTGTACCTCATGGCAGAAAGAATTGCTTGGGCACCTGAAGGCAAAGATAGA
TTTACAATCAGCCATATGTATGCAGATATTAAATGCCAGAAAATTAGTCCAGAAGGAAAA
GCTAAAATTCAGCTTCAGCTGGTCCTACATGCAGGGGACACAACTAACTTCCATTTTTCC
AATGAAAGCACAGCAGTGAAAGAGCGAGATGCAGTAAAAGACCTTCTTCAGCAGCTGCTG
CCCAAATTCAAGAGGAAAGCAAATAAAGAACTGGAAGAGAAGAACAGAATGCTGCAAGAA
GATCCTGTTTTGTTTCAGCTTTATAAAGACCTTGTTGTGAGTCAAGTGATCAGTGCTGAG
GAATTCTGGGCCAATCGTTTAAATGTGAATGCAACAGATAGTTCTTCCACATCCAATCAT
AAGCAGGATGTTGGCATTTCTGCTGCATTTCTGGCTGATGTCCGGCCCCAAACTGATGGC
TGTAACGGTCTAAGATATAATTTAACTTCTGATATCATTGAGTCCATATTTAGGACCTAT
CCAGCAGTAAAAATGAAATATGCAGAAAATGTTCCCCACAACATGACAGAGAAGGAATTC
TGGACACGTTTTTTCCAGTCCCATTATTTTCACAGGGATCGGCTGAATACAGGGTCAAAG
GATCTCTTTGCAGAATGTGCCAAAATAGATGAAAAAGGCCTAAAAACAATGGTTTCATTA
GGAGTGAAAAACCCACTACTAGATTTAACAGCTTTGGAAGATAAACCATTAGATGAGGGC
TATGGCATTTCCTCTGTGCCATCTGCTTCCAATTCTAAATCCATAAAAGAGAATAGTAAT
GCTGCCATCATCAAGAGATTTAACCATCACAGTGCCATGGTCCTGGCAGCTGGACTCAGA
AAACAAGAAGCACAAAATGAACAAACTAGTGAGCCCAGCAACATGGATGGAAATTCCGGA
GATGCAGACTGCTTTCAGCCAGCAGTCAAAAGGGCGAAATTACAAGAGTCCATTGAATAT
GAAGACTTGGGGAAAAATAATTCTGTAAAAACGATTGCACTAAACCTCAAGAAGTCAGAT
AGGTATTATCATGGTCCAACTCCAATCCAGTCACTACAGTATGCAACAAGTCAGGACATT
ATTAATTCTTTTCAAAGTATTAGACAAGAAATGGAAGCTTATACACCCAAGTTAACTCAG
GTTCTCTCAAGTAGTGCTGCCAGTAGTACCATCACAGCACTGTCACCTGGAGGGGCACTT
ATGCAGGGAGGAACACAGCAAGCCATAAACCAGATGGTGCCAAATGATATTCAATCTGAA
TTGAAACACTTATATGTAGCTGTTGGAGAACTTCTACGACATTTCTGGTCCTGCTTTCCT
GTTAATACGCCATTCCTAGAAGAAAAGGTAGTGAAAATGAAAAGTAATTTGGAACGATTC
CAAGTTACGAAGCTCTGTCCATTCCAAGAAAAGATTCGGAGACAGTATTTAAGCACAAAT
TTGGTAAGTCACATAGAAGAGATGCTCCAGACAGCCTACAACAAGCTCCACACATGGCAG
TCACGGCGTCTGATGAAGAAAACG

ORF Protein

Cloned ORF protein sequence for pFN21AB5104 Download

>KIBB5104  548 aa
MATSSEEVLLIVKKVRQKKQDGALYLMAERIAWAPEGKDRFTISHMYADIKCQKISPEGK
AKIQLQLVLHAGDTTNFHFSNESTAVKERDAVKDLLQQLLPKFKRKANKELEEKNRMLQE
DPVLFQLYKDLVVSQVISAEEFWANRLNVNATDSSSTSNHKQDVGISAAFLADVRPQTDG
CNGLRYNLTSDIIESIFRTYPAVKMKYAENVPHNMTEKEFWTRFFQSHYFHRDRLNTGSK
DLFAECAKIDEKGLKTMVSLGVKNPLLDLTALEDKPLDEGYGISSVPSASNSKSIKENSN
AAIIKRFNHHSAMVLAAGLRKQEAQNEQTSEPSNMDGNSGDADCFQPAVKRAKLQESIEY
EDLGKNNSVKTIALNLKKSDRYYHGPTPIQSLQYATSQDIINSFQSIRQEMEAYTPKLTQ
VLSSSAASSTITALSPGGALMQGGTQQAINQMVPNDIQSELKHLYVAVGELLRHFWSCFP
VNTPFLEEKVVKMKSNLERFQVTKLCPFQEKIRRQYLSTNLVSHIEEMLQTAYNKLHTWQ
SRRLMKKT

ORF+Vector

Nucleotide Sequence (with vector) for pFN21AB5104 Download

>pFN21AB5104  6349 bp
TCAATATTGGCCATTAGCCATATTATTCATTGGTTATATAGCATAAATCAATATTGGCTA
TTGGCCATTGCATACGTTGTATCTATATCATAATATGTACATTTATATTGGCTCATGTCC
AATATGACCGCCATGTTGGCATTGATTATTGACTAGTTATTAATAGTAATCAATTACGGG
GTCATTAGTTCATAGCCCATATATGGAGTTCCGCGTTACATAACTTACGGTAAATGGCCC
GCCTGGCTGACCGCCCAACGACCCCCGCCCATTGACGTCAATAATGACGTATGTTCCCAT
AGTAACGCCAATAGGGACTTTCCATTGACGTCAATGGGTGGAGTATTTACGGTAAACTGC
CCACTTGGCAGTACATCAAGTGTATCATATGCCAAGTCCGCCCCCTATTGACGTCAATGA
CGGTAAATGGCCCGCCTGGCATTATGCCCAGTACATGACCTTACGGGACTTTCCTACTTG
GCAGTACATCTACGTATTAGTCATCGCTATTACCATGGTGATGCGGTTTTGGCAGTACAC
CAATGGGCGTGGATAGCGGTTTGACTCACGGGGATTTCCAAGTCTCCACCCCATTGACGT
CAATGGGAGTTTGTTTTGGCACCAAAATCAACGGGACTTTCCAAAATGTCGTAATAACCC
CGCCCCGTTGACGCAAATGGGCGGTAGGCGTGTACGGTGGGAGGTCTATATAAGCAGAGC
TGGTTTAGTGAACCGTCAGATCACTAGAAGCTTTATTGCGGTAGTTTATCACAGTTAAAT
TGCTAACGCAGTCAGTGCTTCTGACACAACAGTCTCGAACTTAAGCTGCAGAAGTTGGTC
GTGAGGCACTGGGCAGGTAAGTATCAAGGTTACAAGACAGGTTTAAGGAGACCAATAGAA
ACTGGGCTTGTCGAGACAGAGAAGACTCTTGCGTTTCTGATAGGCACCTATTGGTCTTAC
TGACATCCACTTTGCCTTTCTCTCCACAGGTGTCCACTCCCAGTTCAATTACAGCTCTTA
AGGCTAGAGTATTAATACGACTCACTATAGGGCTAGCAAAGCCACCATGGCAGAAATCGG
TACTGGCTTTCCATTCGACCCCCATTATGTGGAAGTCCTGGGCGAGCGCATGCACTACGT
CGATGTTGGTCCGCGCGATGGCACCCCTGTGCTGTTCCTGCACGGTAACCCGACCTCCTC
CTACGTGTGGCGCAACATCATCCCGCATGTTGCACCGACCCATCGCTGCATTGCTCCAGA
CCTGATCGGTATGGGCAAATCCGACAAACCAGACCTGGGTTATTTCTTCGACGACCACGT
CCGCTTCATGGATGCCTTCATCGAAGCCCTGGGTCTGGAAGAGGTCGTCCTGGTCATTCA
CGACTGGGGCTCCGCTCTGGGTTTCCACTGGGCCAAGCGCAATCCAGAGCGCGTCAAAGG
TATTGCATTTATGGAGTTCATCCGCCCTATCCCGACCTGGGACGAATGGCCAGAATTTGC
CCGCGAGACCTTCCAGGCCTTCCGCACCACCGACGTCGGCCGCAAGCTGATCATCGATCA
GAACGTTTTTATCGAGGGTACGCTGCCGATGGGTGTCGTCCGCCCGCTGACTGAAGTCGA
GATGGACCATTACCGCGAGCCGTTCCTGAATCCTGTTGACCGCGAGCCACTGTGGCGCTT
CCCAAACGAGCTGCCAATCGCCGGTGAGCCAGCGAACATCGTCGCGCTGGTCGAAGAATA
CATGGACTGGCTGCACCAGTCCCCTGTCCCGAAGCTGCTGTTCTGGGGCACCCCAGGCGT
TCTGATCCCACCGGCCGAAGCCGCTCGCCTGGCCAAAAGCCTGCCTAACTGCAAGGCTGT
GGACATCGGCCCGGGTCTGAATCTGCTGCAAGAAGACAACCCGGACCTGATCGGCAGCGA
GATCGCGCGCTGGCTGTCGACGCTCGAGATTTCCGGCGAGCCAACCACTGAGGATCTGTA
CTTTCAGAGCGATAACGCGATCGCCATGGCAACCTCATCTGAAGAAGTTTTGCTGATTGT
AAAGAAAGTGCGTCAAAAGAAGCAGGATGGAGCTCTGTACCTCATGGCAGAAAGAATTGC
TTGGGCACCTGAAGGCAAAGATAGATTTACAATCAGCCATATGTATGCAGATATTAAATG
CCAGAAAATTAGTCCAGAAGGAAAAGCTAAAATTCAGCTTCAGCTGGTCCTACATGCAGG
GGACACAACTAACTTCCATTTTTCCAATGAAAGCACAGCAGTGAAAGAGCGAGATGCAGT
AAAAGACCTTCTTCAGCAGCTGCTGCCCAAATTCAAGAGGAAAGCAAATAAAGAACTGGA
AGAGAAGAACAGAATGCTGCAAGAAGATCCTGTTTTGTTTCAGCTTTATAAAGACCTTGT
TGTGAGTCAAGTGATCAGTGCTGAGGAATTCTGGGCCAATCGTTTAAATGTGAATGCAAC
AGATAGTTCTTCCACATCCAATCATAAGCAGGATGTTGGCATTTCTGCTGCATTTCTGGC
TGATGTCCGGCCCCAAACTGATGGCTGTAACGGTCTAAGATATAATTTAACTTCTGATAT
CATTGAGTCCATATTTAGGACCTATCCAGCAGTAAAAATGAAATATGCAGAAAATGTTCC
CCACAACATGACAGAGAAGGAATTCTGGACACGTTTTTTCCAGTCCCATTATTTTCACAG
GGATCGGCTGAATACAGGGTCAAAGGATCTCTTTGCAGAATGTGCCAAAATAGATGAAAA
AGGCCTAAAAACAATGGTTTCATTAGGAGTGAAAAACCCACTACTAGATTTAACAGCTTT
GGAAGATAAACCATTAGATGAGGGCTATGGCATTTCCTCTGTGCCATCTGCTTCCAATTC
TAAATCCATAAAAGAGAATAGTAATGCTGCCATCATCAAGAGATTTAACCATCACAGTGC
CATGGTCCTGGCAGCTGGACTCAGAAAACAAGAAGCACAAAATGAACAAACTAGTGAGCC
CAGCAACATGGATGGAAATTCCGGAGATGCAGACTGCTTTCAGCCAGCAGTCAAAAGGGC
GAAATTACAAGAGTCCATTGAATATGAAGACTTGGGGAAAAATAATTCTGTAAAAACGAT
TGCACTAAACCTCAAGAAGTCAGATAGGTATTATCATGGTCCAACTCCAATCCAGTCACT
ACAGTATGCAACAAGTCAGGACATTATTAATTCTTTTCAAAGTATTAGACAAGAAATGGA
AGCTTATACACCCAAGTTAACTCAGGTTCTCTCAAGTAGTGCTGCCAGTAGTACCATCAC
AGCACTGTCACCTGGAGGGGCACTTATGCAGGGAGGAACACAGCAAGCCATAAACCAGAT
GGTGCCAAATGATATTCAATCTGAATTGAAACACTTATATGTAGCTGTTGGAGAACTTCT
ACGACATTTCTGGTCCTGCTTTCCTGTTAATACGCCATTCCTAGAAGAAAAGGTAGTGAA
AATGAAAAGTAATTTGGAACGATTCCAAGTTACGAAGCTCTGTCCATTCCAAGAAAAGAT
TCGGAGACAGTATTTAAGCACAAATTTGGTAAGTCACATAGAAGAGATGCTCCAGACAGC
CTACAACAAGCTCCACACATGGCAGTCACGGCGTCTGATGAAGAAAACGGTTTAAACGAA
TTCGGGCTCGGTACCCGGGGATCCTCTAGAGTCGACCTGCAGGCATGCAAGCTGATCCGG
CTGCTAACAAAGCCCGAAAGGAAGCTGAGTTGGCTGCTGCCACCGCTGAGCAATAACTAG
CATAACCCCTTGGGGCGGCCGCTTCGAGCAGACATGATAAGATACATTGATGAGTTTGGA
CAAACCACAACTAGAATGCAGTGAAAAAAATGCTTTATTTGTGAAATTTGTGATGCTATT
GCTTTATTTGTAACCATTATAAGCTGCAATAAACAAGTTAACAACAACAATTGCATTCAT
TTTATGTTTCAGGTTCAGGGGGAGATGTGGGAGGTTTTTTTAAGCAAGTAAAACCTCTAC
AAATGTGGTAAAATCGAATTCTAATGGATCCTCTTTGCGCTTGCGTTTTCCCTTGTCCAG
ATAGCCCAGTAGCTGACATTCATCCGGGGTCAGCACCGTTTCTGCGGACTGGCTTTCTAC
GTAATGGTTTCTTAGACGTCAGGTGGCACTTTTCGGGGAAATGTGCGCGGAACCCCTATT
TGTTTATTTTTCTAAATACATTCAAATATGTATCCGCTCATGAGACAATAACCCTGATAA
ATGCTTCAATAATATTGAAAAAGGAAGAGTATGAGTATTCAACATTTCCGTGTCGCCCTT
ATTCCCTTTTTTGCGGCATTTTGCCTTCCTGTTTTTGCTCACCCAGAAACGCTGGTGAAA
GTAAAAGATGCTGAAGATCAGTTGGGTGCACGAGTGGGTTACATCGAACTGGATCTCAAC
AGCGGTAAGATCCTTGAGAGTTTTCGCCCCGAAGAACGTTTTCCAATGATGAGCACTTTC
AAAGTTCTGCTATGTGGCGCGGTATTATCCCGTATTGACGCCGGGCAAGAGCAACTCGGT
CGCCGCATACACTATTCTCAGAATGACTTGGTTGAGTACTCACCAGTCACAGAAAAGCAT
CTTACGGATGGCATGACAGTAAGAGAATTATGCAGTGCTGCCATAACCATGAGTGATAAC
ACTGCGGCCAACTTACTTCTGACAACTATCGGAGGACCGAAGGAGCTAACCGCTTTTTTG
CACAACATGGGGGATCATGTAACTCGCCTTGATCGTTGGGAACCGGAGCTGAATGAAGCC
ATACCAAACGACGAGCGTGACACCACGATGCCTGTAGCAATGGCAACAACGTTGCGCAAA
CTATTAACTGGCGAACTACTTACTCTAGCTTCCCGGCAACAATTAATAGACTGGATGGAG
GCGGATAAAGTTGCAGGACCACTTCTGCGCTCGGCCCTTCCGGCTGGCTGGTTTATTGCT
GATAAATCTGGAGCCGGTGAGCGTGGGTCTCGCGGTATCATTGCAGCACTGGGGCCAGAT
GGTAAGCCCTCCCGTATCGTAGTTATCTACACGACGGGGAGTCAGGCAACTATGGATGAA
CGAAATAGACAGATCGCTGAGATAGGTGCCTCACTGATTAAGCATTGGTAATTCGAAATG
ACCGACCAAGCGACGCCCAACCGGTATCAGCTCACTCAAAGGCGGTAATACGGTTATCCA
CAGAATCAGGGGATAACGCAGGAAAGAACATGTGAGCAAAAGGCCAGCAAAAGGCCAGGA
ACCGTAAAAAGGCCGCGTTGCTGGCGTTTTTCCATAGGCTCCGCCCCCCTGACGAGCATC
ACAAAAATCGACGCTCAAGTCAGAGGTGGCGAAACCCGACAGGACTATAAAGATACCAGG
CGTTTCCCCCTGGAAGCTCCCTCGTGCGCTCTCCTGTTCCGACCCTGCCGCTTACCGGAT
ACCTGTCCGCCTTTCTCCCTTCGGGAAGCGTGGCGCTTTCTCATAGCTCACGCTGTAGGT
ATCTCAGTTCGGTGTAGGTCGTTCGCTCCAAGCTGGGCTGTGTGCACGAACCCCCCGTTC
AGCCCGACCGCTGCGCCTTATCCGGTAACTATCGTCTTGAGTCCAACCCGGTAAGACACG
ACTTATCGCCACTGGCAGCAGCCACTGGTAACAGGATTAGCAGAGCGAGGTATGTAGGCG
GTGCTACAGAGTTCTTGAAGTGGTGGCCTAACTACGGCTACACTAGAAGGACAGTATTTG
GTATCTGCGCTCTGCTGAAGCCAGTTACCTTCGGAAAAAGAGTTGGTAGCTCTTGATCCG
GCAAACAAACCACCGCTGGTAGCGGTGGTTTTTTTGTTTGCAAGCAGCAGATTACGCGCA
GAAAAAAAGGATTTCAAGAAGATCCTTTGATCTTTTCTACGGGGTCTGACGCTCAGTGGA
ACGAAAACTCACGTTAAGGGATTTTGGTCATGAGATTATCAAAAAGGATCTTCACCTAGA
TCCTTTTATAGTCCGGAAATACAGGAACGCACGCTGGATGGCCCTTCGCTGGGATGGTGA
AACCATGAAAAATGGCAGCTTCAGTGGATTAAGTGGGGGTAATGTGGCCTGTACCCTCTG
GTTGCATAGGTATTCATACGGTTAAAATTTATCAGGCGCGATTGCGGCAGTTTTTCGGGT
GGTTTGTTGCCATTTTTACCTGTCTGCTGCCGTGATCGCGCTGAACGCGTTTTAGCGGTG
CGTACAATTAAGGGATTATGGTAAATCCACTTACTGTCTGCCCTCGTAGCCATCGAGATA
AACCGCAGTACTCCGGCCACGATGCGTCCGGCGTAGAGGATCGAGATCT
