Predicted genomic structure of KIBB4674

Clone name	:	KIBB4674
Sequence length of the cDNA	:	1176 bp
Corresponding genomic sequence	:	gi568815592f_80006797
Length of the corresponding genomic region	:	237108 bp
Chromosome No.	:	6
Coding region of KIBB4674	:	1..1176

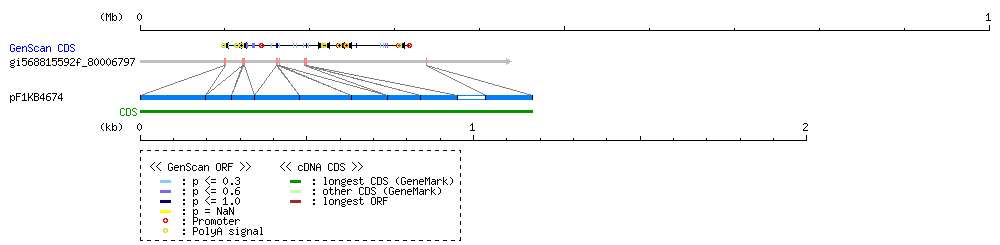

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 196 1 66 99898 100093 GT..AG 20657 100

2 197 274 66 92 120751 120828 GT..AG 1536 100

3 275 343 92 115 122365 122433 GT..AG 38448 100

4 344 477 115 159 160882 161015 GT..AG 1063 100

5 478 633 160 211 162079 162234 GT..AG 2251 100

6 634 742 212 248 164486 164594 GT..AG 29543 100

7 743 840 248 280 194138 194235 GT..AG 2070 100

8 841 951 281 317 196306 196416 GT..TG 140448 100

9 952 1035 318 345 No hit -

10 1036 1176 346 392 336865 337005 - 100

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	196	1	66	99898	100093	GT..AG	20657	100
2	197	274	66	92	120751	120828	GT..AG	1536	100
3	275	343	92	115	122365	122433	GT..AG	38448	100
4	344	477	115	159	160882	161015	GT..AG	1063	100
5	478	633	160	211	162079	162234	GT..AG	2251	100
6	634	742	212	248	164486	164594	GT..AG	29543	100
7	743	840	248	280	194138	194235	GT..AG	2070	100
8	841	951	281	317	196306	196416	GT..TG	140448	100
9	952	1035	318	345	No hit		-
10	1036	1176	346	392	336865	337005	-		100
