Predicted genomic structure of KIBB7752

Clone name	:	KIBB7752
Sequence length of the cDNA	:	1470 bp
Corresponding genomic sequence	:	gi568815581f_39974489
Length of the corresponding genomic region	:	18891 bp
Chromosome No.	:	17
Coding region of KIBB7752	:	1..1470

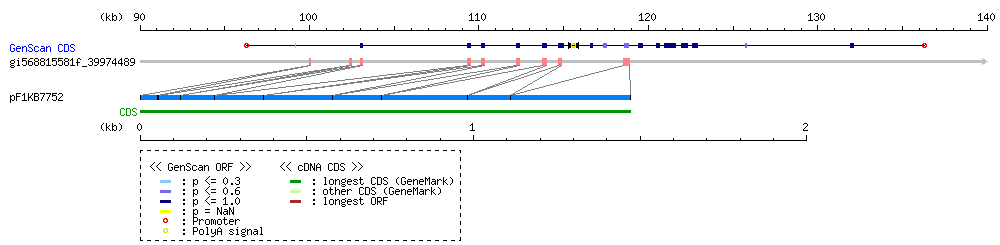

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 53 1 18 100001 100053 GT..AG 2329 100

2 54 121 18 41 102383 102450 GT..AG 569 100

3 122 222 41 74 103020 103120 GT..AG 6226 100

4 223 370 75 124 109347 109494 GT..AG 627 100

5 371 576 124 192 110122 110327 GT..AG 1891 100

6 577 723 193 241 112219 112365 GT..AG 1388 100

7 724 982 242 328 113754 114012 GT..AG 705 100

8 983 1110 328 370 114718 114845 GT..AG 3686 100

9 1111 1470 371 490 118532 118891 - 100

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	53	1	18	100001	100053	GT..AG	2329	100
2	54	121	18	41	102383	102450	GT..AG	569	100
3	122	222	41	74	103020	103120	GT..AG	6226	100
4	223	370	75	124	109347	109494	GT..AG	627	100
5	371	576	124	192	110122	110327	GT..AG	1891	100
6	577	723	193	241	112219	112365	GT..AG	1388	100
7	724	982	242	328	113754	114012	GT..AG	705	100
8	983	1110	328	370	114718	114845	GT..AG	3686	100
9	1111	1470	371	490	118532	118891	-		100
