Predicted genomic structure of KIBB6102

Clone name	:	KIBB6102
Sequence length of the cDNA	:	1842 bp
Corresponding genomic sequence	:	gi568815578f_33506956
Length of the corresponding genomic region	:	44269 bp
Chromosome No.	:	20
Coding region of KIBB6102	:	1..1842

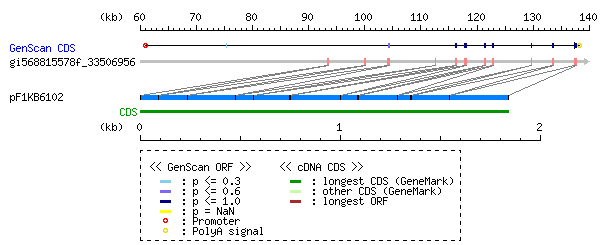

Result of GENSCAN

*-[ zoom out (x2) ]-*

Exon regions are assigned by SIM4

exon# query aa hit intron identity
(%)

start end start end start end boundary bp

1 1 91 1 31 93420 93510 GT..AG 6490 100

2 92 235 31 79 100001 100144 GT..AG 3994 100

3 236 477 79 159 104139 104380 GT..AG 8181 100

4 478 567 160 189 112562 112651 GT..AG 3508 100

5 568 749 190 250 116160 116341 GT..AG 1467 100

6 750 1003 250 335 117809 118062 GT..AG 3332 100

7 1004 1089 335 363 121395 121480 GT..AG 1283 100

8 1090 1285 364 429 122764 122959 GT..AG 6725 100

9 1286 1354 429 452 129685 129753 GT..AG 3632 100

10 1355 1545 452 515 133386 133576 GT..AG 3815 100

11 1546 1842 516 614 137392 137688 - 100

exon#	query		aa		hit		intron		identity (%)
exon#	start	end	start	end	start	end	boundary	bp	identity (%)
1	1	91	1	31	93420	93510	GT..AG	6490	100
2	92	235	31	79	100001	100144	GT..AG	3994	100
3	236	477	79	159	104139	104380	GT..AG	8181	100
4	478	567	160	189	112562	112651	GT..AG	3508	100
5	568	749	190	250	116160	116341	GT..AG	1467	100
6	750	1003	250	335	117809	118062	GT..AG	3332	100
7	1004	1089	335	363	121395	121480	GT..AG	1283	100
8	1090	1285	364	429	122764	122959	GT..AG	6725	100
9	1286	1354	429	452	129685	129753	GT..AG	3632	100
10	1355	1545	452	515	133386	133576	GT..AG	3815	100
11	1546	1842	516	614	137392	137688	-		100
